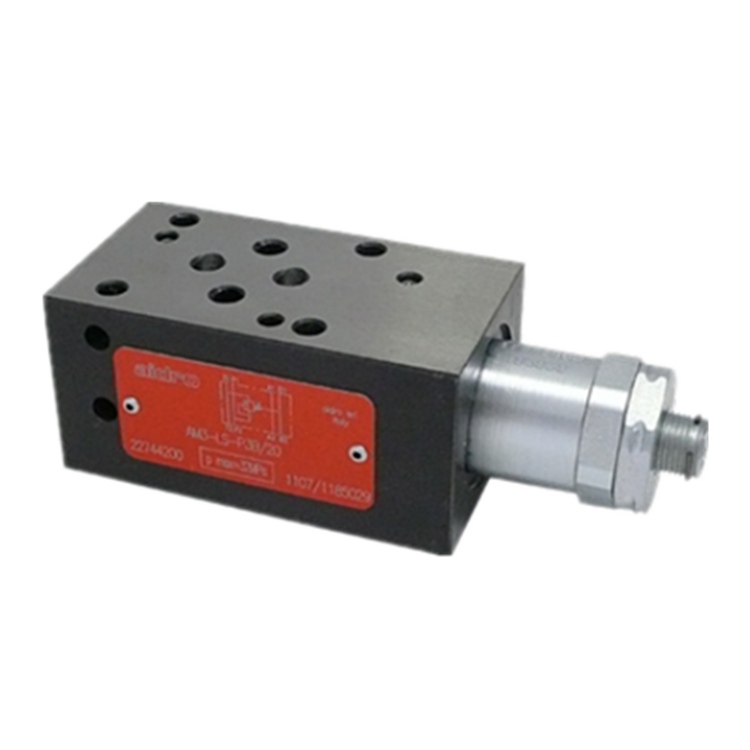

Product name: aidro pressure compensator am3-ls-p3
Product type: am3-ls-p3
Product introduction
Three pressure units are usually used with proportional direction valves to control flow independently of pressure change。
The choice of a precursor pressure is made by using an integrated shuttle valve for control ports a and b。
Performance characteristics
Modular valve three pressure-compensator with load transfer
40 l/min - 32 mpa (320 bar)
Valve am3-ls-p3* meets iso and cetop standards for installation surfaces. Stack height is 40 mm. The seal between the valve and the installed surface is guaranteed by 4 sealed types or 2037 or four rings。
The effective calibration of the Δp of the valve am3-lsp3 is the basic procedure for setting the range of equipment flows. According to the non-linear law, the increase in dp would also increase the value of the compensatory flow through the regulator (the throttle with variable throttles) independently of the system's working pressure。
For example, in a typical application system, consisting of an am3-lsp3 and a scale valve hd3-ps-3rc-xx, the valve dp 1 mpa (10 bar), the flow to the implementer will be between 0 and 16 l/min, the valve Δp 3 mpa (30 bar), and the flow to the implementer will be between 0 and 28 l/min (always unrelated to the working pressure of the system). Therefore, in order to optimize the functioning of the system, it is necessary to regulate the grader of the compensation unit。
