Drv 18 el for hp technik pressure control valves in germany can set the amount of oil by burner
Hp technik has developed and produced internal rodent pumps, machinery and aggregates, as well as heating technology components, mainly for oil and gas, mechanical engineering, ships and the chemical industry. We offer our clients customized solutions from engineering design to installation. The entire hp group works on innovation in new products and production processes。
Main products:
Hp technik pumps and valves
Hp technik filter
Hp technik nozzles
Hp technik power pump team
Hp technik control
Hp technik assembly
Hp technik attachments and parts

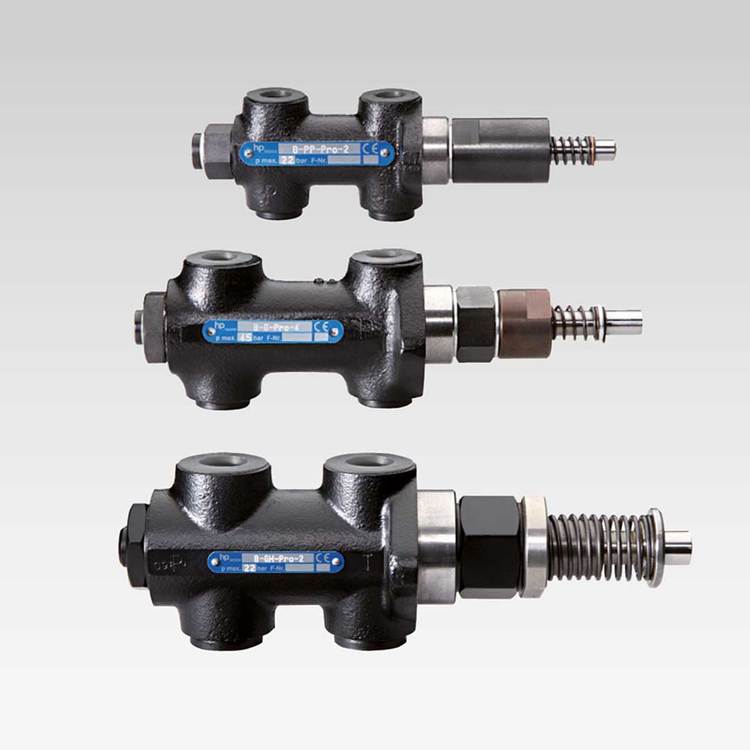

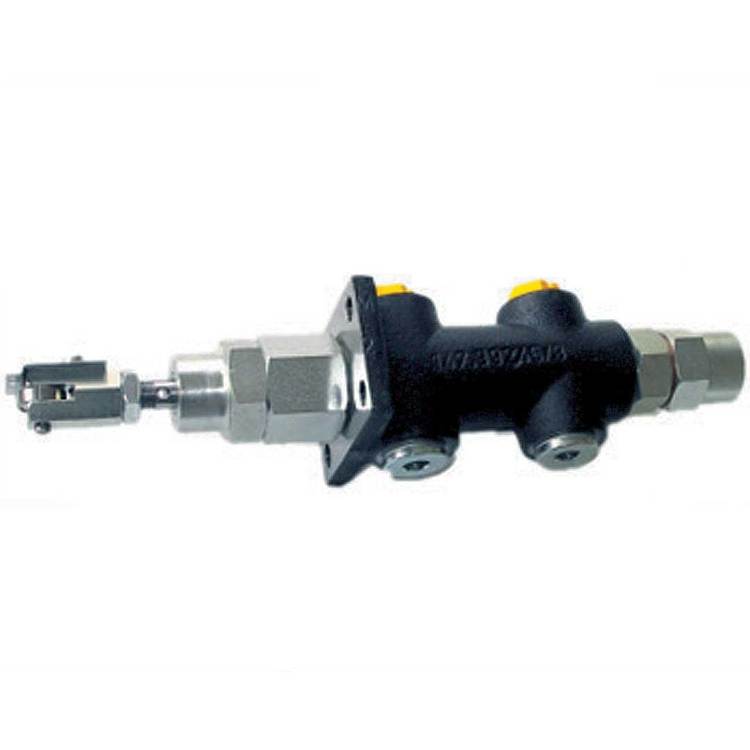

Hp telechnik pressure control valve - with adjustment package
The pressure control valve can be used to set the amount of oil by the burner to meet the corresponding nozzle or burner performance requirements。
Material: the shell is made of hydraulic cast iron (ggg40); the piston, valve, spring is made of hardened steel
Highest fluid medium temperature: 150 °c
Pressure set:

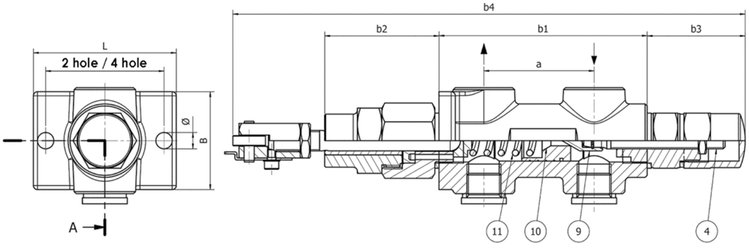

The refuelling flow into the pressure valve pressure cavity is between the piston and the valve cone. Pistols and springs are on the side of oil spills. Depending on the burner's performance, the spring is more or less compressed by the axes that are supported in the fuse. The greater the pressure on the spring, the greater the pressure on the sidewalk, the greater the consumption of the nozzle。
The basic setup is on the calibration screw, with an increase in the clockwise rotation pressure and a decrease in the counterclockwise rotation pressure: the calibration bolt, argon, valves, pistons, pistons, springs
Example of model:
Hp technik pressure control valve drv 18 el
Hp technik pressure control valve drv 19 el
Hp technik pressure control valve drv 21 s
Hp technik pressure control valve drv 22 s
