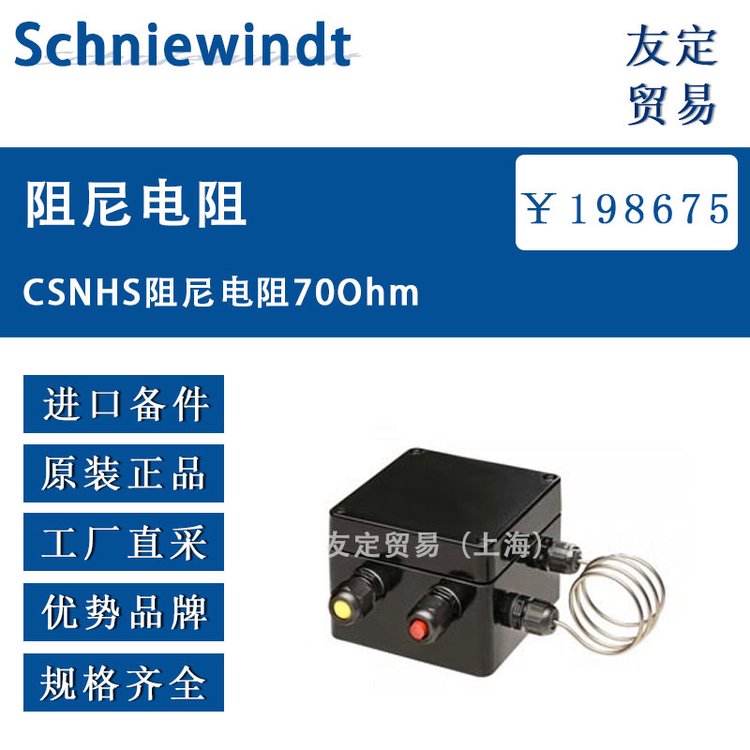

Schniewindt csnhs summary of 700 dpts
Product overview
Schniewindt csnhs is a 700-hour high performance resistance barrier designed for industrial applications, mainly to inhibit convulsion, voltage and electromagnetic interference on circuits, for high-voltage direct-flow transmission, non-power compensation systems (e. G. Svc, msmcn, statcom). The design is based on the csn series and has high continuous power, high voltage intensity and low electrical sensor properties that allow long-term stable operation in harsh environments。
Skills parameters
Type: csnhs 700 blockers
Impediments: 700
Quantification power: possible 0. 05w or other specifications based on specific models (e. G. Csn series) for reference to product manuals
Pressure intensity: high pressure design, suitable for high pressure direct flow or communication systems
Temperature factor: ntc (negative temperature factor)
Allow deviation: ±0. 5%
Frequency characteristics: hf applicable
Level of protection: industrial standards (e. G. Ip54 or higher, specific reference manual)
Materials: inorganic solid materials, resistant to heat and corrosion
Performance characteristics
Efficient interdiction
Through precise resistance design (7000 times), effective suppression of vibrations and excess voltages in circuits, and protection of equipment from electromagnetic interference and harmonious vibrations。
High voltage intensity and low telemetry
The application of special materials and processes with high voltage intensity and low telemetric properties is applied to situations where the requirements for telemetry and voltage, such as high-voltage direct current transmission, failure compensation, etc., are stringent。
Long-term stability
Inorganic solid materials and optimized structural designs ensure that resistors are stable in their long-term operation and reduce maintenance needs。
It's a bad environment
The level of protection is high and adapts to harsh industrial environments such as high temperatures, high humidity and corrosive gases。
Tight design
Cylinder design to save space and facilitate integration into various equipment。
Product size
Outer: cylinder
Specific dimensions: reference should be made to a product manual or data sheet of the schniewindt csnhs for 700 cases of resistance, which typically includes parameters such as diameter, length, etc。
Product application
High pressure direct current transmission (hvdc)
Repression of the vibrations and excess voltage in the direct current transmission system to improve system stability。
Non-functional compensation systems (svc, mscn, statcom)
To reduce the impact of electrical current discharges by capacitors on equipment and to protect system security as a barrier element。
Industrial filter
Be used in conjunction with capacitors, resistors, forming filter circuits, filtering the waves and improving the quality of electricity。
High pressure chain patches
It is used to limit the current bands and frequencies of the capacitors to avoid damage to the equipment。
Other high pressure equipment
It applies to all types of high pressure industrial equipment that require resistance and voltage protection。
Optional features and accessories
Temperature sensors
An optional temperature sensor is available for real-time monitoring of resister temperature to prevent overheating damage。
Shields
Provision of shields to protect electrical resisters from mechanical damage and environmental impacts。
Installation of support racks
Provision of specialized support for the stationing and installation of electrical resisters。
Customise barriers
Depending on client demand, customized products with other resistance values are available。
Selection guide
Identify resistance needs
Select the appropriate barrier value (e. G. 700 times) to ensure effective suppression of vibrations and excess voltage in accordance with circuit design requirements。
Calculating power requirements
Based on currents and voltage in the circuits, the rated power of the required resistor is calculated to ensure that the resistor is able to operate steadily over time。
Consideration of environmental conditions
Select the appropriate level of protection and material according to the environmental conditions of the applied scene (e. G. Temperature, humidity, corrosive gases, etc.)。
If you need more specific product information or technical support, it is recommended to directly contact amigo trade (shanghai) limited to obtain detailed technical specifications and specialized customer support mailboxes:info@youdingsh. Com
