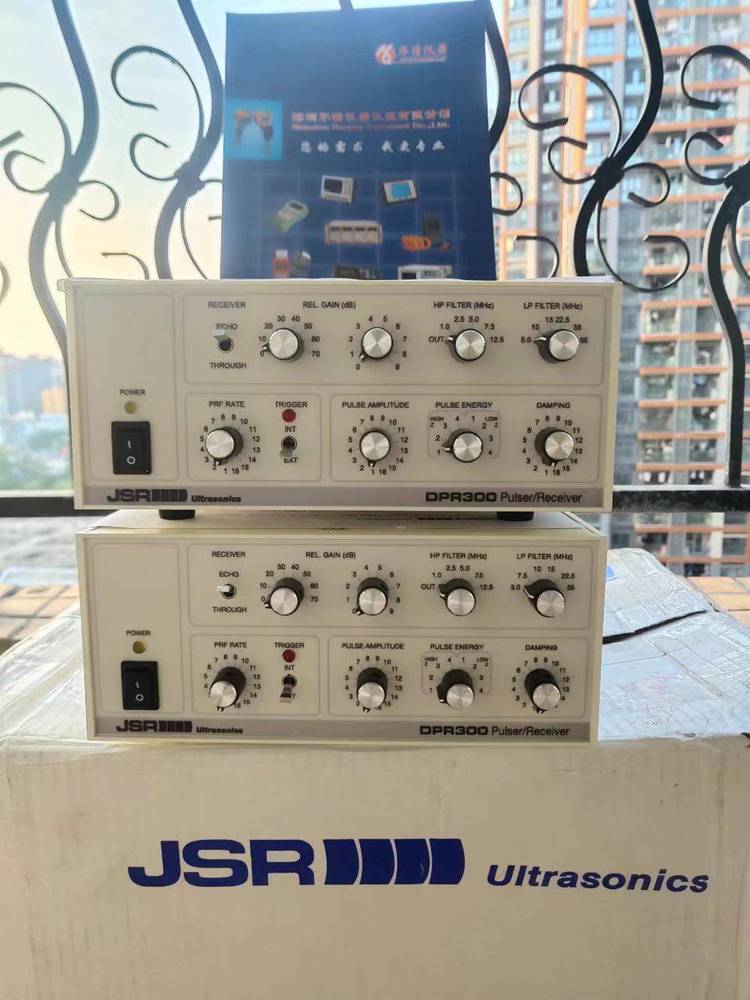

Hf ultrasound launch receiver dpr300
Hf ultrasound launch receiver dpr 500
Cts-8072pr, cts-8072pr+

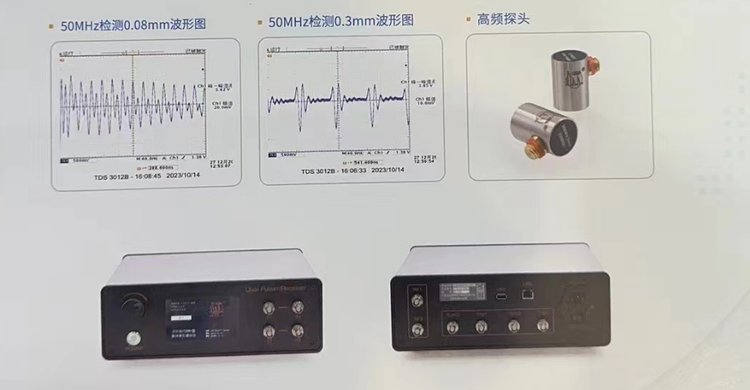

Hf ultrasound pulse launch receiver
The dual-channel high-frequency pulse launch receiver is a high-frequency detection application research instrument developed by the company, with low-noise and wide band reception magnification circuits and a sharp wave launch circuit consisting of high-performance sharp pulse generators and high-voltage power sources。
Cts-8072pr+ provides a dual-channel data acquisition function and allows for simultaneous computer control. The instrument can be applied to the acoustic characterization of hf ultrasound probes and performance indicator testing, as well as to hf ultrasound auto-acoustic injury detection, thickness measurement, material characterization, etc。
L functional characteristics
O specially designed high-frequency probe-matched tip-pulse generator, rising time
Pulse repeat frequency, 50 khz maximum
I don't know. Signal bandwidth: 20 khz ~ 110 mhz (-3db)
O-6db~54db, 1db step-by-step range of rf to adjustable gains
I don't know. 20khz or 20mhz optional high-through filter
500 mhz sampling rate/12bit data acquisition module
Standard network interface, computer synchronization control and data acquisition 0

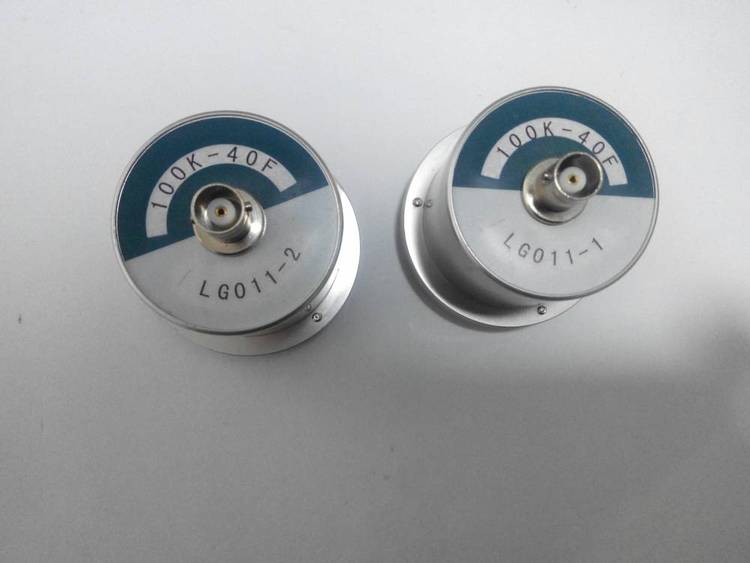

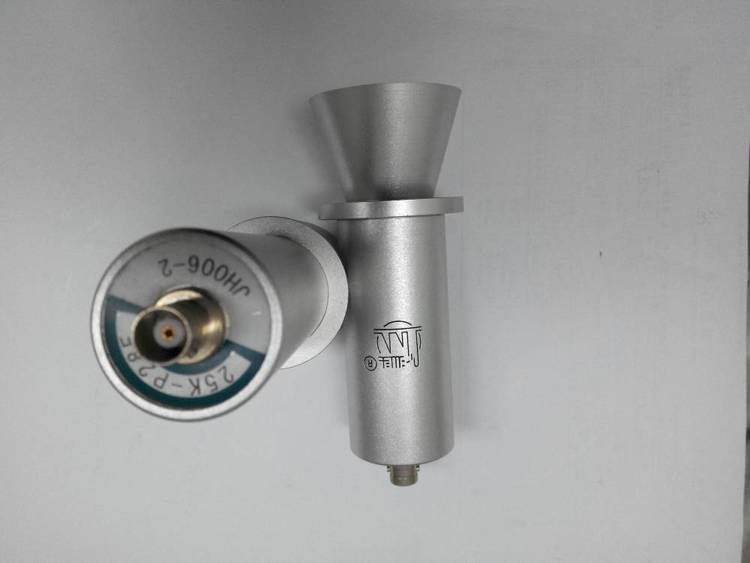

:: provides a series of 30 mhz, 50 mhz, etc., self-researched high-frequency detectors
