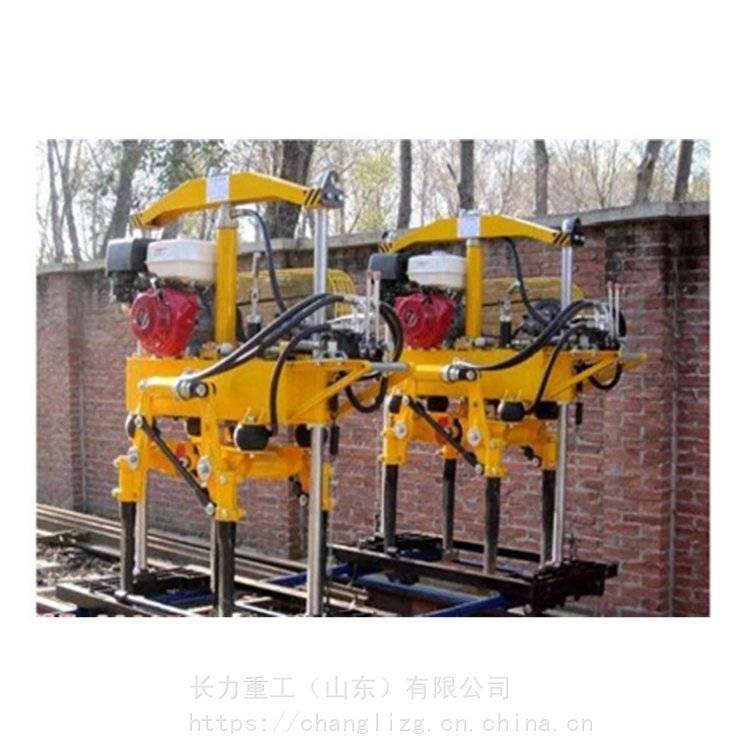

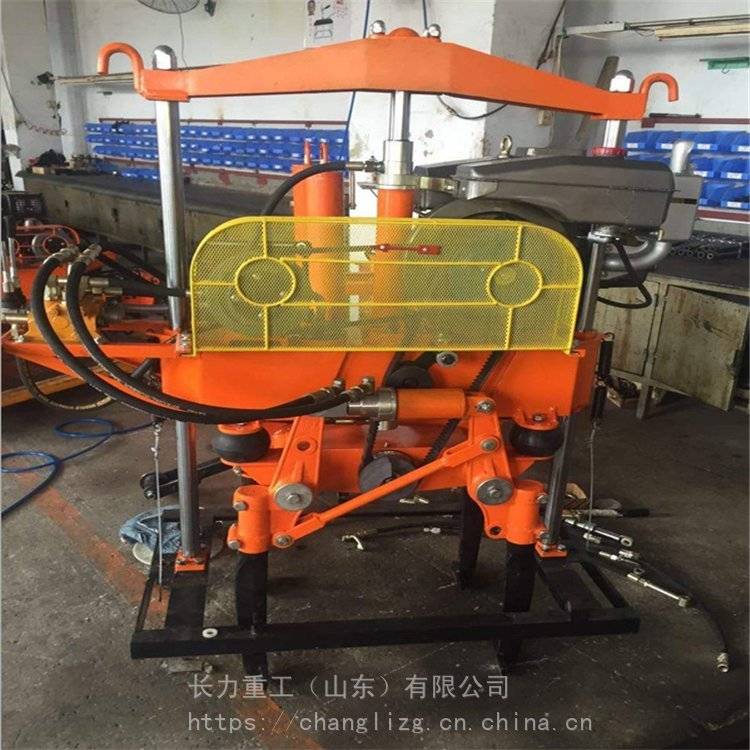

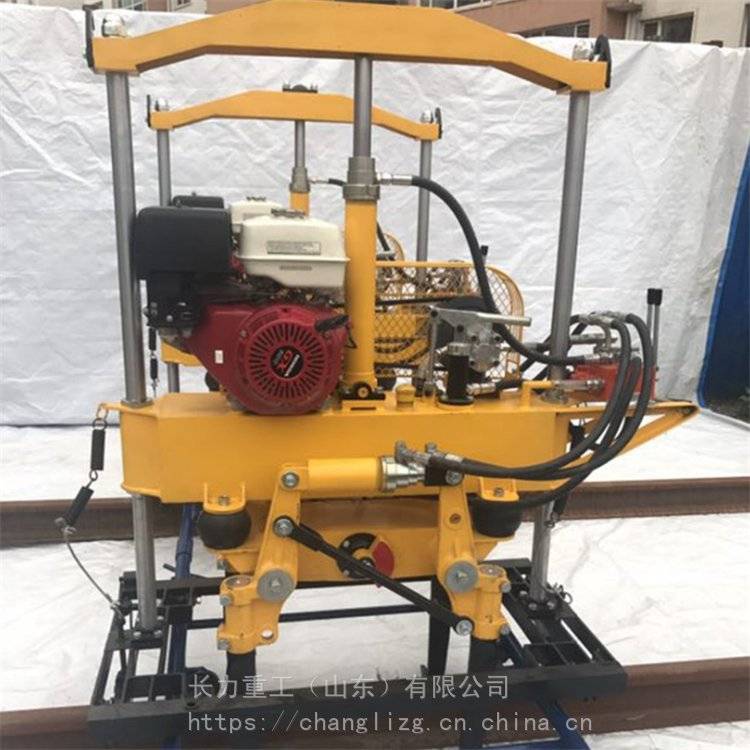

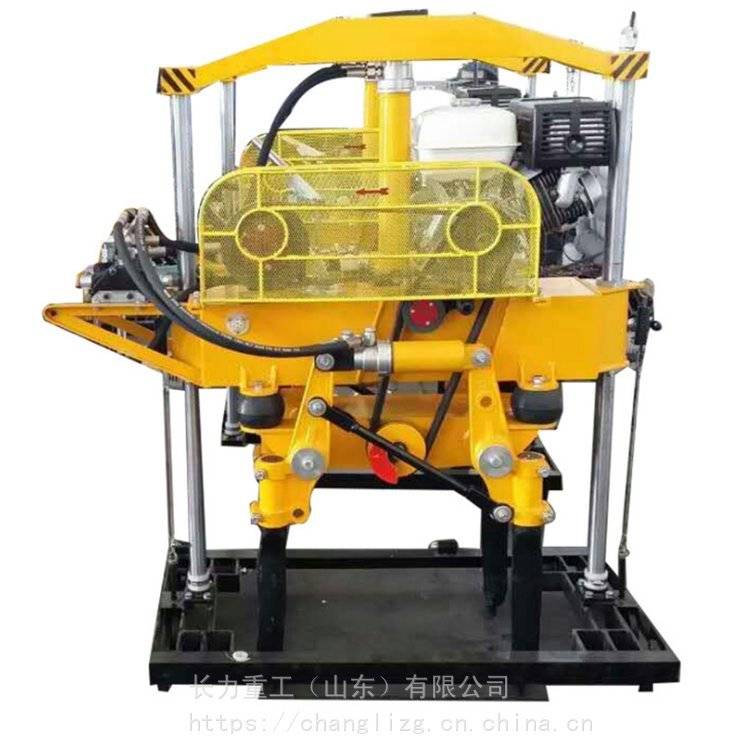

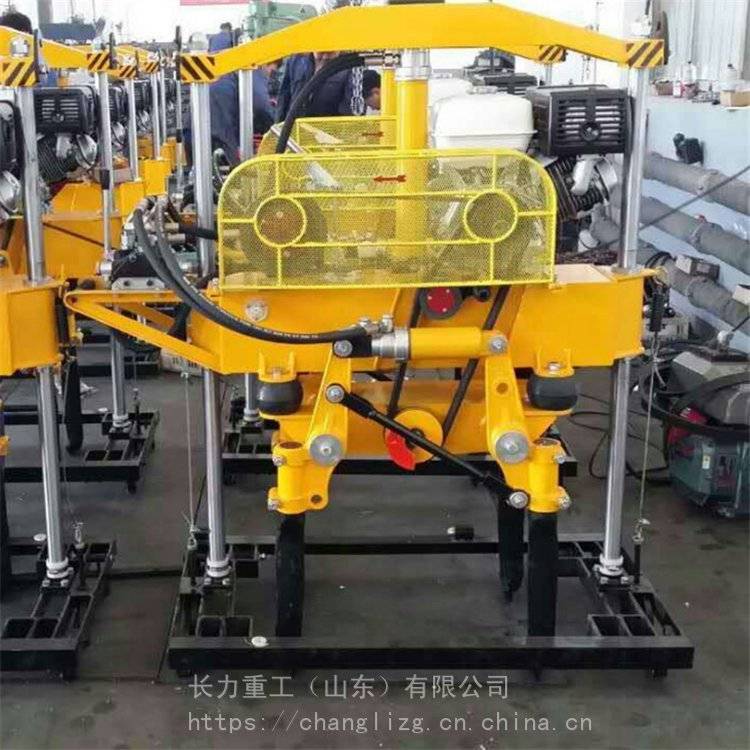

The yd-22 hydraulic compactor uses double-guided columns, single-cylinder lifts and drops, which provide a certain degree of sophistication and elasticity to the pebbles, thus improving the overall stability and smoothness of the line, not only by extending the life of the steel track, but also by extending the life of the wheel-to-wheel, making the train more smooth and reducing rail transport。
Scope of application and characteristics of the yd-22 hydraulic compactor
The yd-22 hydraulic compactor is designed primarily to accommodate high passenger speed, heavy cargo load and high-density heavy-load orbital structures. The application of the machine to line-to-line fixation operations is a complete substitute for traditional line maintenance equipment and overcomes the labour-intensive, operational inefficiencies and poor quality of traditional line maintenance tools. The yd-22 hydraulic compactor has many advantages, such as light weight, operational flexibility, low failure rate, solidification and high- and lower-lane convenience。
Technical capabilities of the yd-22 hydraulic compactor
Power: gasoline
Rating power: 9. 5 kw
Rating speed: 3600rpm
Self-esteem: 25kg
Fuel consumption: 310g/kwh
Vibration frequency: 67hz
Hydraulic system working pressure 5. 0-6. 0 mpa
Plug: ≥18kn
Cat: 7. 1 knx2
Raise time: 2s
Reduction time: 1s
Plugin time: 0. 5s
Bottom plug depth: 90 mm - 120 mm (under pillow)
Stimulation: 22kn
Production efficiency: 340 orbital pillows per group per hour
Host net weight: ≤360kg
Outer size: 1420 mm x 680 mm x 1550 mm
Form of operation:
Two of the one-side lower lanes are a group and apply a double line or a wider section of the one-line shoulder
Two downways on both sides are a group, with a narrow one-line shoulder. Land
Walking the wheel at 1435 mm。
