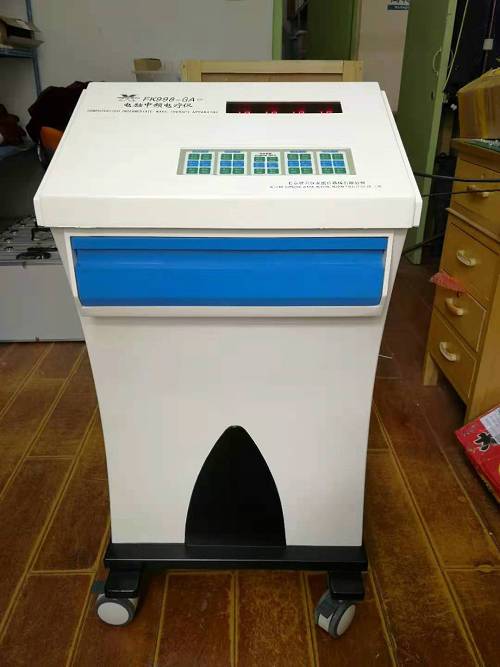

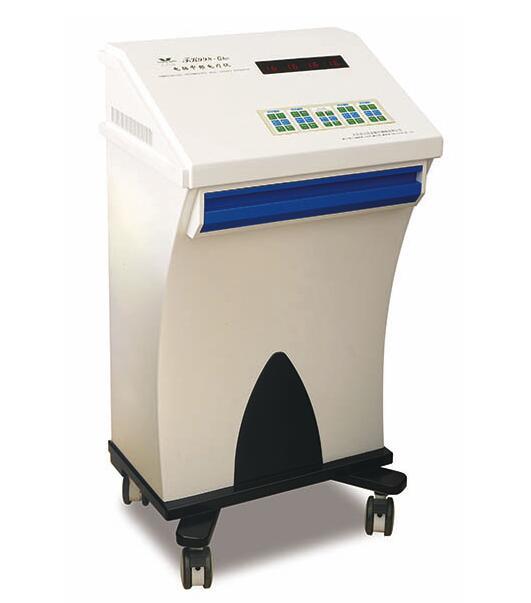

Fk998-ga(2) is a medical device for physiotherapy and applies to large- and medium-sized hospitals, community medical institutions and rehabilitation institutions. Using microcomputer control techniques, it consists of medium-sized, large-scale integrated circuits with four synchronized or walk-out export channels, eight output ports and display functions。
99 specific multi-step prescriptions for machine memory. They are developed by physiotherapy specialists based on different uses. Of these, 20 are routine multistep treatment prescriptions, 16 are audio current therapy prescriptions, 23 are frequency current therapy prescriptions in the swirl and 40 are frequency current therapy prescriptions in the pulse. The doctor chooses the prescription for treatment depending on the patient's condition. When a prescription is selected, the instrument is activated and the frequency current is automatically exported by programme in a series of specified therapeutic effects. Output current size is freely regulated. When the prescription program is finished, the instrument automatically cuts the output current and sends a sound
Main technical parameters
1 classification of equipment: category ii, bf type
Classification of treatment: category c equipment
3 working frequency: frequency bands in the range of 1 khz-10 khz with a frequency allowance of 10%
4 modular frequency range: bipolar output mode modulation frequency in the range of 0-150 hz
5 modified wave types: 99 prescription waves, triangulation waves, sawntooth waves, index waves, equal wave, sine waves
6 within range 0 to 100 per cent
7 moderates: continuous, intermittent, intermittent and transient
8 output current reconciliation: 100 slots between the minimum output current and the output stream, with output adjustable in 0-99
9 output current: the output current shall not be greater than 100 ma at 500 times of load resistance; of which prescription 40 shall not be greater than 80 ma
10 output current stability: electrotherapy should have an output current change rate of not more than 10 per cent under different loads
11 ion import output: pulsed direct currents not greater than 80 ma
12 output channel: 8 channels
13 input power: 100va
14 meltinger: f2al250v
15 continuous working hours: not less than 4h
16 at the time of the output, the electrodes short route 5s, further 15s, shut down the output 1 min, repeat the tests 10 times, and the electrotherapy system should function normally
17 output waveform parameters:
(a) no direct flow points in the medium frequency output
B) pulse width and pulse repetition frequency: see attached table
(c) range: 50 v
(d) a rated load resistance of 500 times and a deviation of not more than 30% between range, pulse width and pulse repetition frequencies and nominal values when the load resistance is within ±10%
(e) effective interdiction of 450-550 cases。
