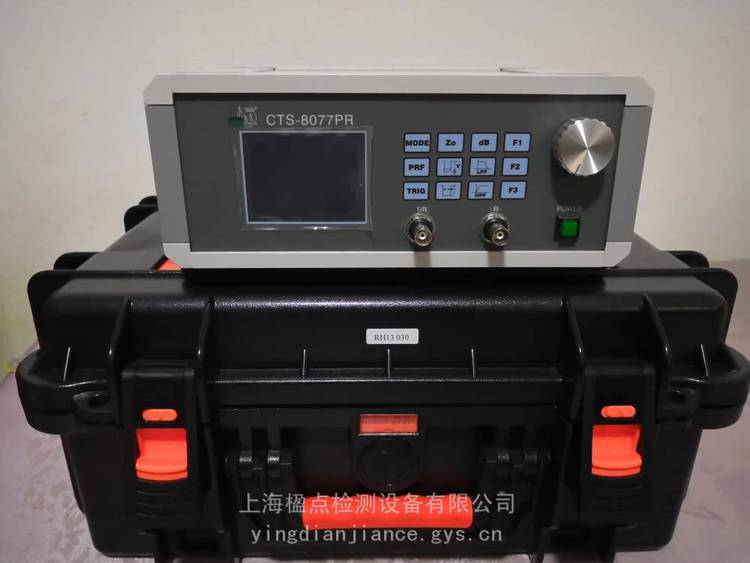

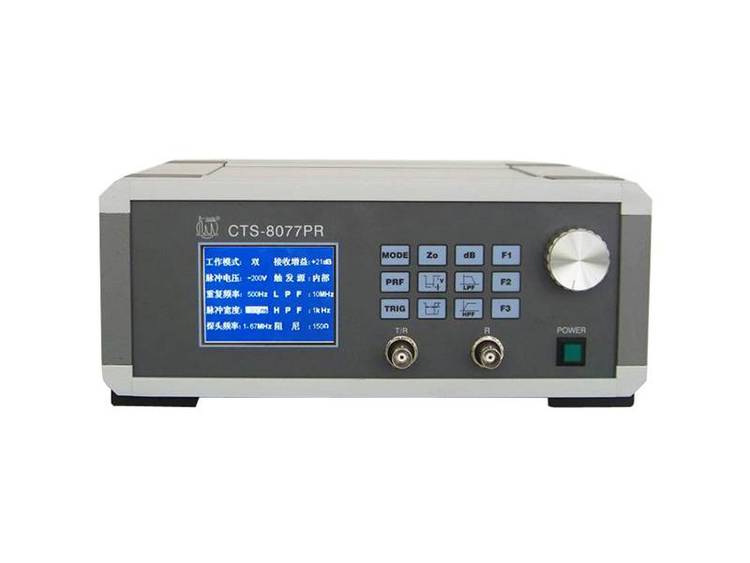

Cts-8077pr pulser receiver
The cts-8077p pulse-occupying receiver meets the requirements of the probe (en12668:2010) probe test system, has a very low noise and wide band receiver amplifier, and consists of advanced transmission circuits consisting of high-performance square pulse generators and high-voltage circuits。
Product introduction
The cts-8077p pulse-occupying receiver meets the requirements of the probe (en12668:2010) probe test system, has a very low noise and wide band receiver amplifier, and consists of advanced transmission circuits consisting of high-performance square pulse generators and high-voltage circuits。
Functional characteristics
Broadband sero-pulse launcher。
Pulse width ranges from 25 ns to 6500 ns, with a minimum step of 5 ns, corresponding to 80 khz to 20 mhz。
Pulse voltage can be adjusted, 25v ~ 400v moves 25v。
Pulse repeat frequency is optional, up to 5 khz
Wideband (30 mhz) pulse receiver。
60 db rf gain, 1 db step adjustment。
50 db rf decay, 1 db step adjustment。
10 mhz or 30 mhz is optional for low-throughput filters。
1 khz or 1 mhz is optional for high-throughput filters。
Usb interface, computer-synchronous control and provision of pc-synchronous control software and user development packages for users。
Performance indicators
Item
Parameters
Pulse type
Negative
Pulse uptime (no load)
Typical
Pulse range
(no load)
25v-400v, 25v。
Stop
50, 80, 150
Pulse width
Moveable range 25ns - 6500ns, 1000ns below 5s, 1000s above 20s
Electricity gain
60db
Decorator range
- 50 db
Pulse repeat frequency
100, 200, 500, 1000, 2000, 5,000 hz options:
0. 5 mhz probe cap of 2 khz;
0. 25 mhz probe cap of 1 khz;
0. 1 mhz op cap of 500hz
Pulse repeat frequency (external)
~5khz. External input frequencies are entered following the following limitations;
0. 5 mhz probes up to 2 khz;
0. 25 mhz probe cap of 1 khz;
0. 1 mhz op cap of 500hz
Synchronized pulse output
Ttl leveling
External trigger input
Ttl level, pulse greater than 50 ns
Signal output
1vpp
Bandwidth
1k-30mhz
Input interdiction
50 times
Output interdiction
50 times
High filtration
1 khz or 1 mhz
Low access filter
10 mhz or 30 mhz
Input output interface
T/r, r, rf output, external trigger input, synchronized output
Power
Optional 100 vac or 220 vac, 50/60 hz, out of plant code 220 vac/50 hz
Outer size
220 x 110 x 270 mm (long width)
Temperature
~50°c
Weight
3. 8 kg
Application area
Application areas:
Probe testing: probe testing system consistent with the eu standard. Measuring the characteristics of the power exchanger。
Metal material: to detect defects in metal components, such as cracks, gas holes, clamps, etc. To ensure product quality and safety. Other measurements used to monitor materials and processes. Thickness measurements, acoustic speed measurements, spectrum analysis, etc. Microstructure and performance of analytical materials, providing data support for the development of new materials。
Composite materials: assessment of defects in the layers, viscosity, pore, etc. Of composite materials, which are widely applied in areas such as aerospace, automobiles, etc。
