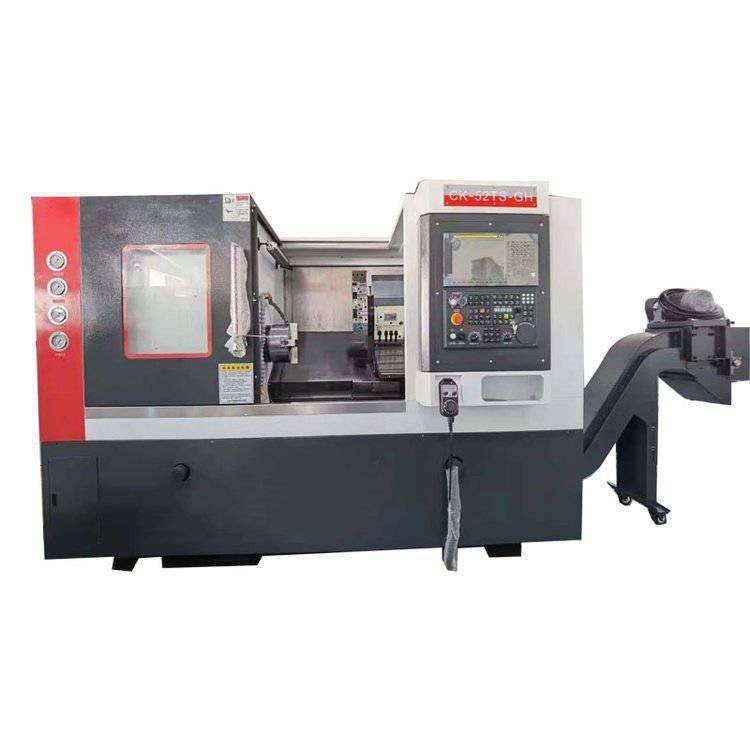

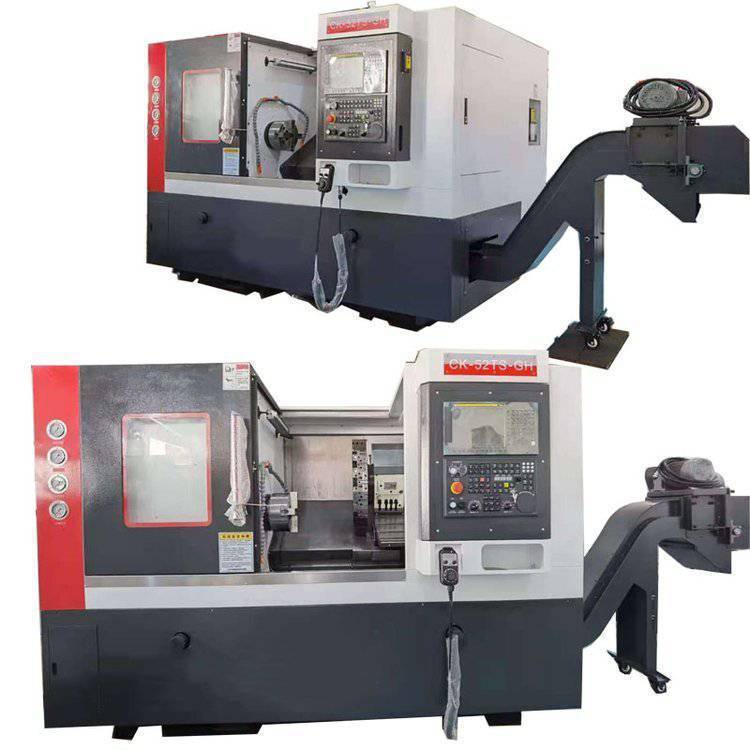

Ck-52ts-a main technical parameters:
Item
Units
Ck-52ts-a
Turn the diameter on the bed
Mm
500
Processing diameter (disk class)
Mm
460
Turning diameter on the blade rack
Mm
130
Process length
Mm
500
Main axis perforation diameter
Mm
Zoom 62
Main axis pole penetrating diameter
Mm
Fifty-two
Main axis end form
Asa
A2-6
Main axle power
Kw
Eleven
Main axis speed range
Photo by rpm/min
100 to 3,500
Track form
Type
Straight track
X/z axis for electric power
Kw
2. 3
X-axis process
Mm
200
Z axis process
Mm
750
X/z axle speed shift
Yeah
24
X/z axis reposition precision
Mm
±0. 003
Blade form
Type
A hydraulic knife tower
Number of knives
Pcs
12
Bed structure
Type
Tilt the bed
End axis main axis process (prime pressure)
Mm
120
Packing cone
I don't know
Mt-5
Machine bed weight
Kg
3500
Outer size (long x wide x high)
Mm
2,500 x 1500 x 1700
Main parts branded from:
Name of accessories
Branded premises
Digital control system
New generation
Main generator
Server main generator
X-axis electric power (with brakes)
Theo
Z-axis
Theo
Main axis
Precision main axis
Hydraulic card
Fine
Turn back the tank
Tgt/kpt
Eight knife towers
Swift
X-axis bearings
Japan ntn
Z-string bearings
Japan ntn
The x-axis roll-roll-swaps
Silver/ginty
Z-axle roll-roll-swipe
Silver/ginty
X-axis linear guide
Silver/ginty
Z-axis linear guide
Silver/ginty
