The principle of chain cycling in the production of gold springs:
The chinan spring circulator is a closed chain structure of two chains, which is designed to provide an infinity exercise of the trays attached to the chain, which is used in the catering industry, so that all floors can be fed and picked up simultaneously。
The chinan springs chain recycler, also known as a chain lift, a continuous dish transferer, is an innovative hotel dish delivery facility that is used to transmit dishes and miscellaneous items between large and medium-sized hotels, restaurants and floors. The equipment is structured so that it covers a small area. Energy efficiency, stability, small noise and maintenance. Dismantling, re-installation or subsequent layering can be done for a lifetime benefit。
Main features:
1. Small size: needn ' t weigh and be designed to provide enough space to feed。

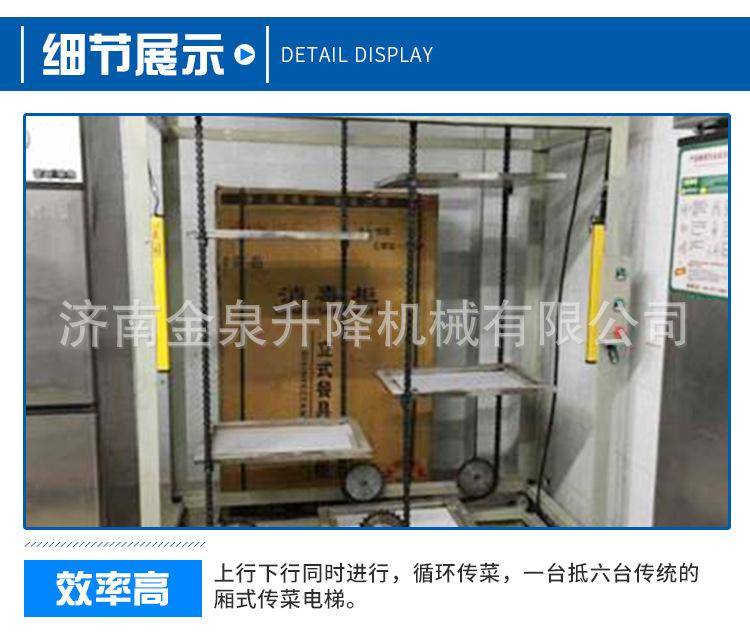

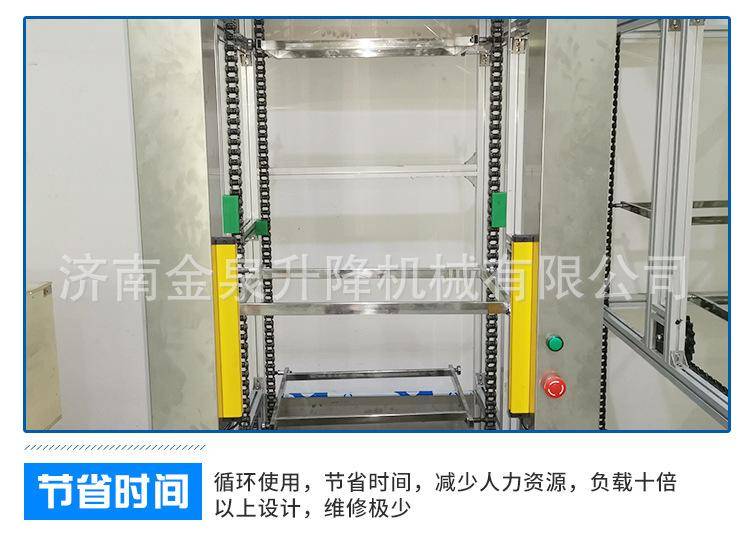

2. Efficiency: a parallel up and down course, with the circulation of vegetables, a six-part-class lift。
3. Low maintenance: military engineering spare parts, with more than 10 times the load of designs and minimal maintenance。
Non-special equipment: free of charge and free of annual review costs for special equipment。

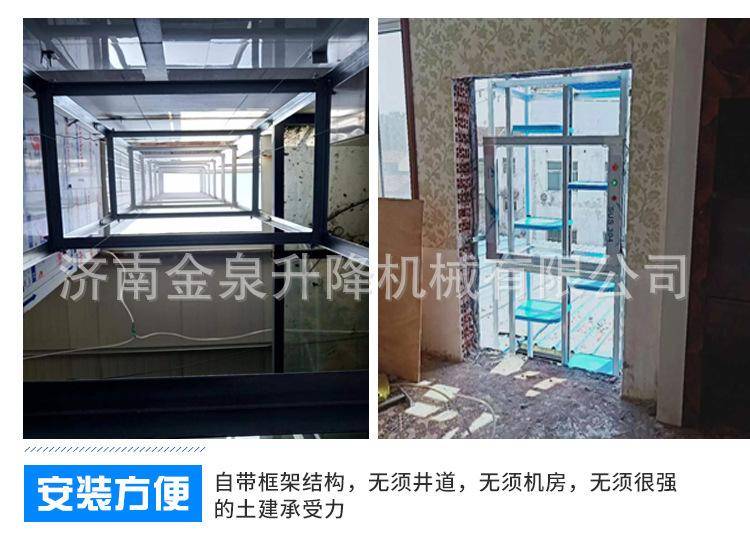

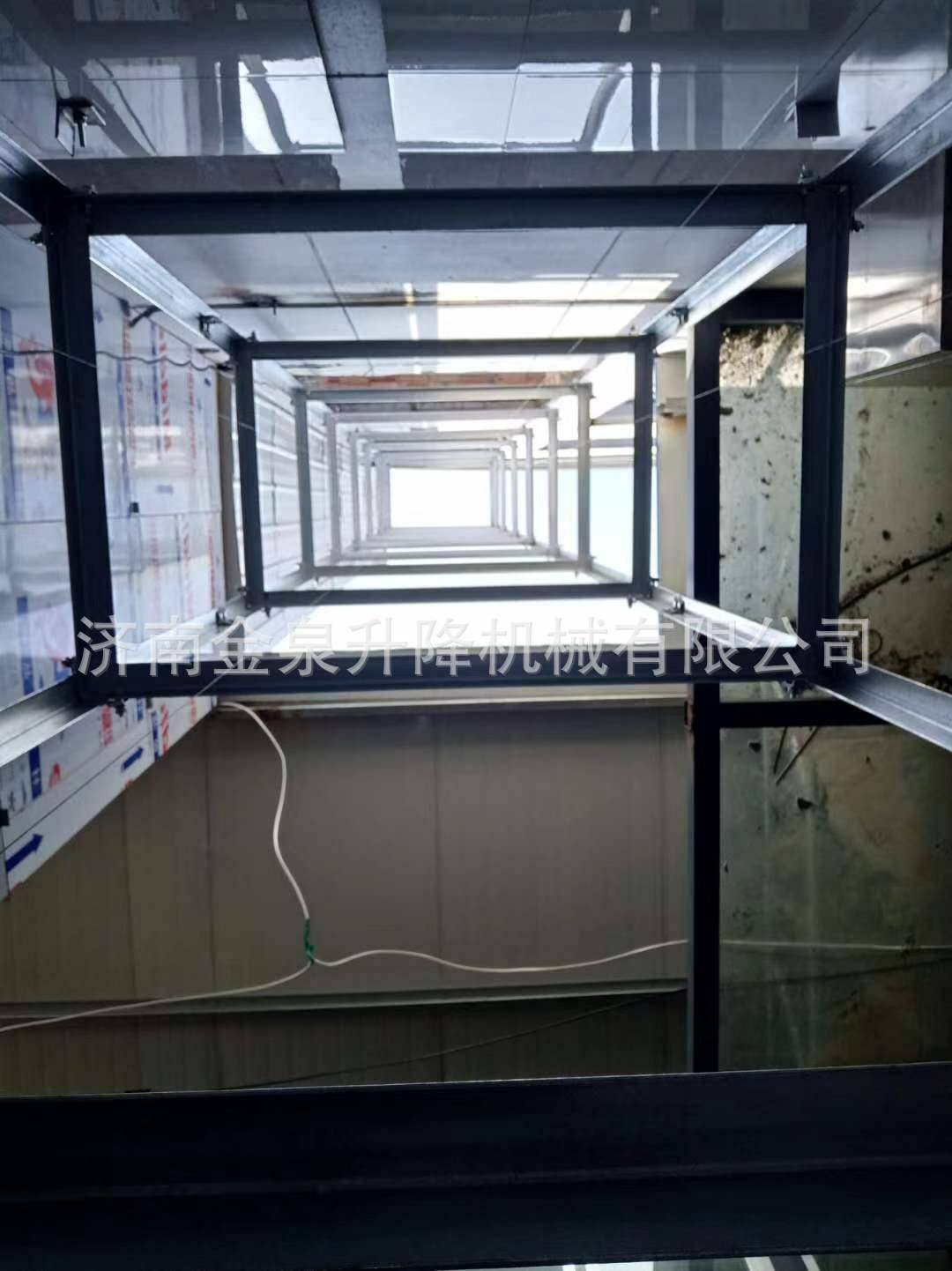

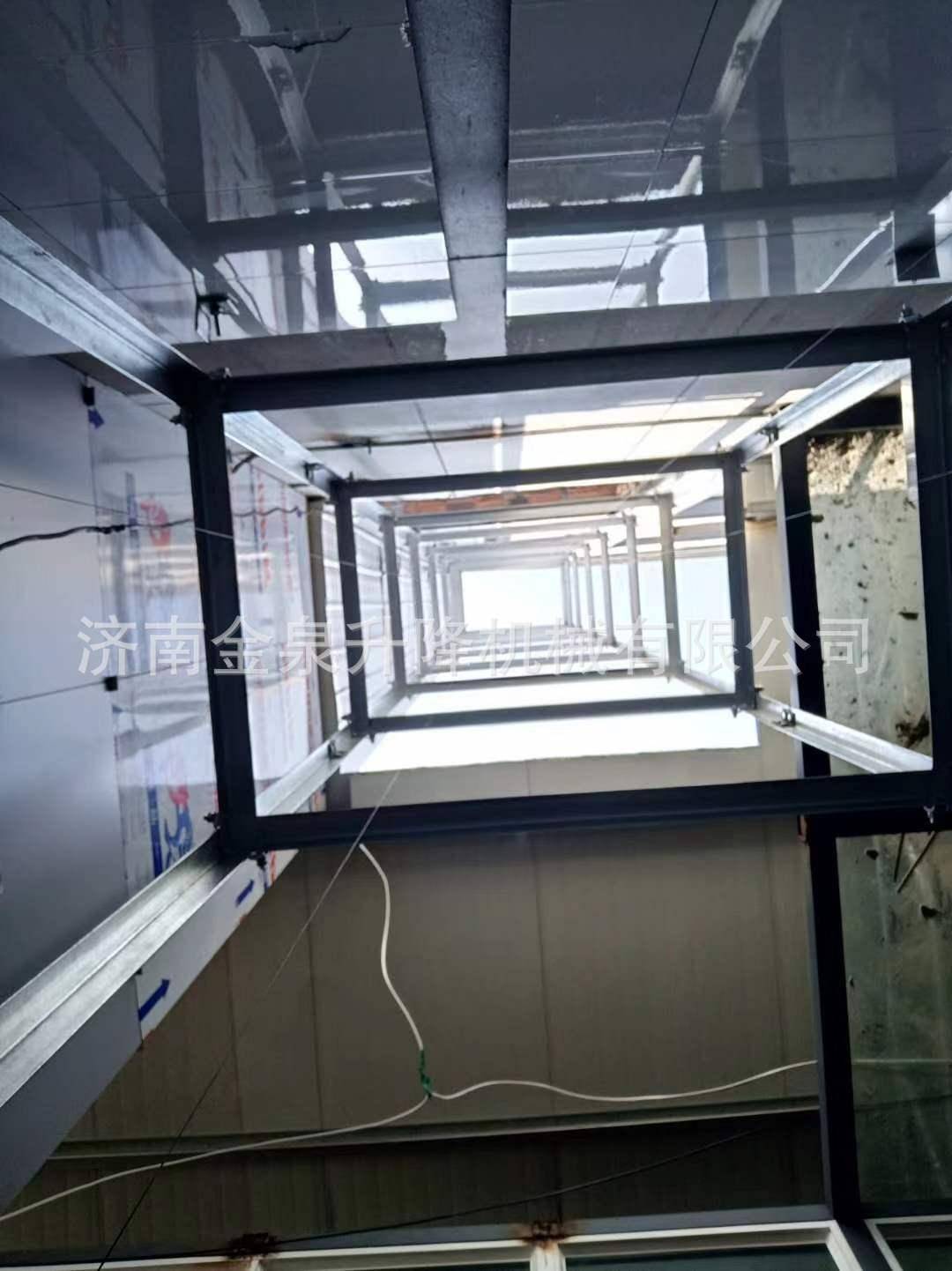

5. Installation convenience: self-contained framework structure, no wells, no machine room and no strong indigenous capacity。
The framework is aluminium-typed, high-quality, aesthetic and cleaner。
The chinan spring chain cyclops are bound to be the main equipment for the future, gradually replacing the traditional elevators
Back and forth, left and right

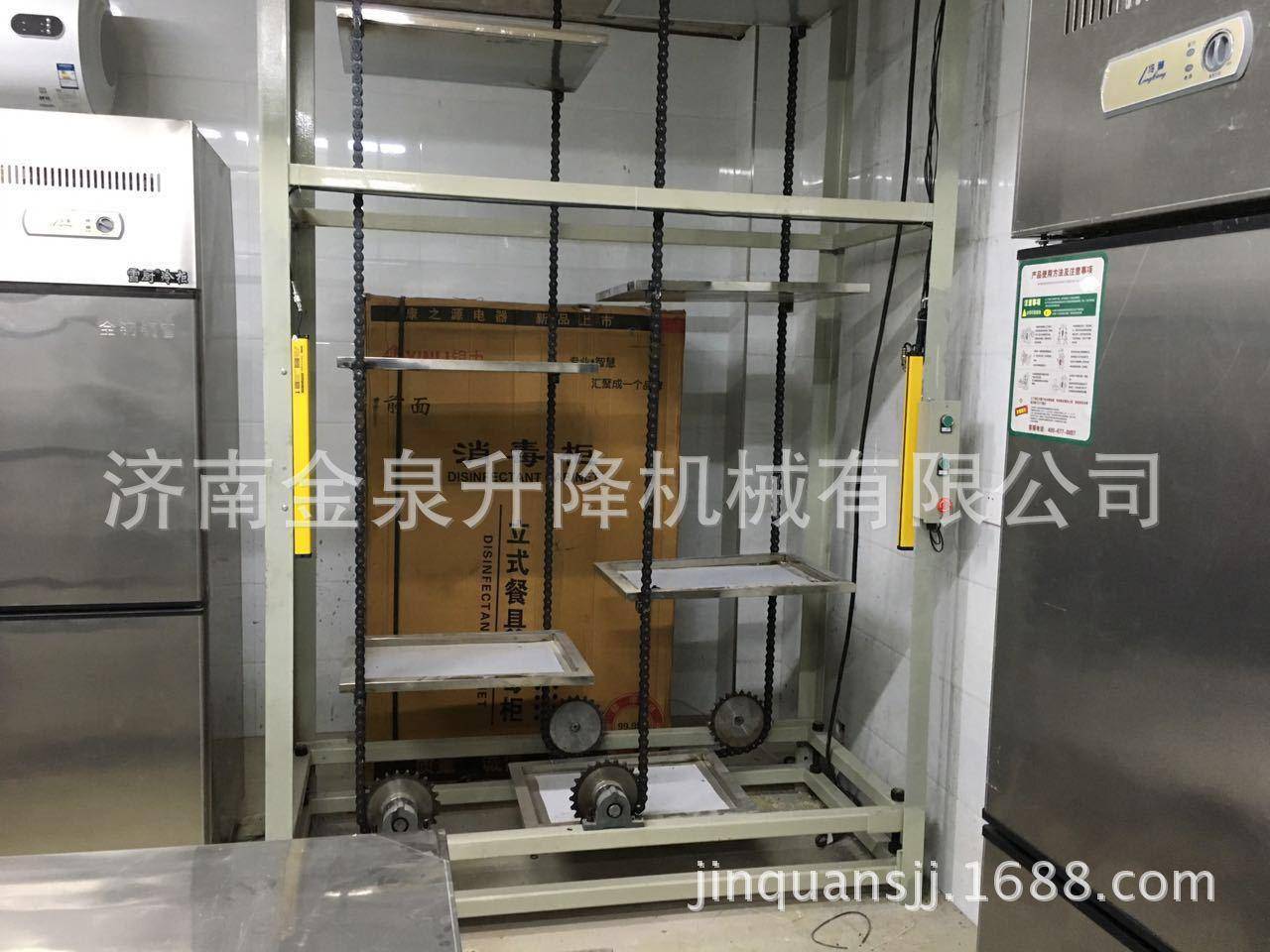

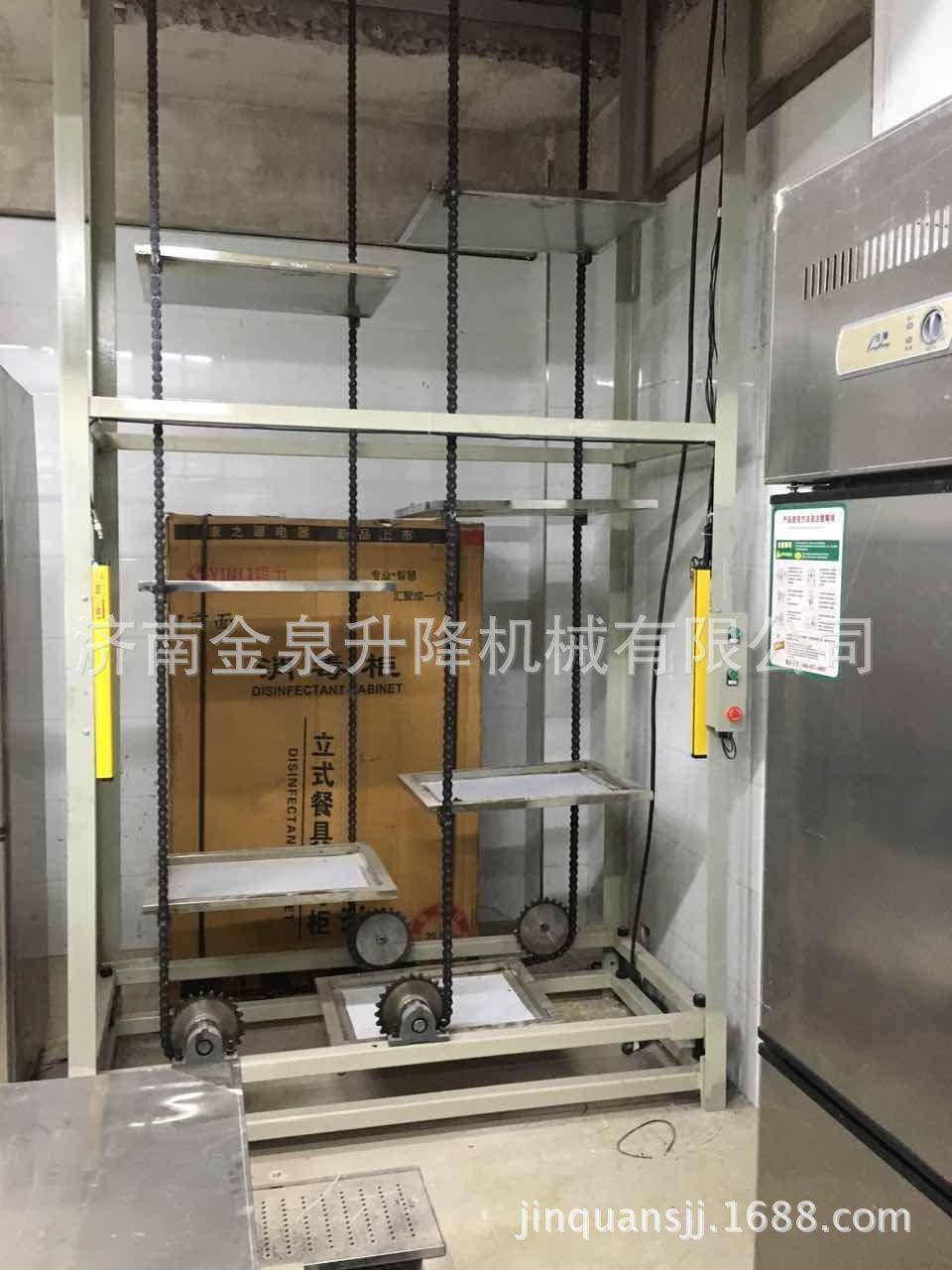

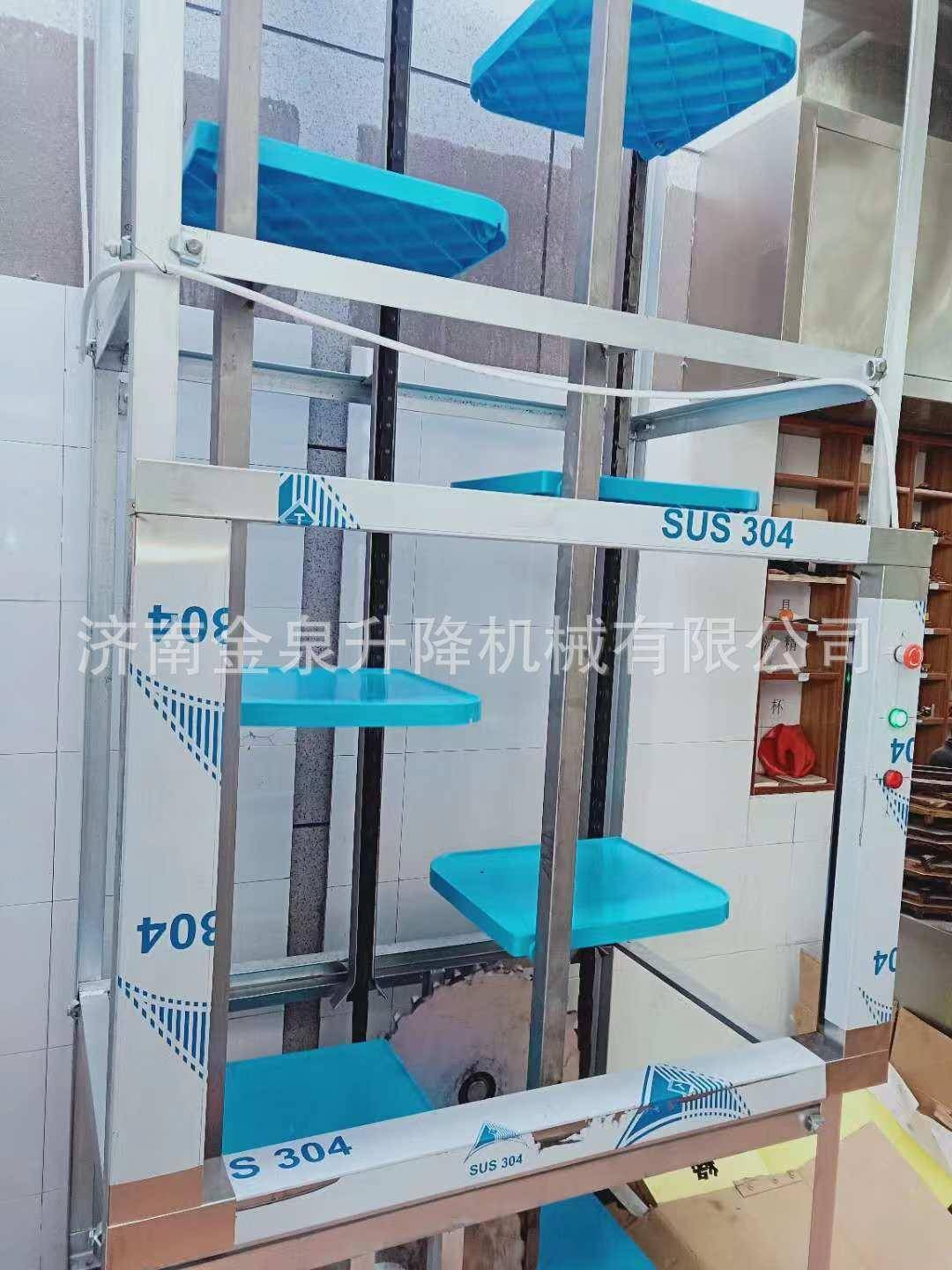

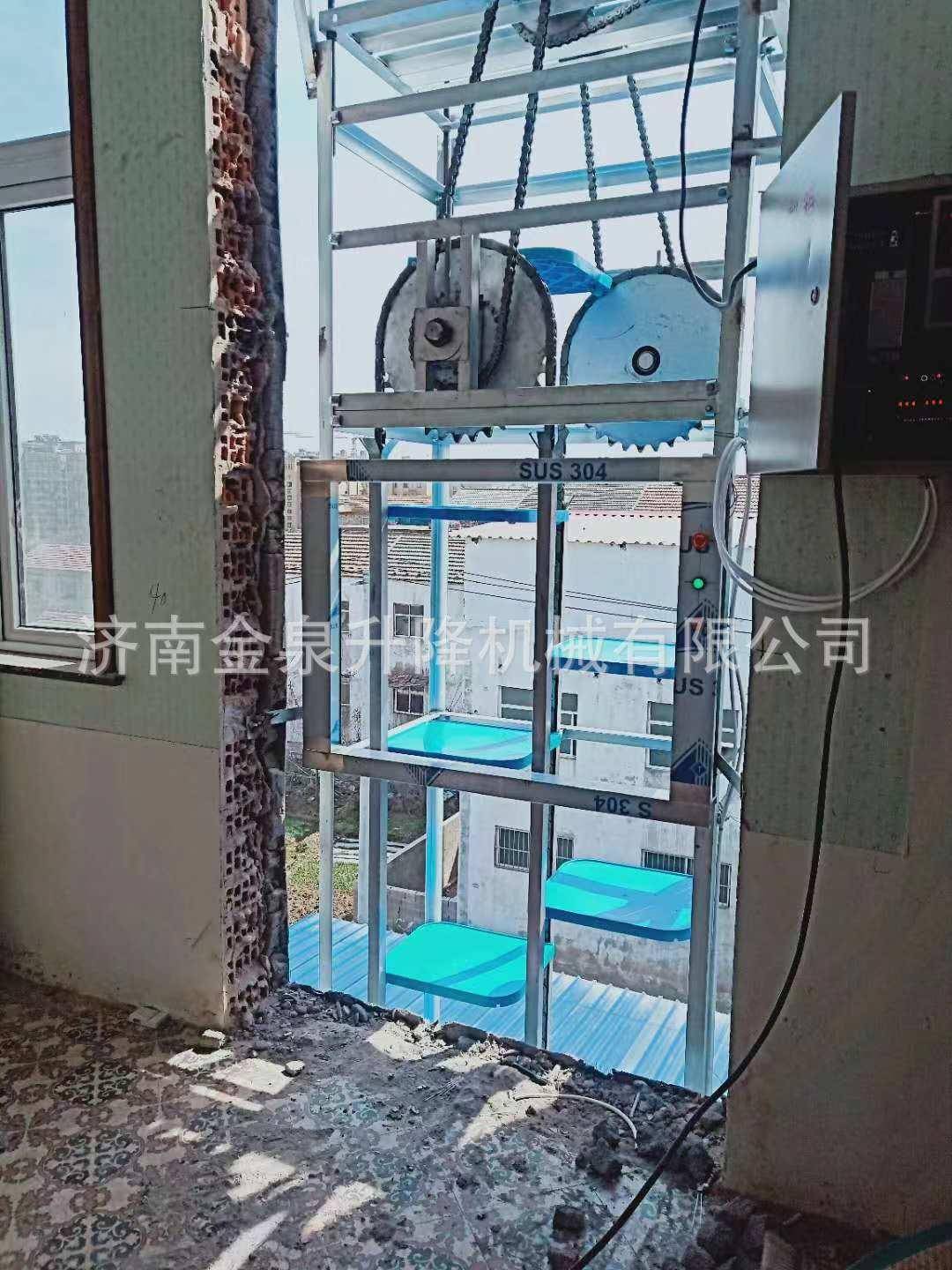

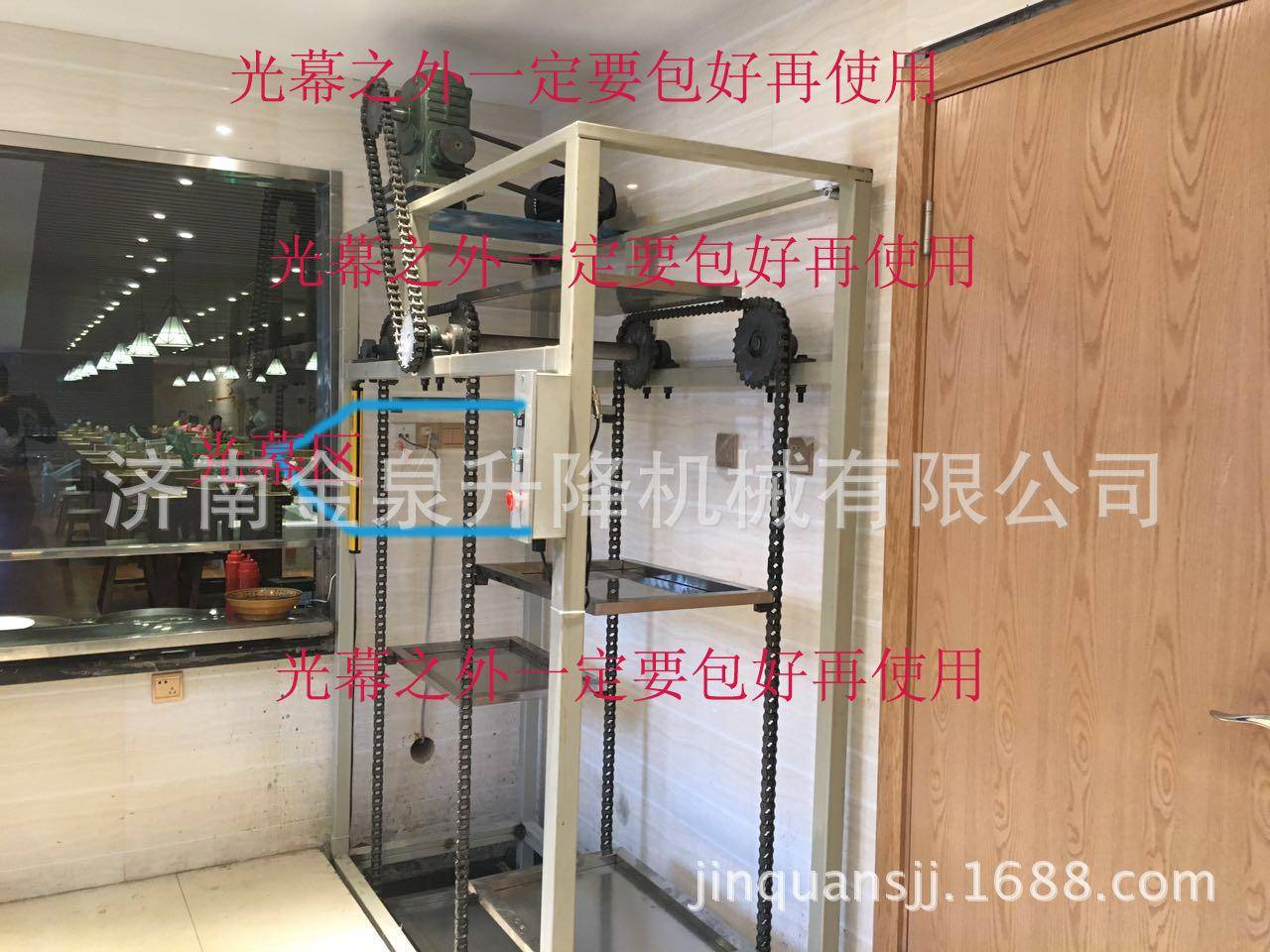

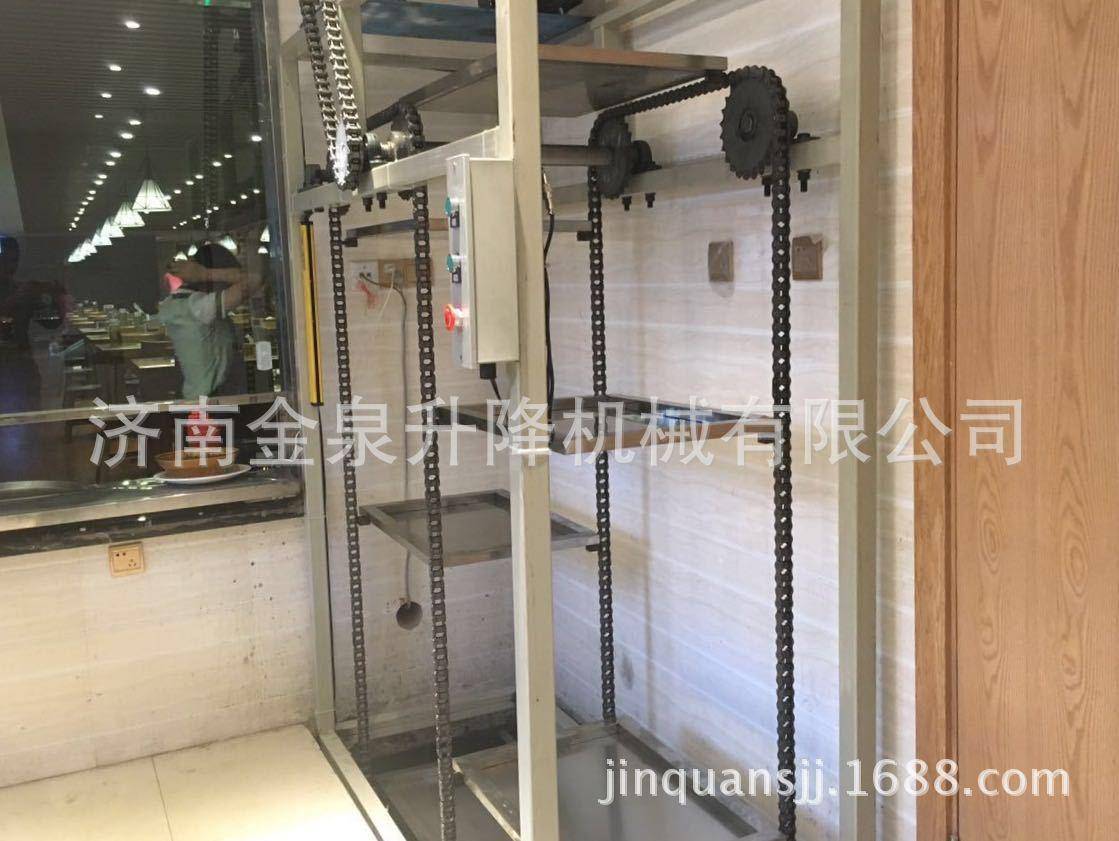

I. Chain: the chinan spring circulator is a closed chain structure formed by two chains. This design allows the pallet attached to the chain to move infinity, both up and down and double efficiency。
Ii. Framework: quinan spring circulator, framework with high-quality aluminium-type materials, aesthetics, rust-free and durable。
Purpose: circulation of vegetables, miscellaneous items
Raise height: 3 floors
Upgrading speed: 0. 15 m/s, three seconds to raise one plate without waiting, more efficient than the delivery elevator
Single disk load: 8kgs
Long delivery period: delivery within three weeks from the date of payment of the deposit (consensus between the parties)
Scope of service: nationwide (due to stable product performance and extremely low failure rate, off-site clients can buy it and buy it

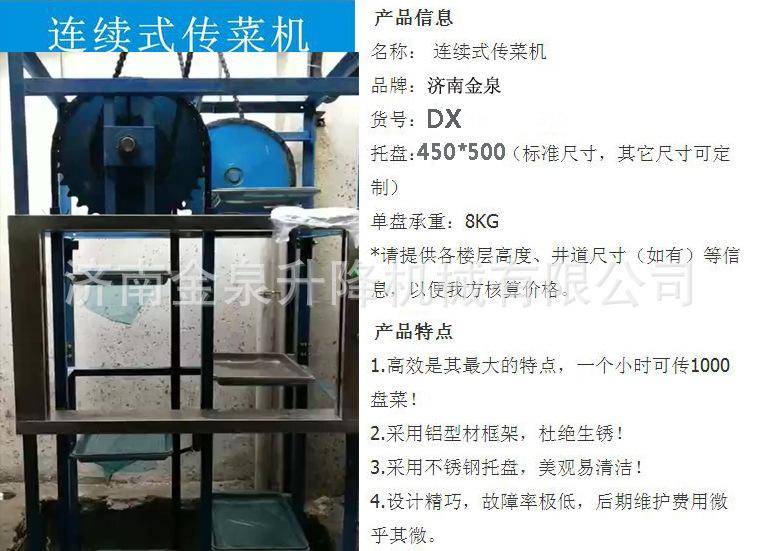

Basic parameters:

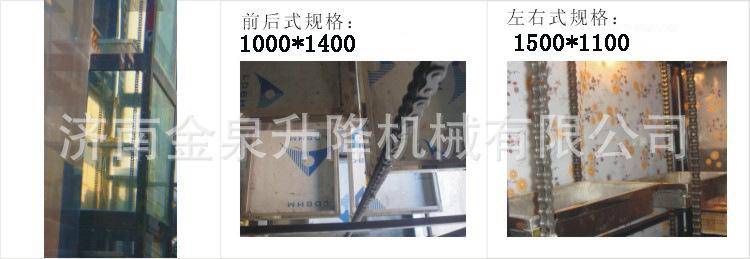

Standard specification (mm)
1) 1000 * 1400, 2) 1500 * 1100
3) customised to client requirements
Run conditions
Room temperature; 2+220v/3+380v 50hz
Driver power
0. 75 - 2. 2 kw
Run type
Looping (two windows, one down, one up)
Control mode
Button control start, stop
Functions
Inadequate, faulty protection, electric overheat protection
We're losing power
Standard disk specification (mm)
500l*450w
Single disk load
< 8kg
Run speed
0. 15 m/s (one plate per three seconds or so)
Materials
Pick-up window: a stainless steel lock
Tray: stainless steel
Framework: aluminium type
Quality assurance
1. The whole machine is free of charge for one year. (except vulnerable items)。
After the warranty period, permanent technical security (cost fees). However, they are extremely maintenance-free and annual maintenance costs are minimal。
Method of use of equipment:
Start: start; stop: stop. The emergency situation can be stopped by pressing the stop button. Simple, easy to use, durable. That's how you save yourself
Custom notes
Clients are asked to provide more accurate floor data or to be surveyed by our engineers for quotations。
Customized product, no change. We ensure that the quality of the product and the work done is no less than the pictures, videos and success stories that clients see for themselves。
All contracts are signed to secure the funds of both parties。
Production cycle: 18-25 days, installation period: 3-5 days
Guarantee: free warranty for non-anthropogenic failure for one year (from the date of acceptance and acceptance by both parties)
Response: 24 hours in province, 48 hours outside province the inside door
The rest is governed by the contract。
Purchase instructions
1. On prices
All transactions signed, this page is priced as a down payment, supporting the payment of the treasure online transaction, thanks to your support
2 on dimensions
Clients are requested to provide more accurate data for quotations or to make appointments for field measurements by our engineers。
3. About colour
The materials used are high-quality materials and metal-ferrous。
4. On customer service
If your advice is not answered in time, please add our qq: 2363749467, hotline 15662757281 thank you
5. On sale
One-year quality assurance, 24 hours in the province and 48 hours outside the province. Cost maintenance after expiration of warranty。
6. On shipping
In general, within 200 kilometres of customers, we will send vehicles directly to the door and install them. Logistics consignments will be sent by field clients. Packaging meets logistics requirements. Cyclops loads 5 kg-8kg. Disk size: 450 mm x 500 mm
