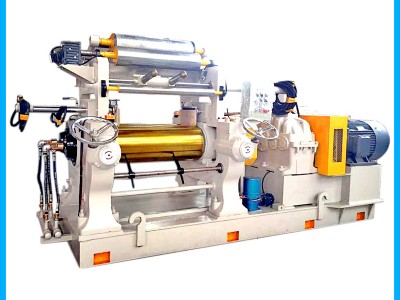

Summary of the main structure of the open refining press
Scattered tubes: the material is cold and alloy cast iron, the cold and hard layer of the surface of the scaffold can be as hard as 72 ± 2 hsd, and the scaffolding process is centrifuged by centrifugal casting, with no casting defects in the inner wall of the scaffold (e. G., unequal thickness of the scaffold, residual casting sand, etc.), thus ensuring cooling effects。
(a) arcular bearings and seals: rolling bearings, easy to break, can save power by 5-8%, both ends of bearings are sealed with skeleton-free oil seals and oil seals are fluorinated
(b) arcular lubrication: glycerine lubrication with hand-held glycerine pumps
(a) axes bearings: cast steel, processed after deflammation, with lubricating oil holes
(b) the routing device: is made up of hand wheel, snail, snail, tic disk, etc., for manual spacing
(b) frames and pressure caps: the racks are welded structures, welded and refired, and the coating material is cast steel recoiled
Undersea: the bottom is a whole welding structure, which is treated by fire
(a) transmission systems: the main electric generator functions relatively through a joint axis, the speed-reducing machine through a joint axis, and the speed-penetrating gear; the main electric generator has a three-stage different pace motor; the brakes use a hard-dent-reducing machine, a bathing system
Temperature regulation devices:
Temperature cools are two vents drilled with a small hole, each stretching into an empty cavity tube, with a small hole in the cavity of the cavity in the working part of the cavity, and a 45° angle in the direction of the rectangular position of the cavity, so that the sprayed vapour or water corresponds to the point of contact with the glue in order to control the surface temperature well。
Dalian promising rubber machinery ltd., main products:Squeeze machineI don't knowTurn on the refinerI don't knowSmelterI don't knowFilm coolerI don't knowCut the glueI don't knowRaiser• equipment associated with the refining line。
