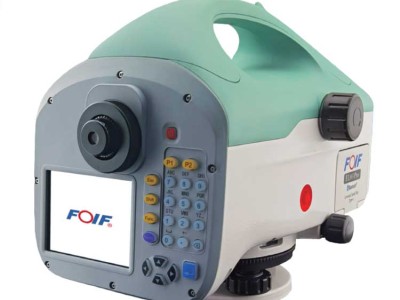

Sioux light el03 pro electronic standard
Product description
El03pro is the company's new high-precision digital calibration instrument, equipped with colour touch screens and built-in camera support. In standard measurements, what you need to do is just press the measurement key with the target ruler and focus. High range and distance values are shown in numerical form, not to feel the difficulty of measuring, but to feel that work is so easy and fast。
Product characteristics
(b) standard deviations for round-trip measurements per km: 0. 3 mm
Magnification factor: 50x
Real-time alerts for high-precision graphical electronic bubbles
(b) increased operational efficiency with wide-angle cameras through rapid visual targeting
A semi-reverse touch screen with a resolution of 320 x 240, 3. 5 inches
25 keys (including digital keys), backlight display
A rich communication interface, data transmission type c, usb, rs-232c
Out-of-board software upgrades can be achieved through external controls
Long range: the actual range can be more than 140 m
Normal measurements can be achieved, sampled, measured and sampled at the mid-point of the horizontal line, and grade differentials
Technical parameters for products
Electronic reading (high-precision ruler) 0. 3 mm
Electronic reading (normal bar-coded ruler) 1. 0 mm
Optical readings: 1. 5 mm
Distance accuracy: d≤10 m<10 mm; d>10 m±0. 1% x dmm
Rate: 1. 8 to 140 m
Display high differential: 0. 01 mm, 0. 0001ft, optional
Distance: 1mm, 0. 01ft
Measurement time: 2s
Telescope: magnification factor of 50 x
Distance: 0. 9 m
Scope of compensation: ±14”
Compensatory accuracy: 0. 2
Inline data storage: memory capacity built into 2g
The file management function supports usb data transfer
Circler: 8"/2mm
Horizontal disk: 360o/400g optional
Keys: 25 (with numbers)
Angular test: yes
Communications interface: type-c, usb, rs-232
Power system: lithium batteries 2600 mah/7. 2v
Dustproof water standard: ip54 (with batteries)
Working temperature: 20 ~ 50 °c
Storage temperature: -40 + 70°c
Power system: charger batteries, working above 12h
