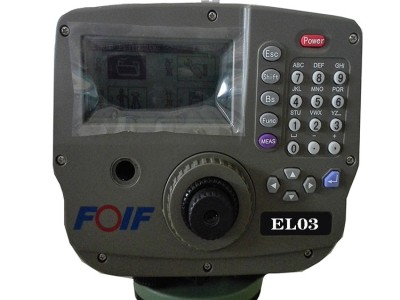

Product characteristics: foifsu-supplied el03 digital level yi
Six lines in chinese, full-numbered keys, graphical window interfaces that show both front-and-back measurements and margin values
Add numerical and functional keys (24 keys), faster measurement, clear visualization of measurements and high-range and high-foot switching, support for single-point measurements, multi-line measurements, meso-point measurements, samplers, continuous measuring line flats, to achieve a standard network flatting function in reprocessing software.
Simple operation: high difference and distance can be measured with one click on the engine; electronic/manual readings
Long range: actual range up to 110 m; speed of measurement: single measurement time around 1 s
Data storage: incorporated 4g with sd card (4gb)
You can choose bluetooth remote control or use smart, remote measurements.
Places of application: standard network measurements, deformation monitoring, ground deposition monitoring, industrial measurements, tunnel and mine measurements, topographic level line measurements, regional level measurements, standard network measurements, barometer measurements, road and rail construction sampling, vertical and cross-section surveys, high range sampling
High-range precision (per kilometre round trip):
Electronic readings (high-precision ruler): 0. 3 mm
Electronic readings (normal bar-coded rulers): 1. 0 mm
Optical readings: 1. 5 mm
Distance accuracy: d≤10m:<±10mm
10 m <d≤50 m:±0. 1% x dmm
D>50m: ±0. 15% x dmm
Rate: 1. 8-110m
Measurement mode: single, average (range can be determined) and continuous
Unit: m, inft optional
High difference: 0. 01 mm, 0. 0001, optional
Distance: 1mm, 0. 01 optional
Measuring procedures: ordinary measurements, sampled, measured and sampled at the mid-point of the horizontal line, level deviation
External control orders to upgrade off-site software
Measuring time (single): 1s
Telescope: magnifying 30x
Valid aperture: 45 mm
1°30"
Resolution 3. 75
View distance: 0. 6 m
Scope of compensation: ±14”
Compensatory error: 0. 2
Xing's error: 0. 2
Inline data storage:
Memory capacity: internal 4gb, external sd card (4gb)
Document management function: yes
Circler: 8"/2mm
Horizontal disk: 360o
Monitor: background light, 6 lines in chinese, showing readings, distance, high difference
Keys: 24 (with numbers)
Angular test: yes
Communications interface: rs-232
Dustproof water standard: ip54 (with batteries)
Working temperature: 20 ~ 50 °c
Storage temperature: -40 + 70°c
Power system: charger batteries, working above 12h
Weight (with batteries): < 3. 1 kg
Centre screw: 5/8"
