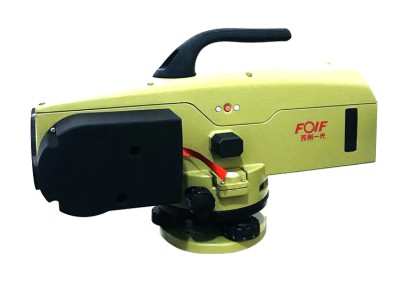

Ds03 scale
Product introduction
The ds03 standard is a nationally produced 0. 3 mm accuracy, a standard, a stable reliable performance, a grade measurement accuracy, an automatic ds03 automatic security level, an built-in microplasm, a measurement system using automatic compensation techniques and built-in encoders and digital circuit processing, and a direct display of microreading on the display screen, reading 0. 01 mm directly, and the ds03 standard deviation of 1 km to and from the scale of 0. 3 mm. The 1 km round-trip differential was tested to fully meet the standard standards。
High standard deviation per km round-trip measurement: ≤0. 3 mm
Telescope: right
Magnification factor: 42 x
Mirror calibre: 50 mm
Distance: 1. 2m
Multiplier constant: 100
Plus constant: 0
Compensator terms of reference: ±15'
Accuracy: ±0. 2'
Circler: 5'/2mm
Microscale: 10mm
Reading system: encoded disk
Reading method: digital lcd display
Show reading: 0. 01 mm
Microreading accuracy: 0. 01 mm
Battery working hours: >10 hours
