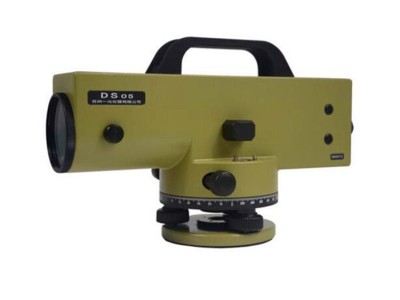

Sioux light ds05 standard
In response to demand from the domestic market, my company recently launched a self-developed ds05 standard in suzhou. The main uses of the ds05 scale are for measurements at the 2nd and 3rd level, construction engineering measurements, deformation and deposition monitoring, mine measurements, large machine installation, tool processing measurements and engineering measurements, instrumentation using automated compensatory techniques and digital optical calibration systems, which can significantly increase operational efficiency and measurement accuracy
Product characteristics: the ds05 scale is a built-in microplasm structure, which is designed in full seal and is effective against dust and water, with a sealing level of ip55; greater magnification and clearer observation targets; and more reliable fixation with new methods to improve instrument stability. The instruments are balanced and coordinated, with more stable placements, better standards medium performance and easier and faster use。
Technical parameters (use of high-quality steel scale)
High standard deviation per kilometre round-trip measurement: ≤0. 5 mm
Telescope: right
Magnification rate: 38x
Mirror calibre: 45 mm
Short-sighted distance: 1. 6 m
Multiplier constant: 100
Plus constant: 0
Compensator terms of reference: ±15'
Accuracy: >0. 3"
Circle sensitivity: 10"/2mm
Microscale: 10mm
Micrometer value: 0. 1 mm
Estimable readable: 0. 01 mm
