Product introduction

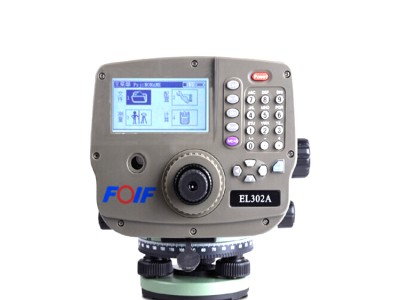

The el302a electroplasm uses new software designs to optimize line measurements, making them simple and used for measurements at the level of 2nd and below, according to a graded process。
What you need to do in the scale is just press the measurement key after calibration of the target ruler. High range and distance values are shown in numerical form, so that you do not feel the difficulty of measuring, but rather the ease and speed of the work
Product characteristics:
Full number keys, graphical window interfaces, which display both front- and back-foot measurements and margin values, and six rows in chinese, which show additions to numbers and functions (24 keys), are faster, the measurements are clear intuitive, and can achieve high range and high ruler switching, support single-point measurements, multiple line measurements, intermediate measurements, samples, continuous measurements of line flatness。
Simple operation: high differential and distance/manual reading ranges can be measured by a single key after start-up: the actual range can be measured faster than 105 m: the single measurement time is around 1s for data storage: 3,000 data sets can be stored to support sd card expansion。
Applicable sites: standard network measurements, deformation monitoring, ground deposition monitoring, industrial measurements, tunnel and mine measurements, topographic surveys, horizontal route measurements, regional level measurements, horizontal network measurements, plasma measurements, road and rail construction sampling, vertical and transectal measurements, cross-section measurements, high-range sampling
Magnification factor: 30x
Image: positive
Short-sighted: 1 m
Course: 2~105m
Distance accuracy: d≤10 m < 10 mm, 10 m < d≤50 m± 0. 1 per cent x d, d>50 m ± 0. 2 per cent x d
High accuracy: electronic reading ± 0. 7 mm
Optical: ±1. 5 mm
High display: 0. 01 mm
Scope of compensation: ±14”
Type of compensation: magnetic blocker
Accuracy: 0. 5
Data storage: 3,000 data sets in support of sd cards
