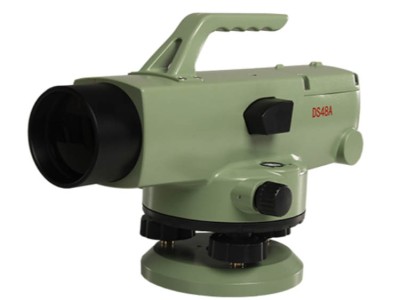

Three ds48a automatic level
Technical indicators
Model: ds48a
Telescope multiplier: 48x
Standard deviation per km round-trip measurement : 1. 0 mm
Accuracy: >0. 3"
Compensator terms of reference: ±15'
Telescope imaging: positive
Mirror calibre: 50 mm
The corner of the scene: 1°3
Z short-sighted distance: 0. 8 m
Multiplication/plus constant: 10. 0/0
Circle-level bubble accuracy: 8"/2mm
Disk fraction: 360° or 400gon
Protection level: ip54
In the form of a compensatory device: a magnetic blocker of type v lacquer
Instrument dimensions: 296 mm x 145 mm x 200 mm
Net instrument weight: 2. 5kg
Centre screw size: m16 or 5/8
This information is provided for reference purposes only, and in order to continuously improve product performance, any changes in all pictures and performance parameters on this colour page may be made without further notice
