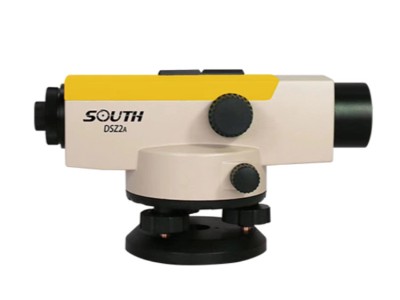

South dsz2a automatic leveler
Product characteristics
Measurement accuracy: 1. 0 mm/1 km
40 times magnification, lens, 45 mm
New automatics
Waterproof, leaching, still accurately measured
Seismic properties, still accurately measured by road transport vibrations, without correction
Steel axle copper packs, gillfire process
Technical indicators
Instrument type Dsz2a
Dsz2a:1. 0mm
Dsz2+fsi micrometer dsz2a: 0. 5 mm
Telescopes
Telescope imaging: positive
Image multiplier dsz2a: 40x
Mirror cal. Dsz2a:45mm
Dsz2a: 1°20"
Measure dsz2a: 0. 5 m
Distance measurements
Multiplication constant: 10. 0
Plus constant: 0
Compensator
Compensator terms of reference: ±15'
Accuracy: >0. 3"
Sensitivity
Round bubble accuracy: 8"/2mm
Dsz2a: 1°/1gon
Size and weight
Instrument net weight dsz2a: 2. 15kg
Dsz2a: 266 mm x 145 mm x 148 mm
Terms of reference
Dustproof and waterproof: ip67
Working temperature: -30°c ~50°c
This information is for reference purposes only and in order to continuously improve product performance, please understand that any changes in all pictures and performance parameters on this colour page are not notified
