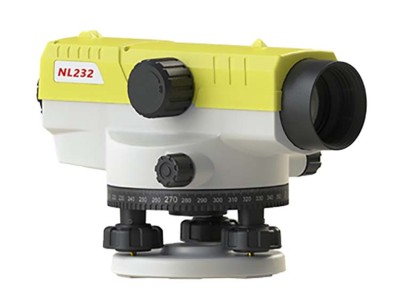

South nl132/nl232 automatic levelifier

Product overview

The nl232 round-trip error of ± 1. 0 mm, 40 mm large mirror caliber per kilometre, salud, stable, large chassis resistant to tremors, long light paths, clear imaging. Optical plating, embedded waterproofing, better sealing, full metal body grinding, shock resistance and greater clarity of large calibres and high multipliers. Big rubber wheels, leg wheels。

Technical indicators

Product type: nl132/nl232

1 km round trip: 1 mm

Telescope imaging: positive

Telescope multiplier: 32x

Mirror valid calibre: 40 mm

1 °20 on the field of sight

Distance: 0. 6 m

Multiplication constant: 10. 0

Round bubble accuracy: 8"/2mm

Dtp value: 1°/1gon

Tray form: external

Type of compensatoryr: air blocker

Scope of compensation: 18

Compensatory accuracy (sec/min): 0. 3

Temperature range (°c): 20 ~ 50

Hand wheel, foot wheel: abs

Top cap: abs

Instrument net weight (kg): 1. 5

Outer dimensions: 230 x 150 x 130 mm

This information is provided for reference purposes only, and in order to continuously improve product performance, any changes in all pictures and performance parameters on this colour page may be made without further notice
