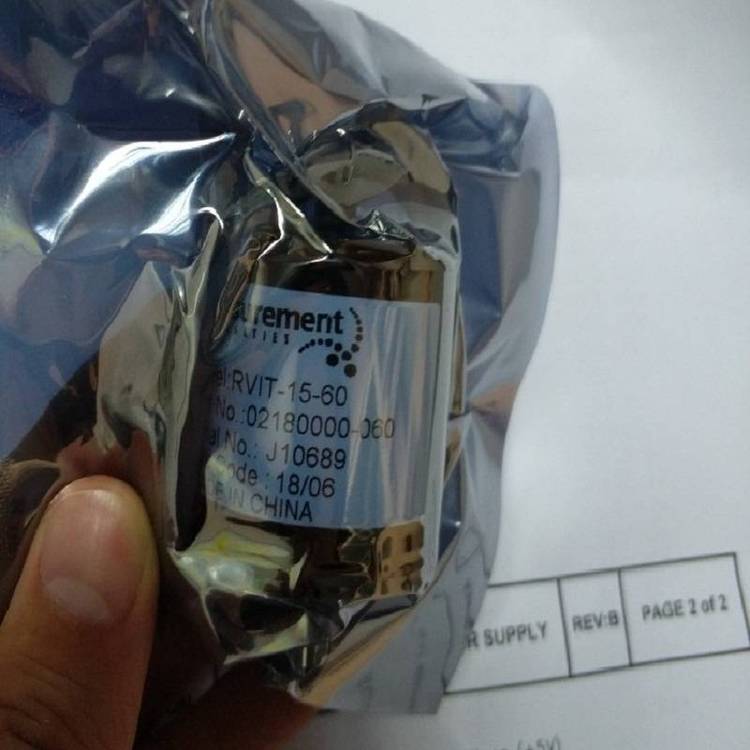

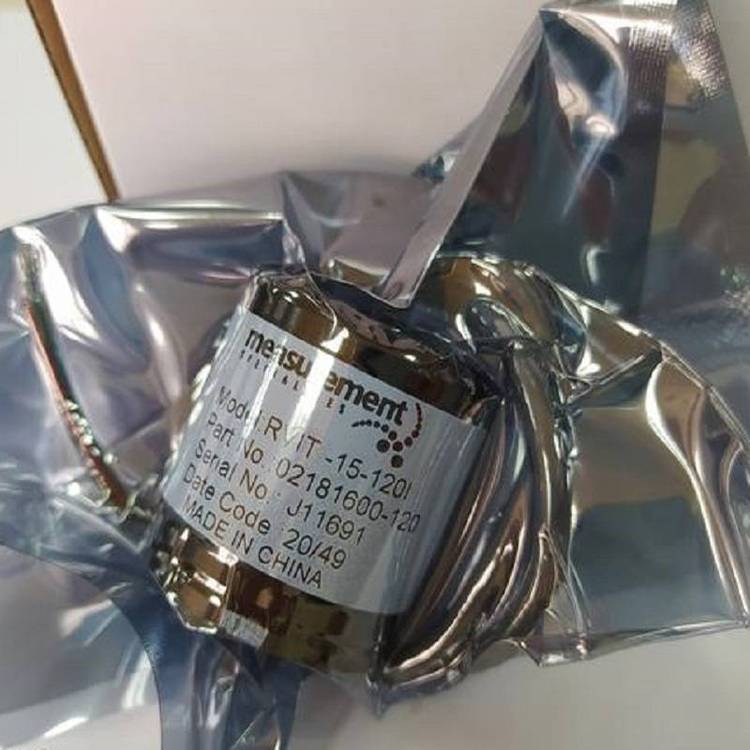

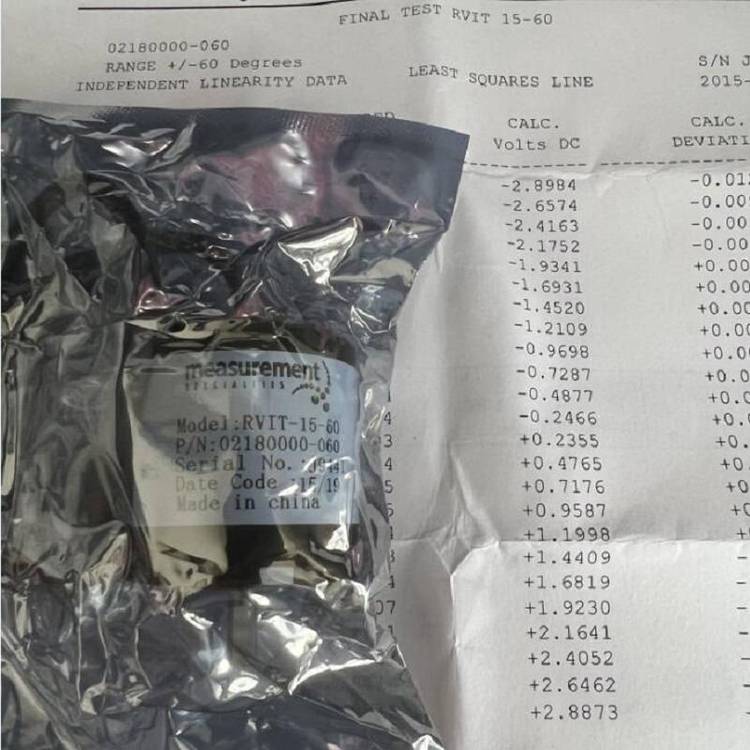

Meas original rvit-15-60 angular migration sensor position measurement

When the rvit-15-60 sensor works, the light disturbance fluid plate rotates along the sensor axis, thereby altering the electrical sense of the printed circuit. Changes are made through the acquisition of automatic treatment circuit measurements. The signal was then converted to a linear direct current voltage output that is positive to the angle of the rotor axis。

Output: 1-5vdc, 4-20ma

Measurement: 0-120°

Envelope: pcb

Working temperature range: -25°c ~85°c

Precision: 0. 25%

Power supply: ±10-24vdc

Characteristics: non-exposure to trans-velocity sensors, aluminium shell encapsulation

Electrical connection: 26awg, pvc insulation material

Typical application: industrial control, valve position, leaf position。
