Cqp30-d aerodynamic brake plate size: φ1270 mm x 30mm
Aerodynamic brakes; cqp 30-d; sy/t 6727, sy/t 6801 working gas capacity: 1400 cubic centimetres; total gas volume: 3,000 cubic centimetres; weight: 68kg; application of brake blade thickness: 30 mm; application to ambient temperature 20°c-+45°c brake plate size: sol 1270 mm x 30mm; details are provided in technical agreements or drawings
Qp12. 7-a, qp12. 7a-b, qpl12. 7-b, cqp12. 7-a, qp12. 7-c, qp30-d, qp25. 4-d, cqp20-d-b, qp30-d

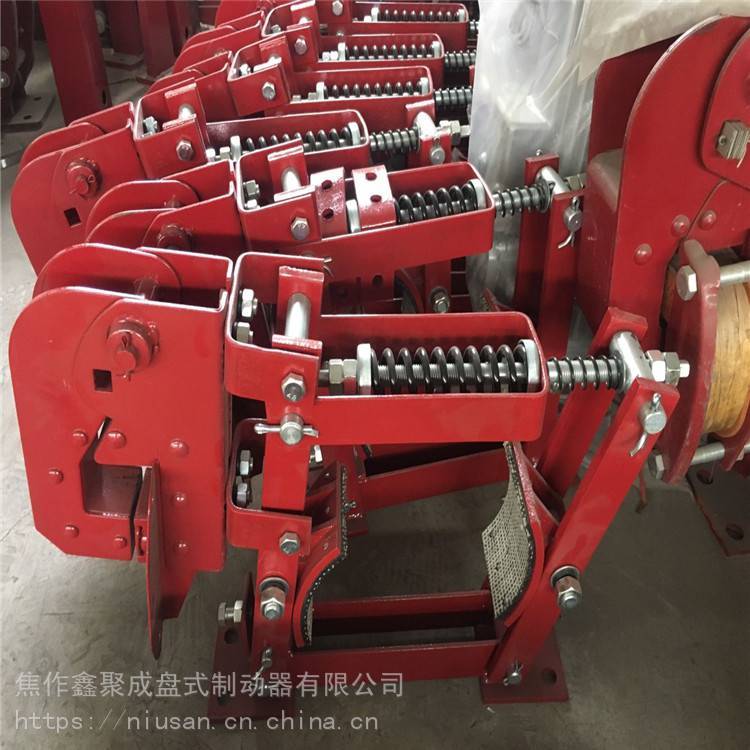

Lock the nut
Left brake arm
Right brake arm
Left break
Self-adjusted pole
Adjustmentrod
Breathe in
Inlet g1/2
Airbag
Gas bag
Ring
♪ ring
Brake in the middle arm
Brake arm
Retouch bolt
Adjustement bolt for retreat dissertation
Return spring
Return spring

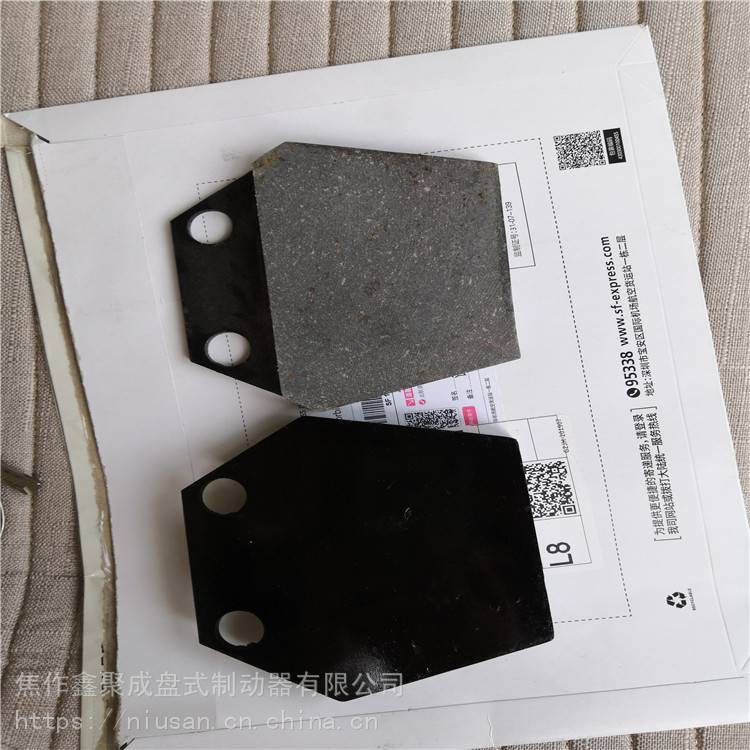

Brake blocks
Blake pad
Scraps

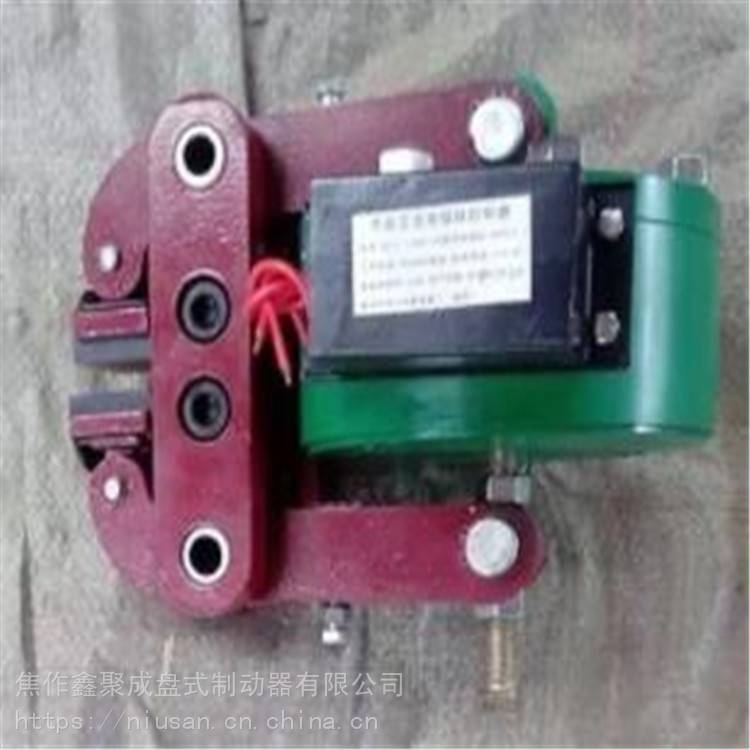

Dcpz12. 7-250; dcpz12. 7-300; dcpz12. 7-400

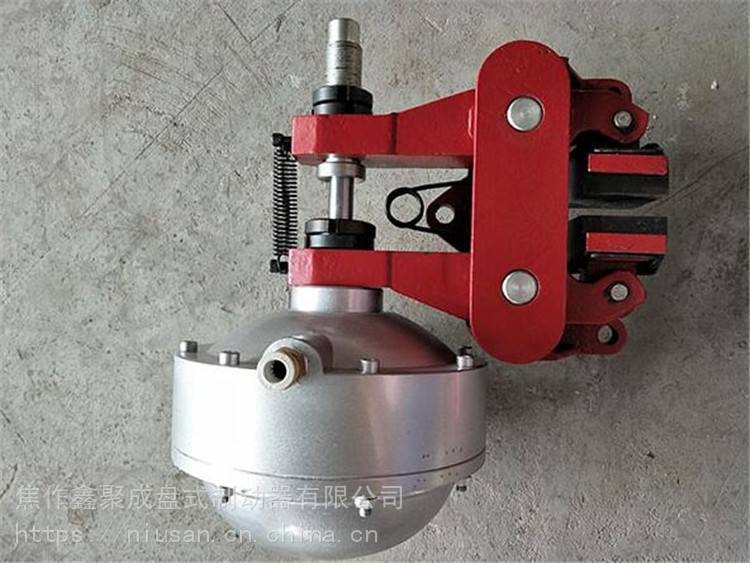

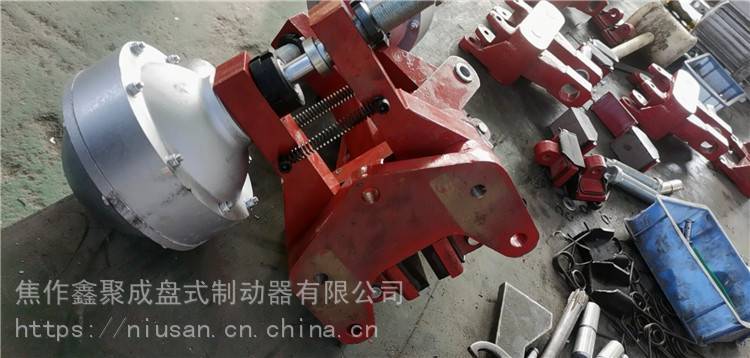

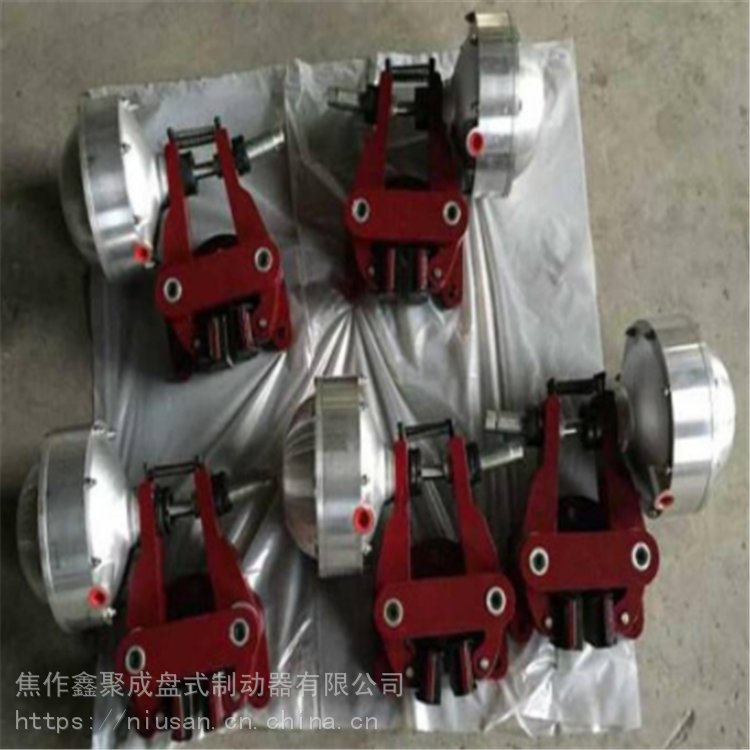

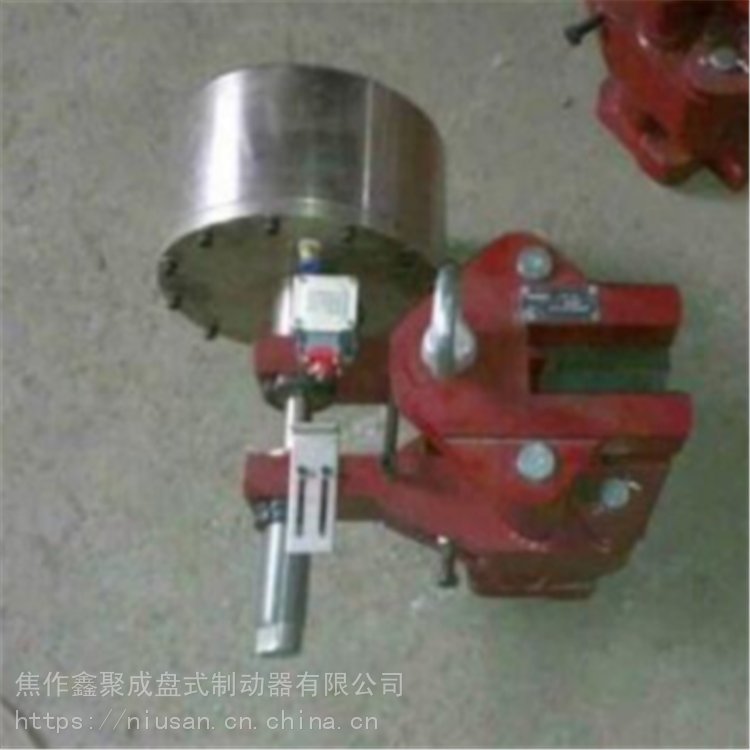

Cqp30-d is a long-lived aerobic-discretion brake, which is widely used in the brake and deceleration systems of mechanical drives such as lifting, transportation, metallurgical, mine, port, construction, etc。
The brakes are carried out in a method of work, which is air-pressed, spring-released and has simple structure, small size and light weight. Its brake cushions are asbestos-free materials, are green, and are designed in a spring card setting to replace them easily and quickly。
Main technical parameters (reference model cqp30-d):
Modified power rectangles: about 1400 nm
Work pressure: ≤7 bar
Brake disk effective radius: 0. 065 m
Environmental temperature application: -40°c ~ 60°c
Installation: horizontal installation
Gas capacity: working gas capacity approximately 300 m3 and total gas capacity close
Weight: approximately 68 kg
