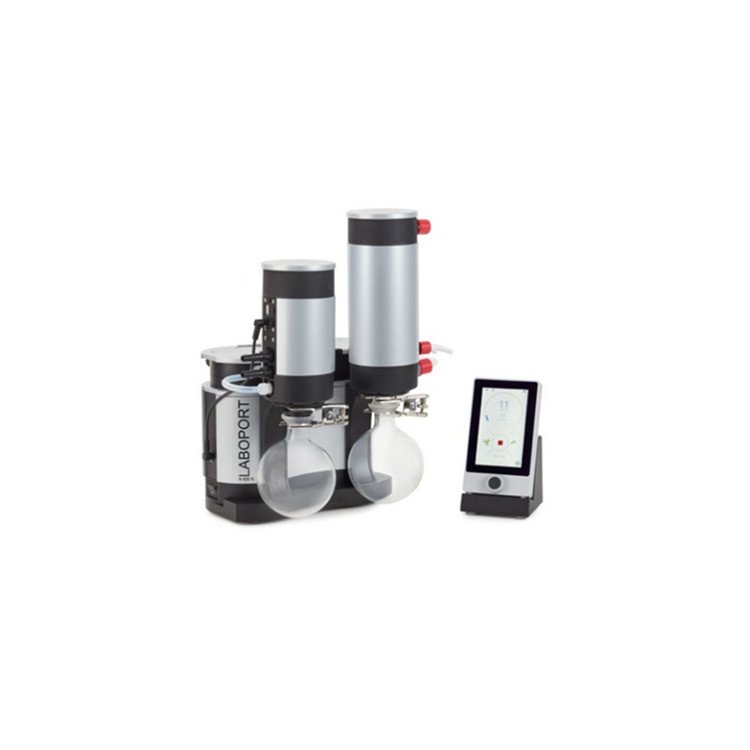

Product name: knf vacuum pump system labopot sc 820 g cn
Product type: labopot sc 820 g cn
Product description:
Vacuum pump systems resistant to chemical corrosion, including diaphragm vacuum pumps resistant to chemical corrosion, floors, separators on the inhal side, high performance condensers on the pressure side and vacuum controllers. It is well suited for evaporation and other applications that require vacuum control。
Performance characteristics:
▪ automatically and accurately identify and monitor boiling using integrated slopes points
▪ high recovery rate even with low boiling point solvents
▪ remote control, which can be operated from an externally closed ventilator
▪ simple intuitive control through the display of a touch screen and an accurate spin button
• four operating models for almost all common laboratory applications
▪ environmentally friendly
▪ integrated gas ballast valves
▪ integrated rotation speed control to achieve accurate vacuum control
Parameters:
▪ max traffic [l/min]: 20
▪ maximum vacuum [mbar abs.]:6
Work pressure [bar]: 0. 1
▪ voltage [v]: 100 ‒ 240
Frequency [hz]: 50/60
▪ protection level: ip30
▪ weight [kg]: 13. 35
▪ dimension w x h x d[mm]
▪ vacuum pump system: 347 x 416 x 260
▪ control 162 x 96 x 51
▪ extension base: 96 x 88 x 101
Origin: germany
