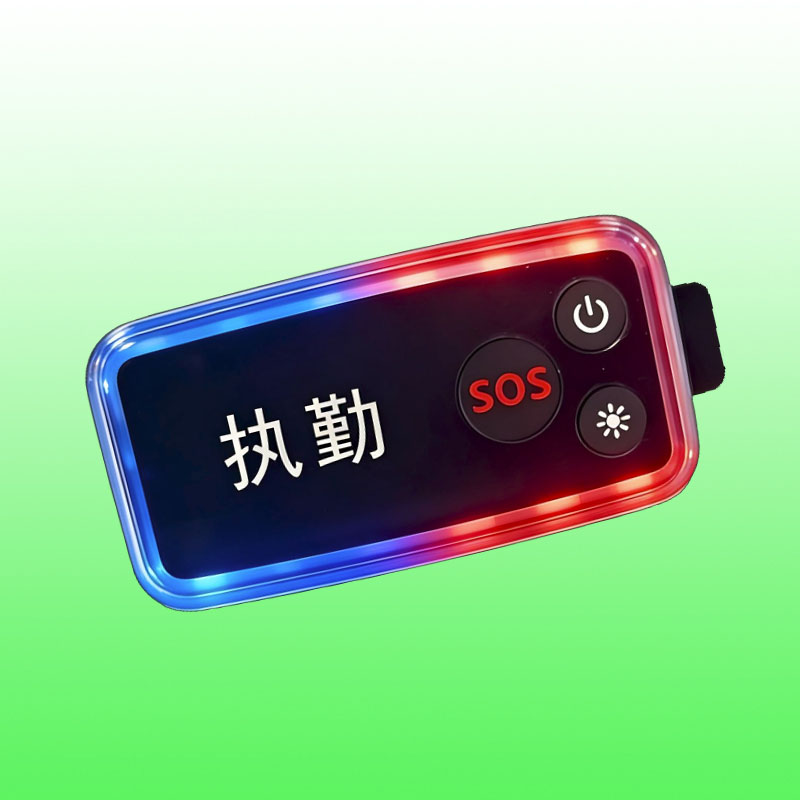

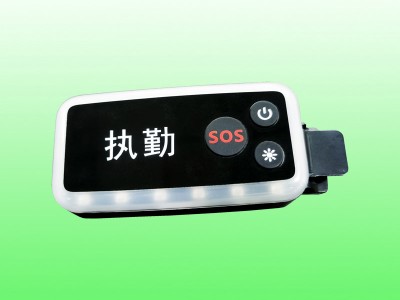

A description of the gord smart shoulder lamp product:
The goethe smart shoulder lamps, a smart shoulder lamp designed for highway operations and operations, are innovatively integrated into the map navigational connection alert based on the preservation of the conventional shoulderlight security alert core (gedeBi-map) to build a safety system for all-link accident sites “on-site alert-position upload-navigation early warning of navigation maps”. The product is positioned at the core of “technology-enabled traffic duties, operations, pre-empting the risk of secondary accidents”, filling the information fault between front-end disposal at the site of an accident and back-end traffic alerts, through the deep integration of hardware equipment with map navigation ecology, and providing an entirely new solution for the safety of high-speed operators and road traffic order。
Name of product: smart shoulder lamp
TypeNo. Xh-zhjd-02
RuleGrid: 79mm*39mm*18mm
Technical parameters:
BoxMass: pc+abs plastic shell
LightSource: group 12 lights high-lighted led blue flash
Position accuracy:Gps/beidou double model position, 3 seconds to complete early warning delivery。
Car alert: integration of goth, 100A 2-5 km advance warning for the remote navigation of the du mapLee's warning broadcast。
Battery capacity:3. 7 v/110 mah pure cobalt high performance batteries
Charge method:4pin pogopin (5v-1a charge)
Charge duration:About 1. 5 hours
Extension:≥20 hours (15 seconds of frequency of reporting)
Key function: power key, job report key, flashlight key
Working temperature:-20°c ~65°c (battery survival will be reduced below 0°c)
How to wear it: a gold clip
Functional description:
1. Double warning safeguards: high visibilityThe led light source supports multiple modes such as constant light, flash, etc., penetrating in a complex weather with strong permeability and precision in defining field fields of operation。
2. Map linked early warning: one key upload of high accuracy operational position to gothMap of 100du, real-time voice transmission, alerting rear navigators, extension of warning。
3. Optimistic and efficient operation:The two-step “on-board - confirm position” completes the core movement and adapts to the emergency scene at the site。
4. Precision and rapid transmission:Gps/beidou double model positioning (accuracy 1-3 m) with three seconds to complete early warning delivery。
Use scene:

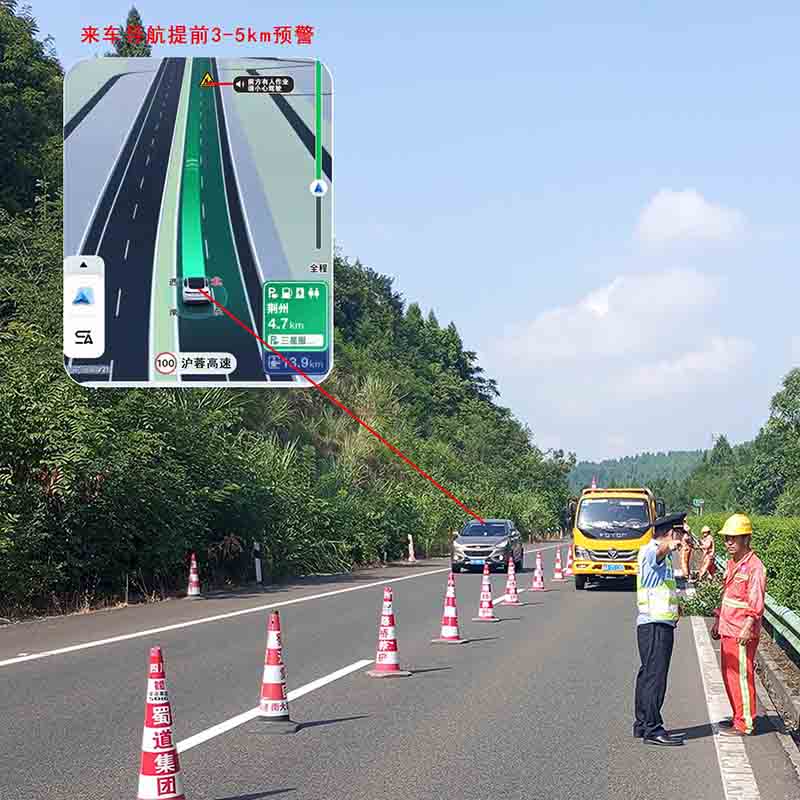

Maintenance of the construction of the highway: construction personnel wear shoulder lamps, use red-blue flash alerts and map alerts to secure the location of construction and early warning of arrival。
Traffic duty, accident management: when a traffic disposal highway accident occurs, the incoming smart shoulder light is activated to define the area of operation and to alert the rear。
High-speed road clearance operations: applicable to highway clearance operations, providing operational positioning alerts。
Bad weather response: under low-energy weather conditions such as rain, fog, snow, etc., red and blue flashlights enhance warning effects and alert drivers to road conditions。
