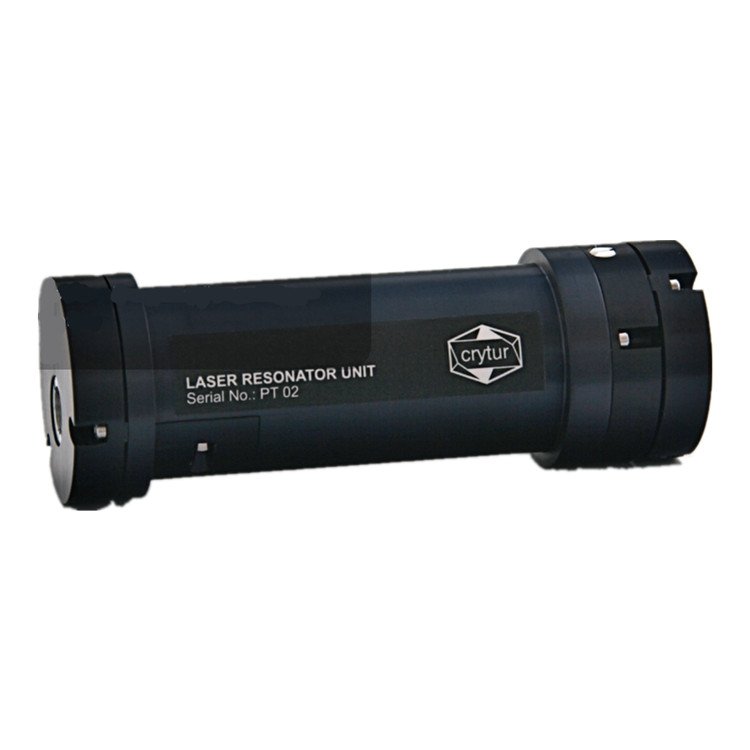

Crytur vibrator pt 02
Product type: pt 02
Product description:
This compact resonator provides a good solution for military and civilian ranging applications
A compact q switch resonator provides laser optical devices provided by crytur in compact, durable and shock-proof boxes。
Size 120X32 mm is the ideal small size, easy to install solution for various applications. A good beam contour and a very small dispersion permit the use of this laser head in the structure of the range equipment。
Performance characteristics:
• balancing contours
• earthquake resistance
• resilient for temperature change
Technical parameters:
• model: pt 02
• origin: czech republic
- laser signature
• wavelength: 1064 nm
• pulse energy: up to 35 mj
• pulse duration: 14 ns
• dispersion: not exceeding 0. 9 mrad
• pulse repeat frequency: 1,5 hz
• sudden pattern: 5 hz within 4 seconds
• output energy stability: not more than 5 per cent
Mechanical properties
- multiple machine shock resistance
• impact acceleration: 10g
• action time: 5 10 ms
• quantity: 50
- sine vibration intensity
• frequency range: 5,300 hz
• increase speed amplitude: 2g
• operation time: 60 minutes
• working temperature: -35°c to +50°c
