The 90xl dialysis machine is an advanced portable multifunctional instrument to measure the conductivity, ph, temperature and pressure of dialysis from the blood dialysis delivery system and dialysis from the blood dialysis clinic。

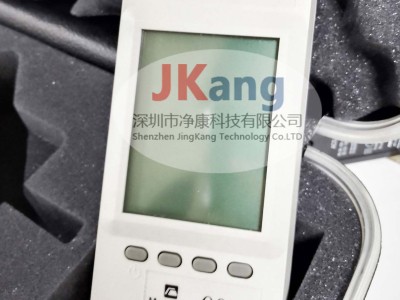

The 90xl transtrometer is a modular system. The system consists of display and sensor modules. The display module is a system controller with large monitors, microprocessors, circuits, keyboards and rechargeable lithium ion batteries. Separate sensor modules can be used to measure conductivity/temperature, ph or pressure. The sensor module contains appropriate sensors and circuits for measuring the parameters required for the sample solution. A maximum of four sensors can be used at the same time and all parameters are displayed on the display module screen。
Calibration of blood dialysis devices
Mesalabs 90xl hemometer, united states, is a dedicated instrument for analysis of the performance and quality of liquid for blood dialysis
Technical parameters for the 90xl blood dialysis machine quality detector product
Multifunctional portable online blood dialysis analysis instruments
Main parameters for detection: conductivity, ph, temperature and pressure
:: modularized design, where independent detection modules can be used to detect parameters such as conductivity, temperature, ph and pressure
• high stability and precision, with a high degree of precision, while maintaining excellent long-term stability regardless of the harsh conditions of use
:: a strong free combination, with the three probes available at any one time
• easy to operate, large screens can also display all parameters measured by the plugged probe, with an online help embedded in the instrument
• transmission rate analysis
Temperature analysis
Pressure analysis
Ph analysis。
Technical parameters for a 90xl blood dialysis machine quality detector:
Pressure:
Range: -600 to +1600mmhg,
Resolution: 0. 1 mmhg, maximum error > 0. 5% reading + 1 mmhg
2. Electricity
Range: 0 to 200. 00 ms/cm,
Resolution: 0-80us/cm 0. 1us/cm,
0-22. 00ms/cm-0. 001ms/cm,
22. 00-80. 00 ms/cm-0. 01 ms/cm,
80. 00 ms/cm above - 0. 1 ms/cm with maximum error of 0. 5%
Temperature
Range: 10 to 90°c, resolution: 0. 01°c, accuracy: ± 0. 1°c,
4. Ph
Range: 0 to 14 ph, resolution: 0. 01 ph, accuracy: ± 0. 1 ph
The 90xl has an excellent calibration process to guide users through the entire calibration process step by step. When the instruments require refurbishment or annual calibration, it is only necessary to return the probe to the company's after-sale service and not to send the entire aircraft back。
United states mesalabs 90xl hematode analyser standard configuration:
90xl hosts, 1 multi-functional detector, 1 pressure sensor, 1 ph detector, 1 set of connector lines, 1 bottle, 1 power adaptor, 1 box
