Characteristics:
1. Rapid response and self-recoverability
2. Small amount of effort
3. Good stability, low prices, small size, no noise
4. Installation is easy and has a long useful life
5. Large flow capacity, speed of reaction, low pressure, etc。
Details:
I. Products
The my31 type of pressure-sensitive electrical resistance is used mainly for wave absorption and voltage suppression of electrical equipment such as semiconductor components, rail signals, metering devices, communication relays, low-pressure distribution cabinets, etc., to protect various electrons and devices from damage。

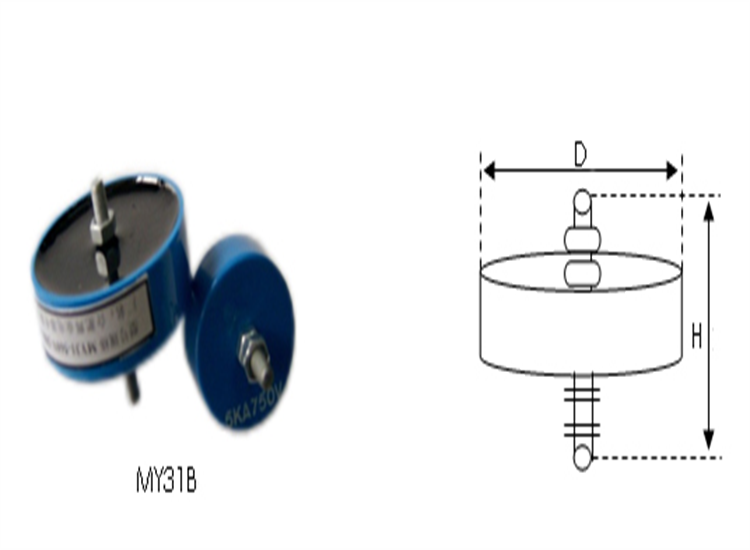

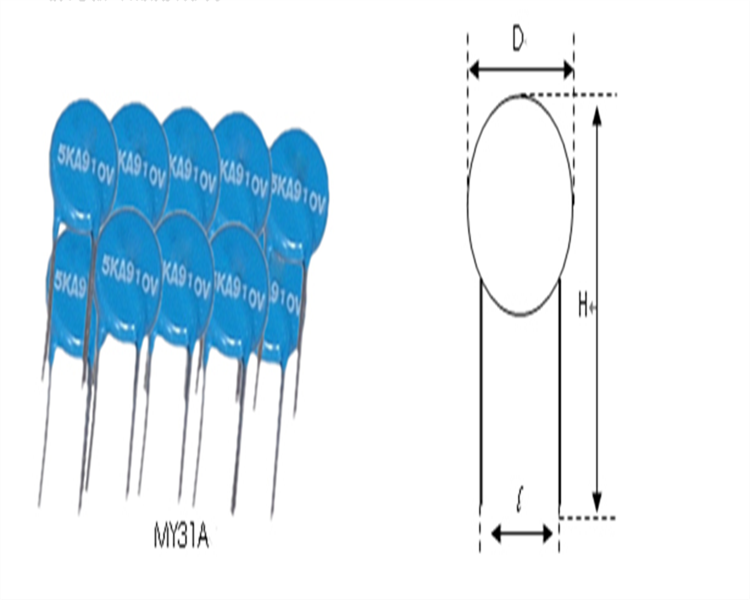

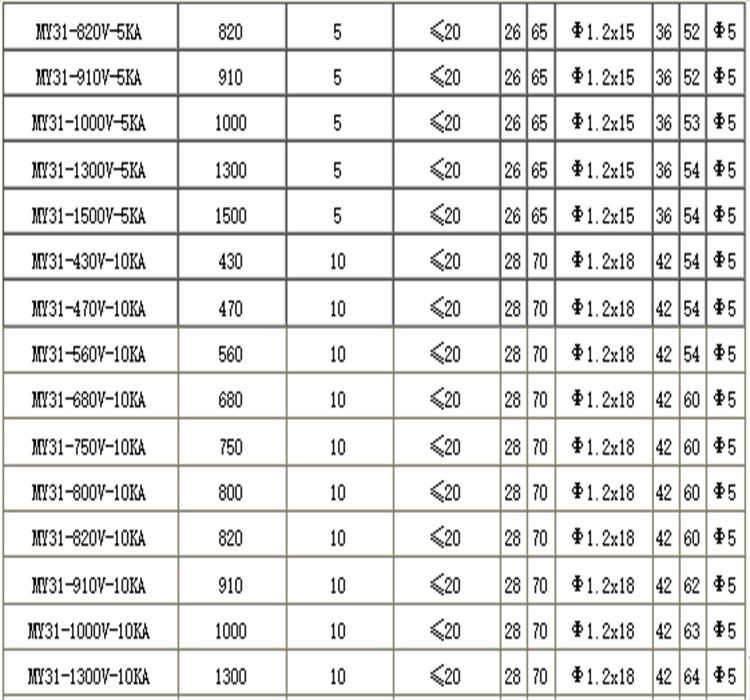

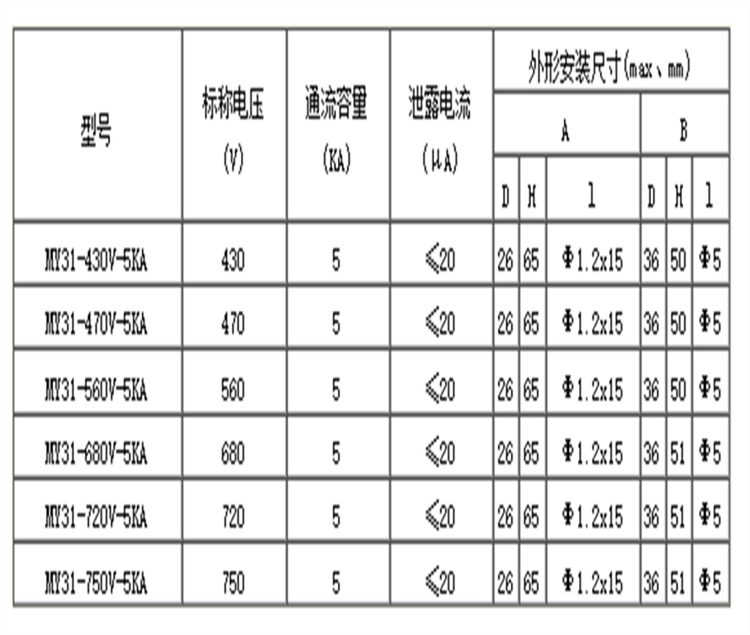

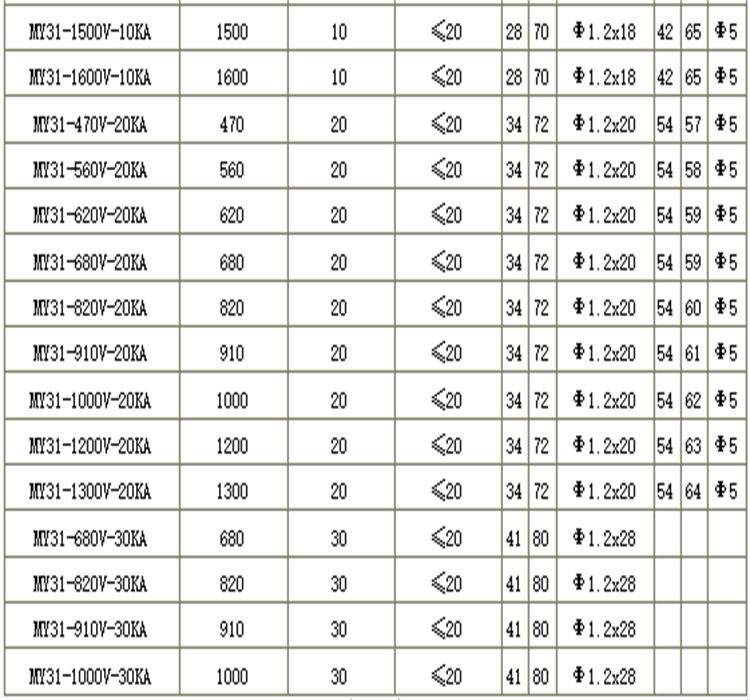

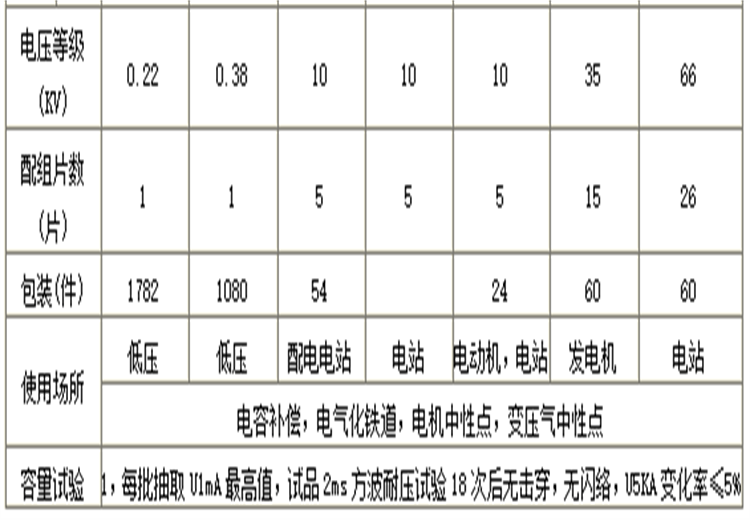

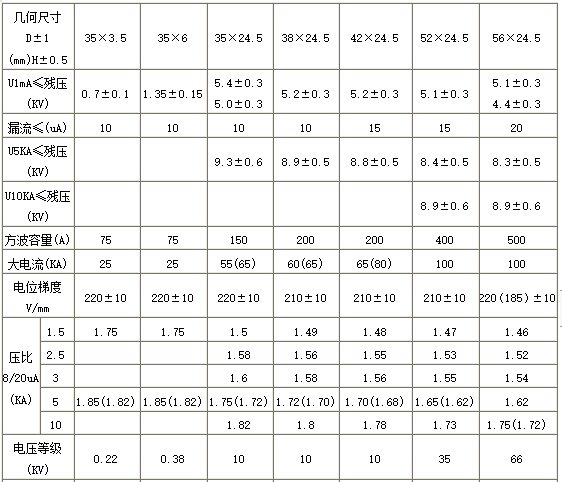

Technical parameters, shape and installation dimensions
Conditions for use
The environmental conditions for normal use of this product are as follows:
1 applicable to within and outside the household
2. Temperature of the environment: -25 + 40°c
3. Altitude: less than 2,000 m
4. Relative humidity: +45° 2°c > 95%
5. Mechanical vibration: 10g, 50±hz
6. Collisions: 10 g, 1000 ± 10 times
7. Constant wet heat: gb2423. 3-81 experimental conditions met
Salt fog: gb1093. 2-90 experimental conditions met
Fungus: the test jb method of gb2423. 16-90 is met to the level 1 standard。

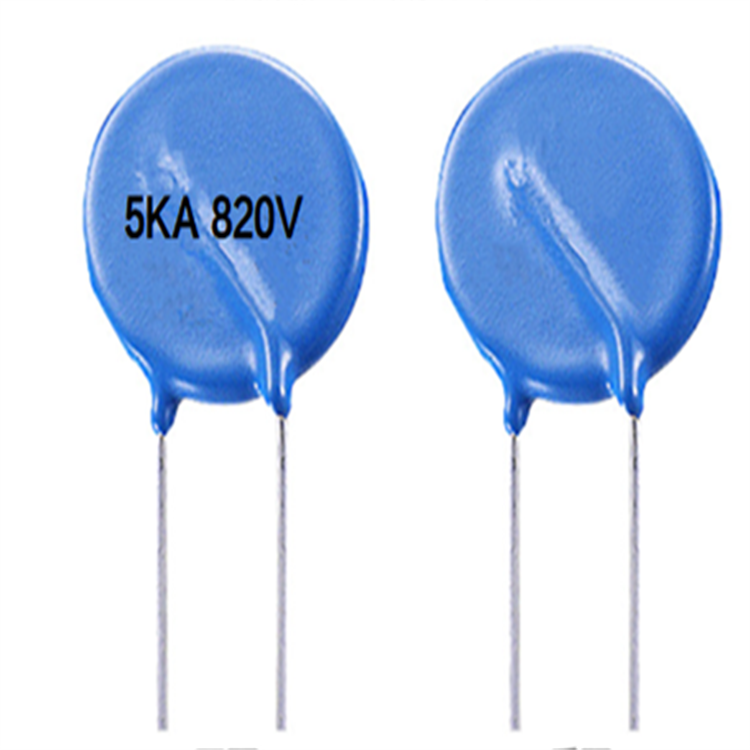

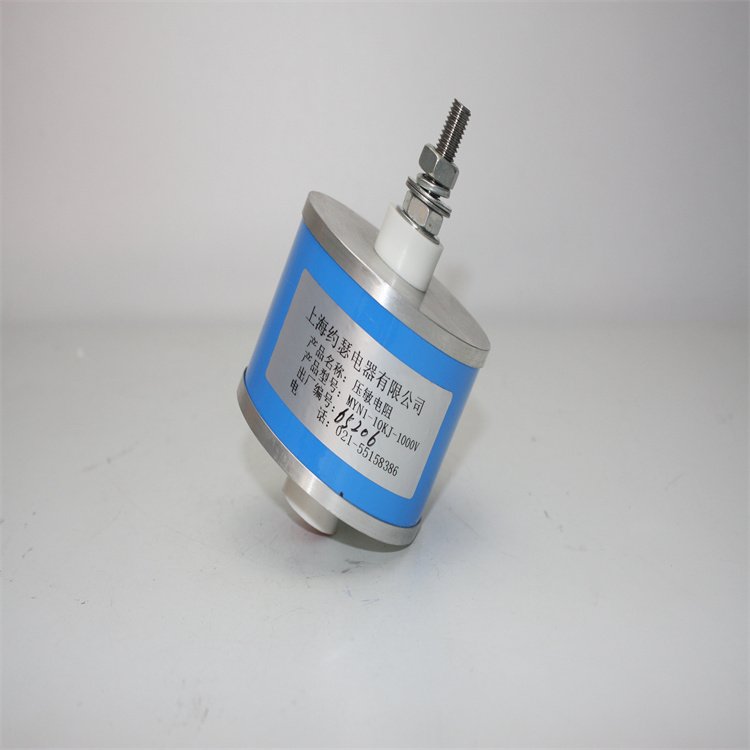

Type of my31 pressure-sensitive resister product:
My31-430v-5ka
My31-470v-5ka
My31-560v-5ka
My31-680v-5ka
My31-720v-5ka
My31-750v-5ka
My31-820v-5ka
My31-910v-5ka
My31-1000 v-5ka
My31-1300v-5ka
My31-1500v-5ka
My31-430v-10ka
My31-470v-10ka
My31-560v-10ka
My31-680v-10ka
My31-750v-10ka
My31-800v-10ka
My31-820v-10ka
My31-910v-10ka
My31-1000v-10ka
My31-1300v-10ka
My31-1500v-10ka
My31-1600v-10ka
My31-470v-20ka
My31-560v-20ka
My31-620v-20ka
My31-680v-20ka
My31-820v-20ka
My31-910v-20ka
My31-1000 v-20ka
My31-1200v-20ka
My31-1300v-20ka
My31-680v-30ka
My31-820v-30ka
My31-910v-30ka
My31-1000 v-30ka
My31-1000v-10ka
