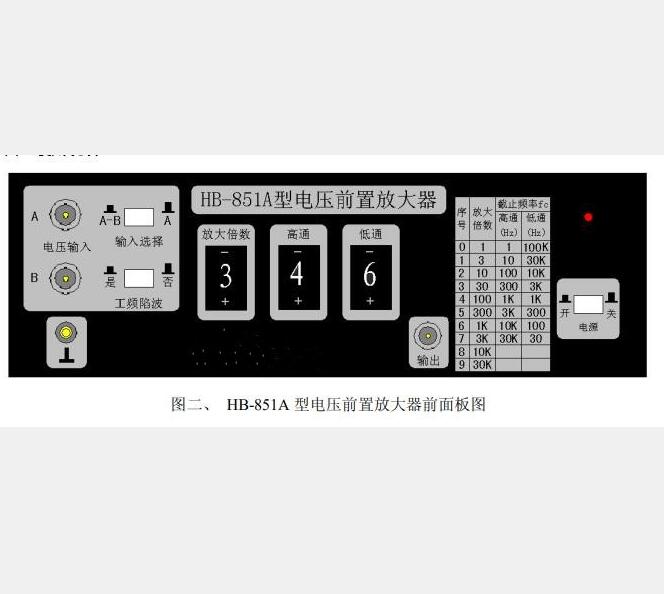

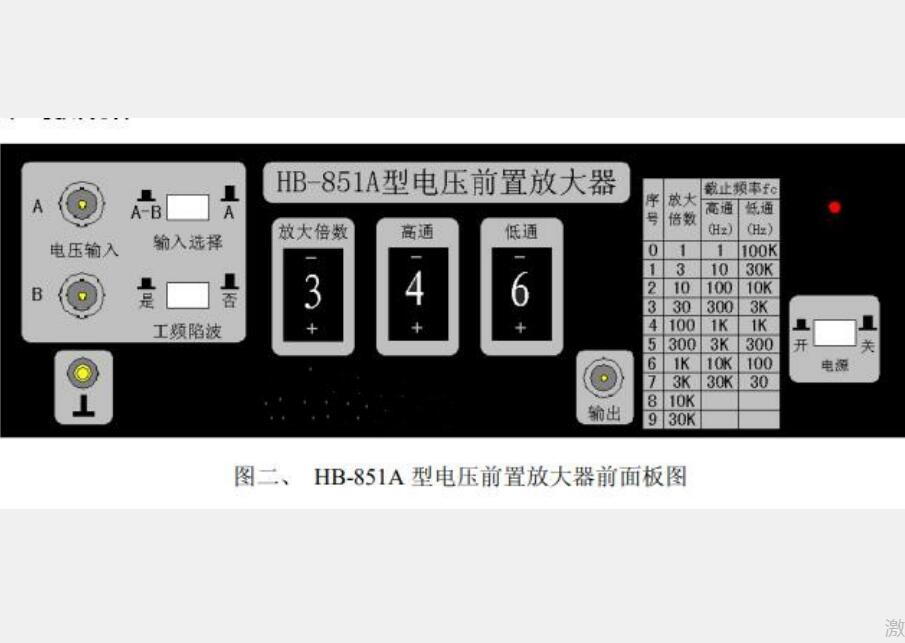

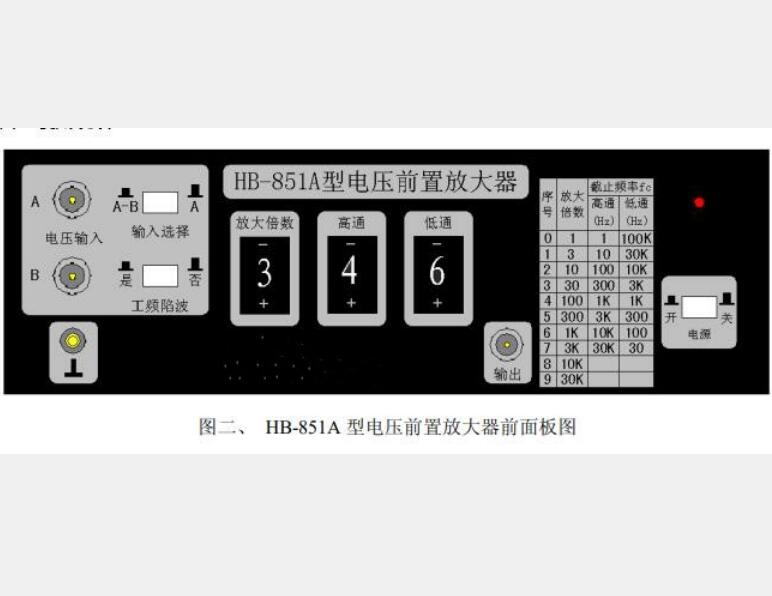

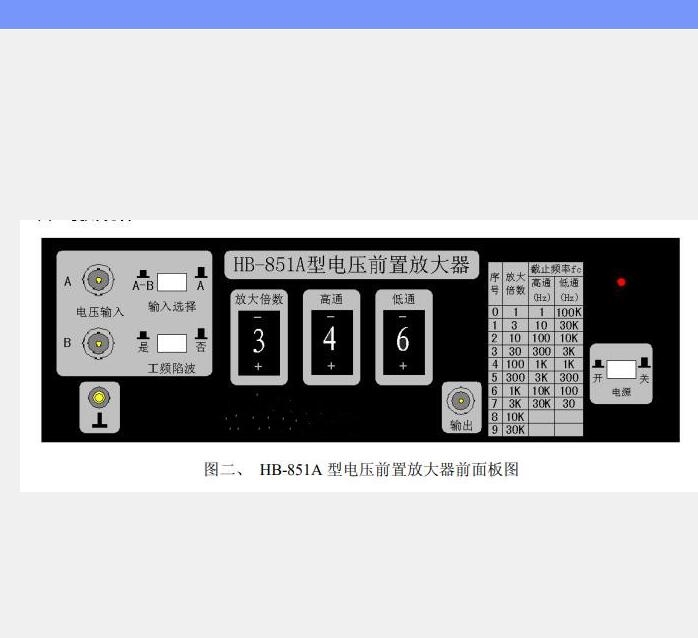

Pro-voltage amplifiers model: tm16-hb-851a treasury no. M350895
Number of channels: one channel
Frequency of work: 1hz - 100khz
3. Threshold magnification multiplier: 1, 3, 10, 30, 100, 300, 1k, 3k, 10k, 30k
4. Pressure input: one end: a input double: a-b differential input
5. Filters:
Cut-off frequency (hz): 1, 10, 100, 300, 1k, 3k, 10k, 30k
Low-access filter cut-off frequency (hz): 100k, 30k, 10k, 3k, 1k, 300, 100, 30
50hz work trapped:
6. Noise of voltage amplifier: enter short-circuit noise voltage (1khz): ≤2 nv / hz
7 entry resistance: 5m//40pf
8. Resistance: 1k
9. Pressure: ±5v
Ten currents: 5ma
11. Power voltage: ac 220v (1)(10%) 50hz (1)(2hz)
