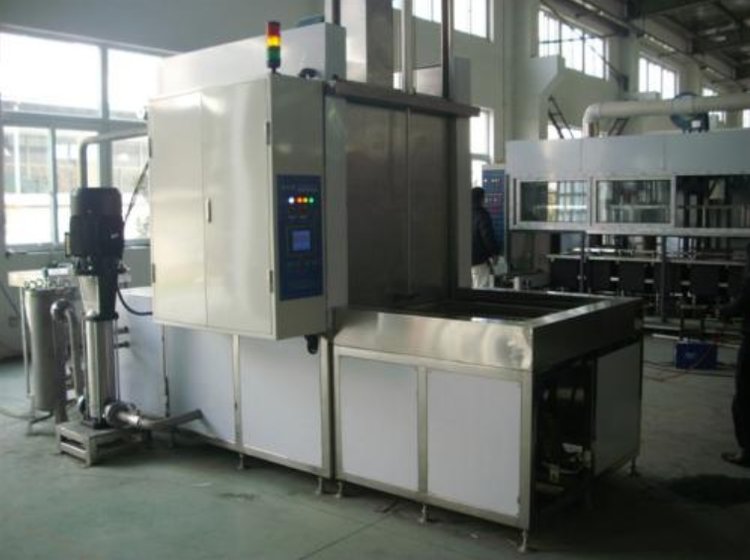

Full automatic large cylinders high pressure spray cleaner type: ksd-8000 qht
Use: for cleaning and drying of car parts。
Productive capacity: pre-set 50s, one at a time。
Theoretical production: cleaning 150 hours a day
Information on cleaning works: name of work: automobile parts (aluminium alloy) box
Purge: time chain box, pump pump body, time gear room。
Full automatic large gas cylinders with high-pressure spray cleaners cleaning media: pure water, water soluble washing agent。
Transfer mode: stainless steel chain structure, plane delivery by step。
Purge method: mobile (water knife) spray cleaning + oil track/snail hole fixed point ejection
Dry method: oil lanes/snail-lined spot-screeching + mobile wind knife cutting water + mobile high-pressure wind drying
(b) forms of assembly: set a single-size, different cleaning basket for different items, set a positioning basket, so that the items do not change during the cleaning and drying process; set a cleaning basket limit on the transport chain。
Full automatic large cylinders with high pressure spray washing equipment size: 3. 6 m x 1. 5 m x 1. 9 m (long x wide x high)
Equipment uses: removal of cutting fluids, metal scraps from the inside and outside of the project
Cleanliness: 2. 5 mg/piece
Production: 2/60 s (continuous)
Device direction: right and left exit (based on the operator facing the front of the machine)
Delivery mode: work is carried out using a conveyance chain and manual feed. Except for manual lifting (handling), all actions are automatically performed by washing machines and their auxiliary devices。
Full-automatic large cylinders with high-pressure spray cleaners powered (three-by-five), power source (user-provided): 380 vac (1)(10%), three-by-five system. 50 hz
Installation power: 45 kw, frequency 50hz
Run power around 25 kw
Working environment temperature: 40 c, humidity: 90%
Process: upper material - high-pressure positioning cleans an empty area of high-pressure spray and drift and a hot wind dry feeds
Cleaning cavity: d1,000 x h500mm
Full automatic large gas tank high-pressure spray cleaner type: rotary spray cleaner
Whole mass: inner cavity stainless steel。
Spray pressure: 0. 4 ~ 0. 6 mpa
Whole structure: stainless steel frame structure
Whole operating system: plc+ touchscreen or button。
Power: 380v, 50hz
Characteristics of the product of a fully automated large gas tank with a high pressure spray cleaner:
The spray cleaning cavity, the liquid tank and the main structure of the machine are welded using the stainless steel plate of sus304 and are beautiful and generous。
The whole transmission system uses stainless steel chain connections, which can be adjusted and reliable in speed, and the stainless steel transmission network is equipped with a nylon locator, which prevents the tank from moving away from its running position。
A stainless steel centrifugal pump and a stainless steel bag filter are used at all levels, with stainless steel nozzles and nozzles up and down, the number of nozzles to be determined according to the size of the car engine tank. The air-activated automatic closing of the vent cavity to the left and to the left, when the cavity is delivered to a specified position of the cavity, the transmission network stops and the automatic closing of the cavity is automatically closed。
The fully automated large gas cylinders with high-pressure spray-cleaner fluid tanks have an omlon thermostat that accurately controls the temperature of the tanks, extracts them from the tank water using stainless steel pumps, filters them through stainless steel filters and re-export sprays. Ensure clean-up liquid recycling。
Detailed machine specification parameters can be well configured according to the size of the cleaned car engine tank, and various types of non-platform machines may be ordered at the request of the client。
A unique collage framework design, with easy maintenance and beauty。
Power is strong and performance stable using imported voltage crystal exchange。
Power-modulated, multi-frequency ultrasound combinations, strong and fine。
The human interface is fully automated, plc or single-body mechanical, fast, secure, stable and clean-up。
One-time treatment was completed for rust removal, deoxidation, phosphorization and washing。
