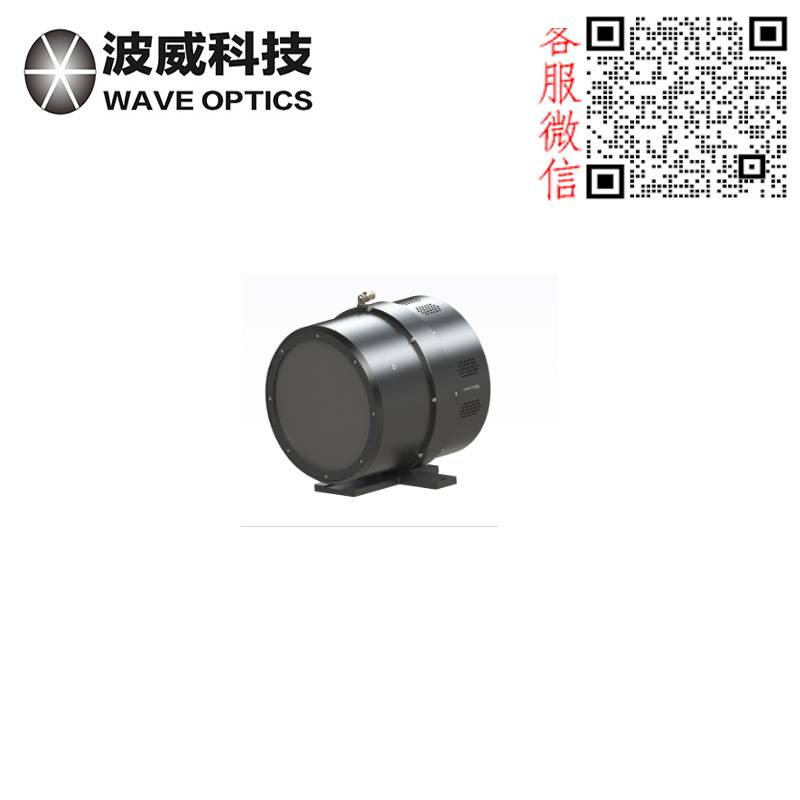

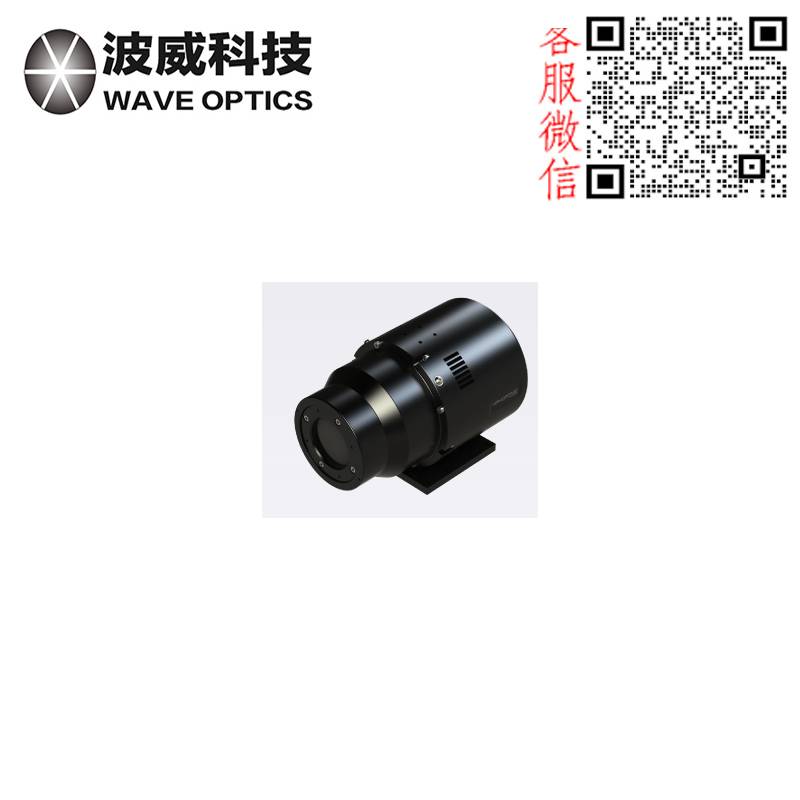

Photons science-enhanced ccd camera provides the ultimate low-light imaging at door control speed as low as 3 ns。
Iccd uses 18 mm image boosters with gen 2 and gen 3 photocathodes, 1 or 2 mcps to gain an increase of 104 to 106, and fibre-optic coupling to a ccd or cmos sensor with 1:1 defunct optics, providing 60 lp/mm resolution。
Iccd can provide a number of high performance functions, such as enhanced dynamic range, low door control up to 3 ns, automatic control of the booster door control cycle and enhancements to fit the range of 108 scene light, and correction within the camera to provide as clean a picture as possible from iccd。

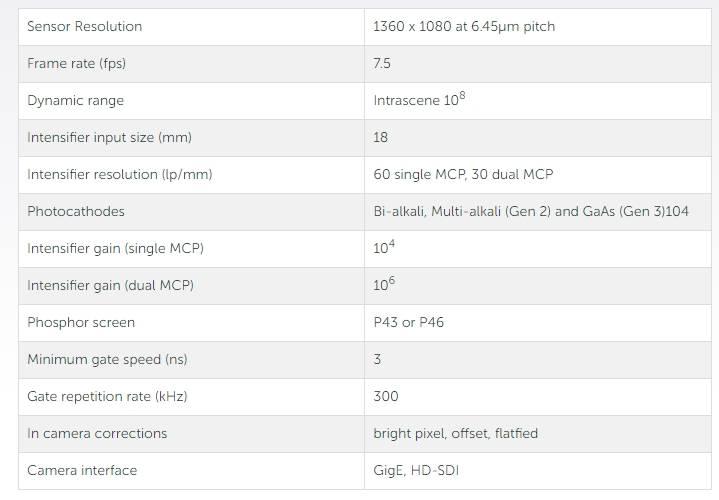

Main characteristics
18 mm 2nd and 3rd generation image booster
60 lp/mm resolution
High-dynamic range of 109 scenes. Internal
Low as 3 ns, repeat frequency 300 khz
Automatically calibrate and control the gain from the gainer and the camera to the specified light level
For camera correction;light pixels, offset, square
Genicam compliance
Application
Astronomy
Low light surveillance
Co-focal microimage
Single molecular detection/tirf
Fluorescent life test
Laser radar
Rapid light pulse analysis
Biological and chemical light
