Product model
Lk4-044 master controler
Lk4-054 master controler lk4-028-1 master controlr
Lk4-028/2 master controller lk4-048/1 master controller
Lk4-04/2 master controler lk4-058
Lk4-058/2 master controler lk4-148/3 master controlr
Lk4-148/4 master controller lk4-168/3 master controller
Lk4-168/4 master command controller lk4-188/3 main order controller
Lk4-188/4 master controler lk4-6 58/1 master controlr

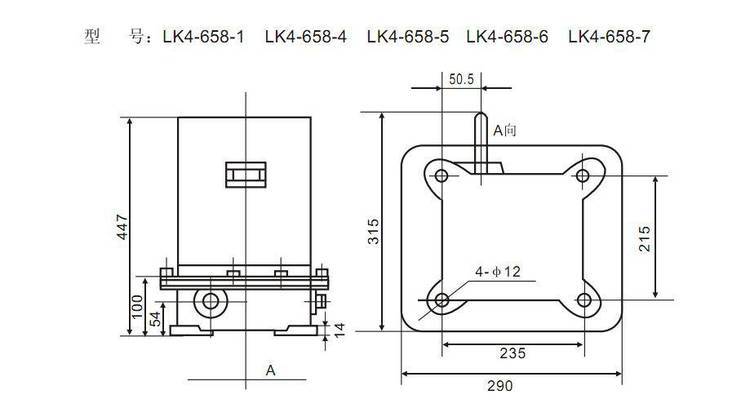

Lk4-658/4 master controler lk4-658/5 master controlr
Lk4-658/6 master controler lk4-658/7 master control
Lk4d-024 master controler
Lk4d-054 master controler lk4d-028/1 master controlr
Lk4d-028/2 master controler lk4d-048/1 master controlr
Lk4d-04/2 master controler lk4d-0 58/1 master controler
Lk4d-058/2 master controlr lk4d-6 58/1 master controlr
Lk4d-658/2 master controler kk4d-658/5 master controlr
Lk4d-658/6 master controller lk4d-658/7 master controller
Lk4d-148/3 master controller kk4d-148/4 master controller
Kk4d-168/3 master controler kk4d-168/4 master controller
Lk4d-188/3 master controller lk4d-188/4 master controller

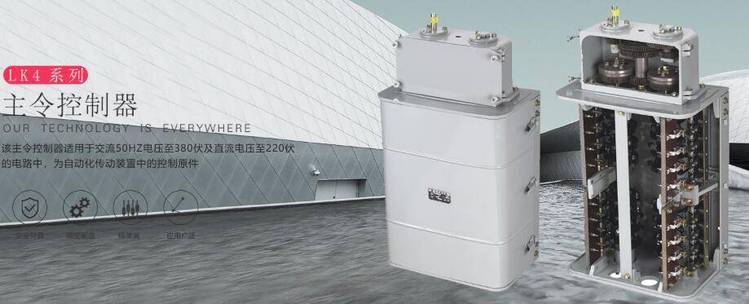

I. Use
The lk4 series master command controller is used for the exchange of electrical circuits with 50 hz volts to 380 volts and direct current volts to 220 volts, which are the control originals in automated transmission devices. The main command controller may be closed or disconnected in a certain order, either directly or through a speed-retarder connected to the operating machine, and the main command controller's contact is based on the operator's itinerary or corner. (can also be driven by auxiliary electric motors)。
The basic original of the command controller is cam and tactile assembly. The cam assembly is made of a combination of axes and roulettes. The cam disk consists of two identical semi-circles, each with ten holes and a trough at a distance of 18°. The cams have holes that can be moved around the fixed bolts at 10°30', so that the position of the tentacles to be controlled by the cam can be adjusted accordingly. The convection speed of the cam disk shall not exceed 60 turns/minutes due to the main command controller's ability to hit the arc and partial resistance of the institution。
Each roulette acts as a single circuit, and the number of roulettes corresponds to the number of circuits in the controller. When the main command controller has a larger number of circuits, two sets of cams are assembled, moving the head together with the silent head. At the same time, as required, the cam assembly of the main command controller can be rotated in combination, i. E., two cam assembly sets can be rotated at the same time, or the cam assembly of the first group and the cam assembly of the second group can be rotated in turn。
Technical data
The main command controller type, number of circuits, manner of placement, rate reduction ratio are shown in table 1, table 2
Model
Total circuits
Number of cams on each axis
Cam assembly rotation
Speed-delay ratio
Lk4-024
Two
Two
I don't know
Lk4-044
Four
Four
I don't know
Lk4-054
Six
Six
I don't know

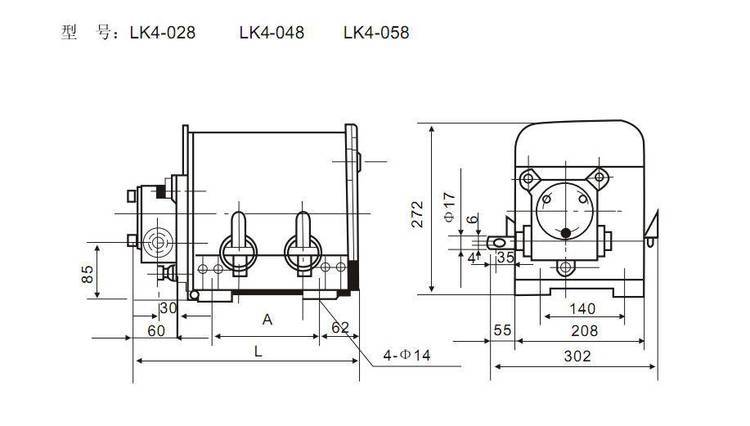

Lk4-028-1
Two
Two
1:30
Lk4-028-2
Two
Two
1:5
Lk4-048-1
Four
Four
1:30
Lk4-048-2
Four
Four
1:5
Lk4-058-1
Six
Six
1:30
Lk4-058-2
Six
Six
1:5

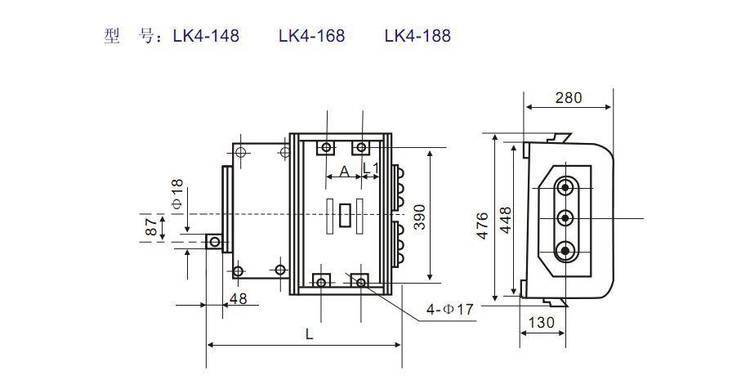

Lk4-148/3
8
Four
Serial
1:16. 65
Lk4-148/4
8
Four
Together
1:1 1:20 or 1:36
Lk4-168/3
16
8
Serial
1:16. 65
Lk4-168/4
16
8
Together
1:1 1:20 or 1:36
Lk4-188/3
24
12
Serial
1:16. 65
Lk4-188/4
24
12
Together
1:1 1:20 or 1:36
Table 3
Electricity category
Rating voltage
Quantification of thermal current (an)
Connectivity
Discrepancies
Power number cos+0. 05
Time constant of 7 seconds > 15%
Number of tests
Communications
380
10
100
10
0. 4
50
Straight
220
110
10
75
1. 5
Two
0. 01
20
3 the main command controller operates at 1,200 turns/hours, but no more than 60 connections per minute.
4. The main command controller rotates at 1,200 turns/hours, communicates 200,000 connections and 200,000 breakups, and direct currents can withstand 100,000 connections and 100,000 breakages. (of which connection time is 0. 2 to 0. 5 seconds). Post-test main command controller contact continues.
5 the main command controller is out of circulation and can withstand 1 million closures and break-ups, and its tentacles and springs can withstand 300,000 break-ups.
Iii. Activation rationale
The tentacle is severed and the cam wheel 3-hourwise on axis 1 rotates。
The closed cam 2 is moved to the rolling 9 and placed on it, while the reverse tentacle supports the 8 touch bridge 6 and connects to the 4 and 5 transects and connects the circuits. Fixed locks12 are held by spring 13, which supports the gap at the point of contact of 8 and fixes 3 in closed position。
Breaking cam 7 touches the roll 11 and forces it to turn the fixed locks 12, thereby supporting the release of the tentacles, which quickly rotate around its axis due to the role of spring 10。
Maintenance and custody
In the course of its use, the controller can replace the aerodynamic contact if exposure and burns are detected。
Regular lubricant is added to the rotor's section。
The controller shall not be subject to rain or snow during transport and custody and shall be stored in a warehouse with a relative humidity of not more than 80% (equivalent to +40°c and not less than -25°c) and a relative humidity of not more than 80% (equivalent to +40°c)。
