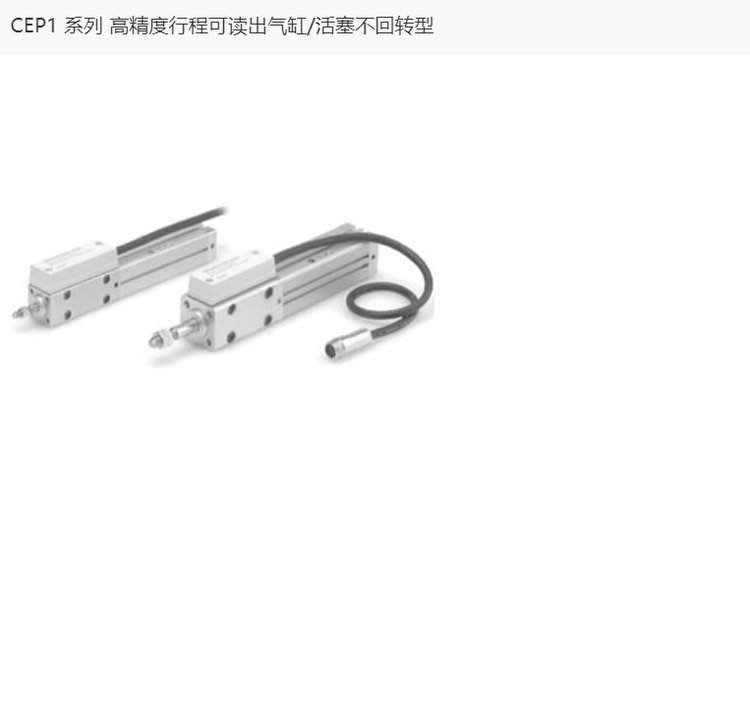

Large description cep1 series high precision processes read cylinders/pistols do not change back
• course readable cylinders
Field description field take value take value take value describe
Installation form f side flange
Zero, twelve
75 mm
Do you have a plug
Sensor cable length l 3m
Magnetic switch model m9bvl no-touch magnetic switch, directly out of line, with indicator light, 2-line, vertically out, 3m long lead, applicable to voltage: dc24v (dc10-28v)
Magnetic switch count. S-1
Custom specification - standard
Other characteristics
Field description
Plumb calibre m5x0. 8 mm
Move it in a single pole
Type of cross-string m
Guaranteed to withstand pressure [mpa] 1. 5 mpa
Minimum use of power [mpa] 0. 15 mpa
Maximum power use [mpa] 1. 0 mpa
Ambient temperature 0°c ~60°c
Use piston speed 50 to 300 mm/s
Buffer form no buffer
No oil
Do not rotate precision [°] ±2 °
Process length allowance minimum value [mm] 0 mm
Process length allowance maximum value [mm] 1. 0 mm
Attention
Please avoid bruises from the slide of the piston。
Please avoid use where there is strong electromagnetic noise (where a strong field of power, a strong magnetic field, a high voltage pulse occurs)。
Otherwise there could be trouble. If use in these environments cannot be avoided, take appropriate responses。
• power fields: noise filters, variable resistance, iron oxygen magnet cores, etc。
• strong magnetic field: sensors are partially packaged with magnetic material。
• where high voltage pulses occur: high voltage pulse shielding。
Do you think you'll use gas in gas tanks, electromagnetic valves, filters, anything like that
Our division has professional technicians who can help with modeling, design, cost control
The brands of japanese smc/ckd, german festo, yader, etc., also support home-grown customization
Good price, good delivery
Make sure it's all new and original. It's not artificially damaged for one year
We can get in touch with the next offer, our division can provide technical support, we can offer a brand-new original smc, we can customize the national product, 13707515090
