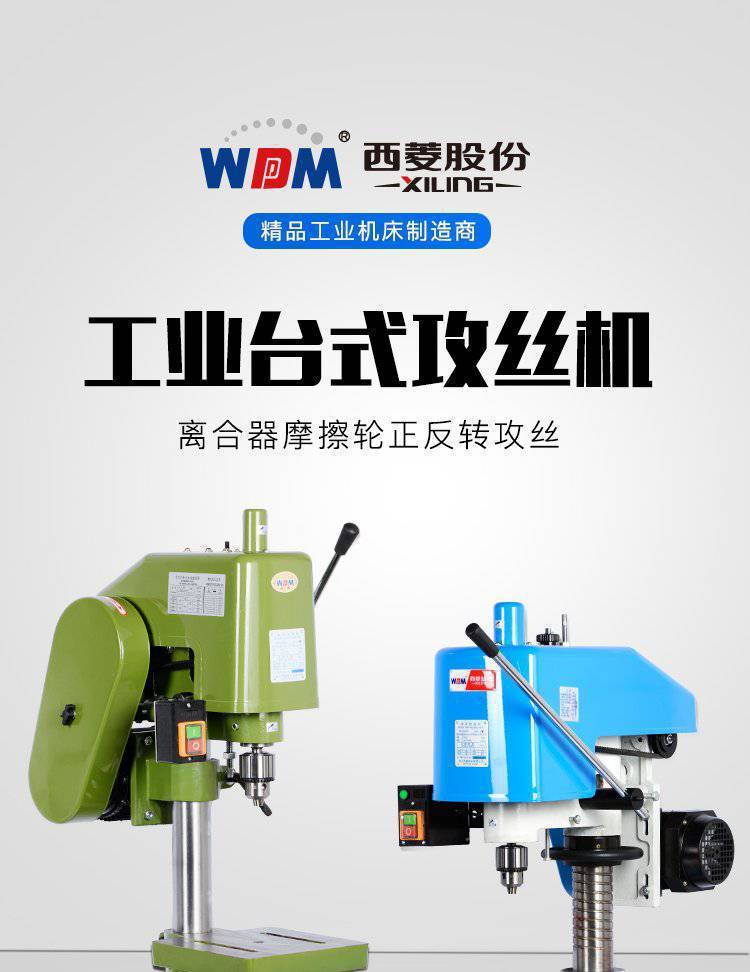

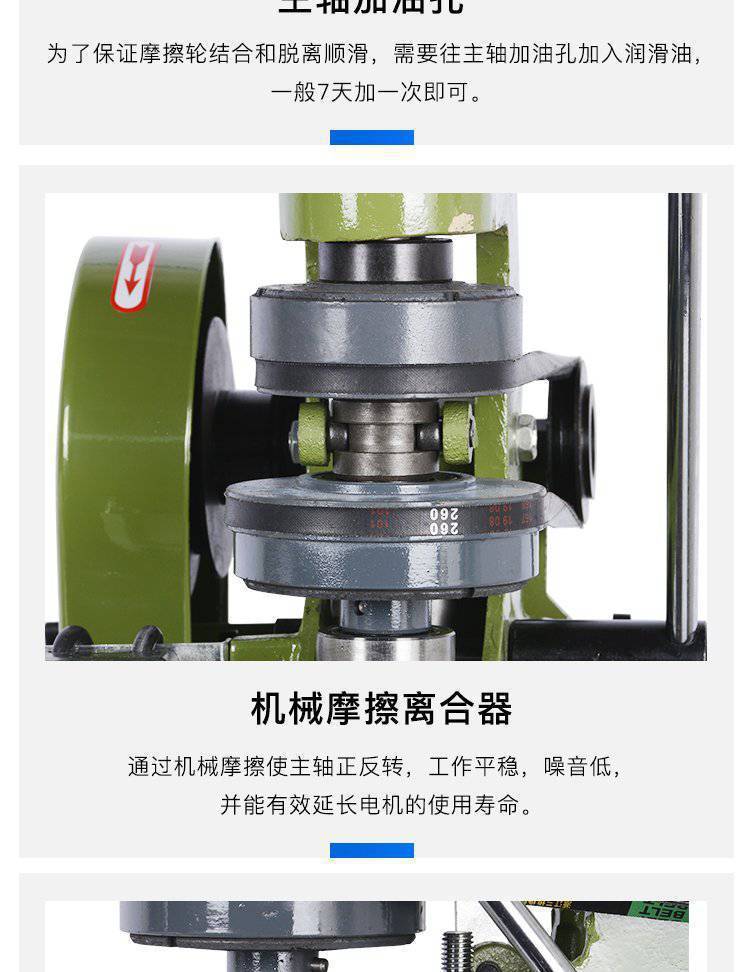

The swj-series filamental features 1. Are simple and operational; 2. The use of mechanical frictions to reverse the main axis has significantly improved the utility life of the electric power, its work is smooth, its noise is low and it has overload protection; 3. It can be used continuously and frequently in mechanical manufacturing, instrumentation, hardware tools, etc. The workstation may be tilted and the main axle boxes and workstations may be lifted or lowered。
Standard annex: 1. Drillhead 2. Splashhead m8-m24

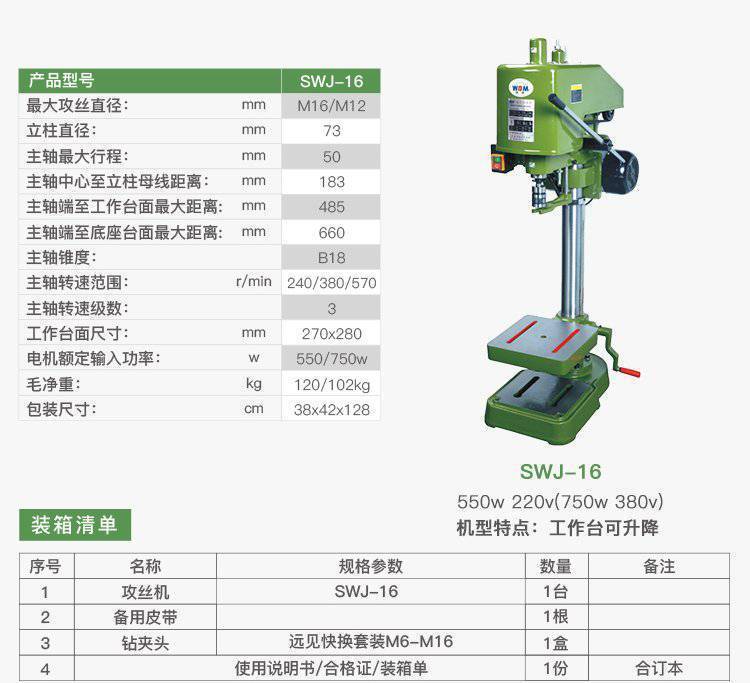

Type swj-16
Thrust diameter ( cast iron/steel) m16/m12
Main column 73 diameter
Main axis 50
Main axle center to pillar
Main axle to working table 485
Main axle to bottom, 660
Main axis b18
Main axle speed range 240, 380, 570
Main axle rate 3
Workspace dimension 270 x 280
Bottom size 520 x 310
Total height 1220

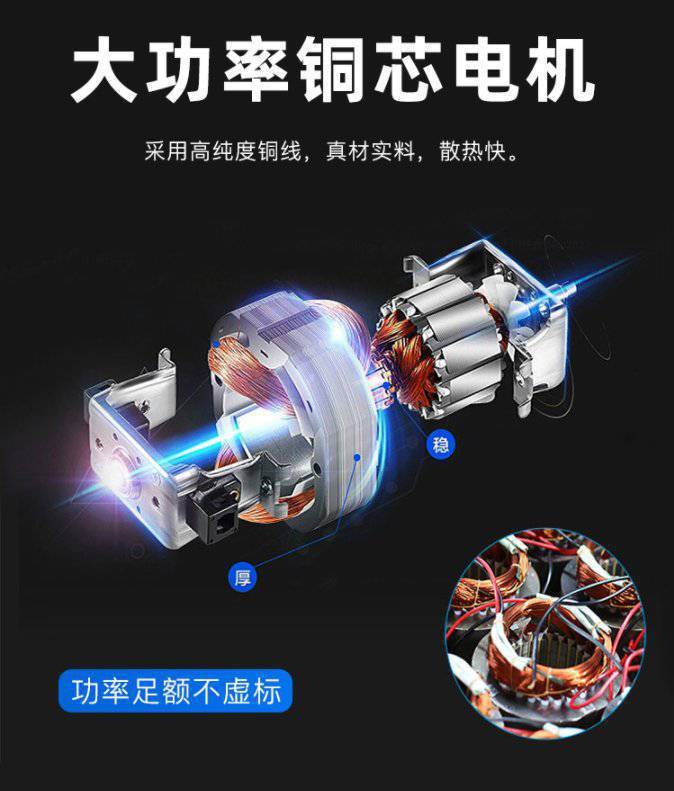

Electronic modification 550,750
Gross weight/net weight 120/102
Packaging size 70x44x128
