Planistar 48-48-sled-3-vac-19w-18w-o-kd technical specifications for lighting
1. Core functions

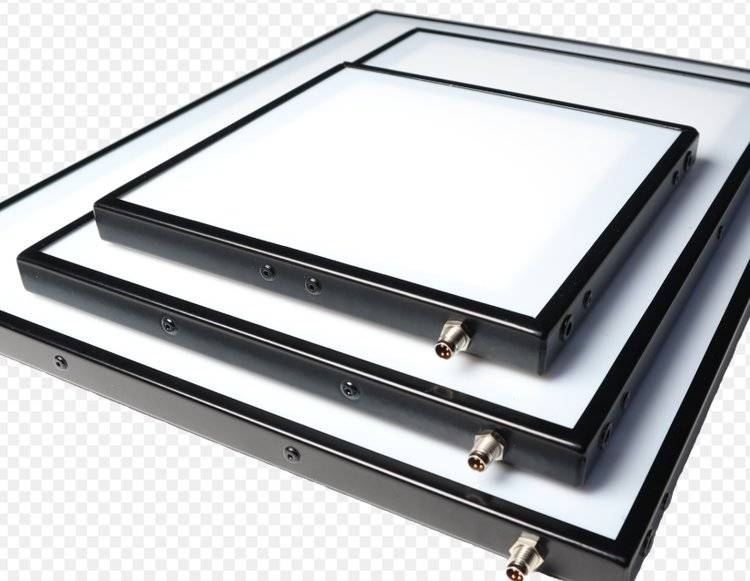

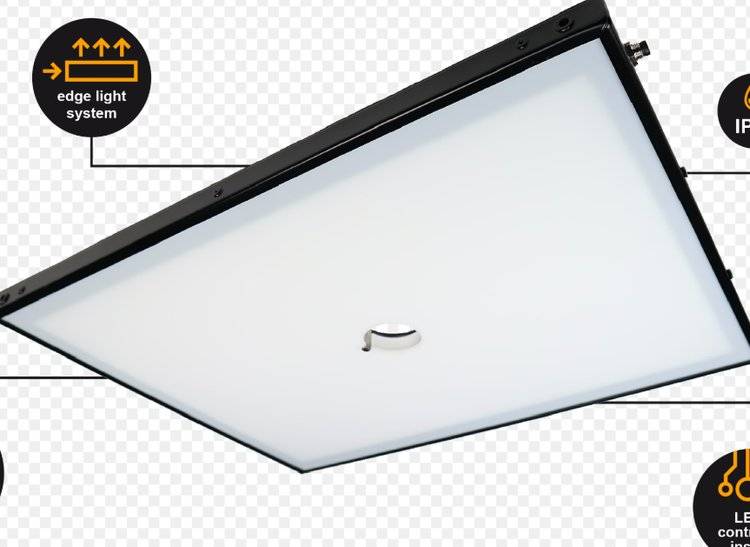

Diffuse auflicht-beleuchtung
(c) a wide-spread design that provides a smooth backlight and applies to scenarios that require no dizziness and high homogeneity (e. G. Machine visual testing, industrial imaging, etc.)。
Cosine correction (inkl. Kosinus-korektur)

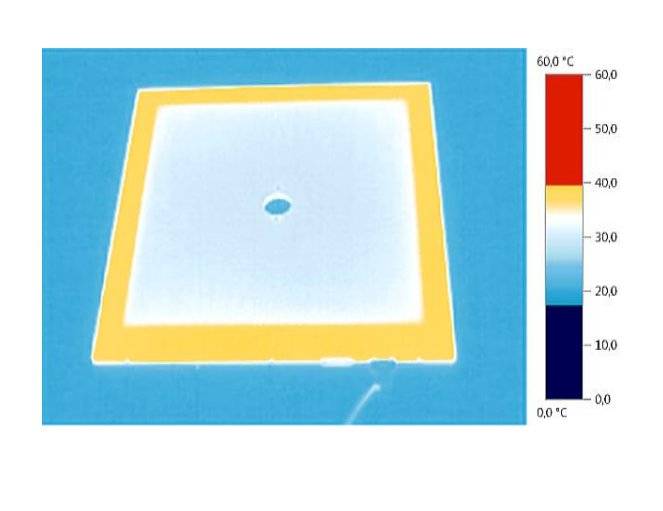

The cosine correction technique ensures consistency in light intensity at different angles and avoids uneven brightness due to an angle deviation of exposure。
2. Reconciliation and control
Brightness manual reconciliation
Manually adjust the brightness through an external controller (to be installed in the control cabinet) to fit the integrated control requirements in the industrial environment。
Working mode
Repeated lighting (dauerlicht): light mode。
Switch mode (schaltbetrieb mit optokoppler-schalteingang) entered with a light switch: automation control can be achieved by triggering the switch with a light coupling signal。
3. Physical parameters

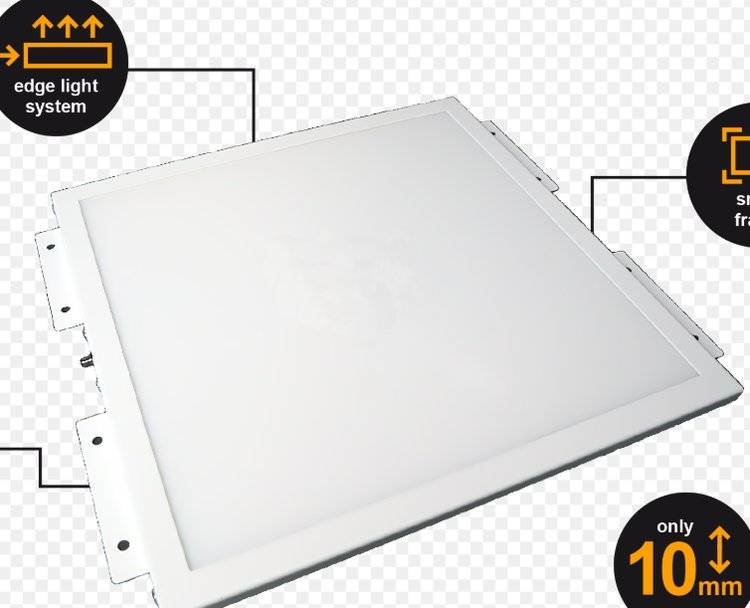

Light area: 480 x 480 mm (core effective lighting area)。
Total size: about 498 x 550. 5 x 35 mm (long x wide x thick)。

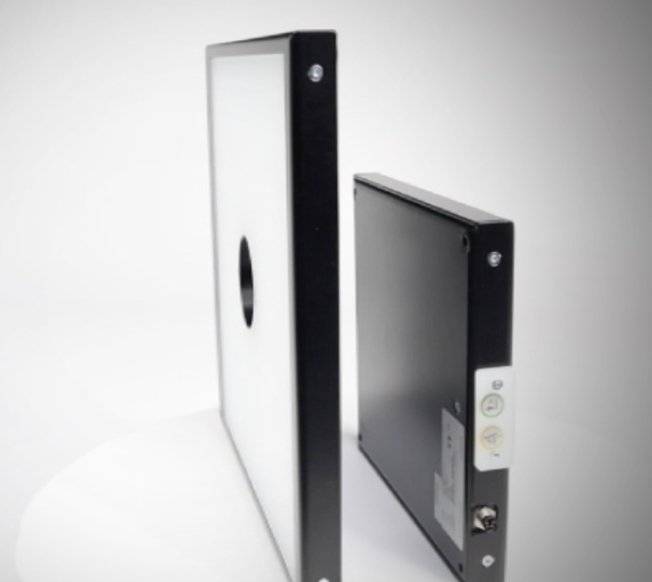

Installation opening size: the opening size of the intermediate opening is not indicated (marked as "xx mm" ) and specific drawings or manufacturer information need to be identified。
Shell colour: white, suitable for clean or light industrial environments。
4. Electrical parameters
Power: 24 v dc (connected via subd 2+5 needle interface)。
Interface type: subd connectors (2 needles + 5 needles) to support transmission of power and control signals。
Annex: contains aksub20-5 connectable cables of 5 m length for the equipment to connect to controller/ power。
5. Application scenarios
Industrial automated detection (e. G., visual sensors, defects detection)。
Back-lighting of machine visual systems ensures the stability and accuracy of image collection。
Precision instruments or equipment that accurately control the balance of brightness and light are required。
Key concerns
The opening dimensions are confirmed: the installation is to be based on the equipment's “intermediate opening size” and it is recommended that the manufacturer be contacted for detailed drawings。
Controls integration: external controllers need to be installed in control cabinets, space needs to be reserved for installation and signal shielding to avoid electromagnetic interference。
Power compatibility: ensure that the power system provides a stable 24 v dc power supply and corresponds to the definition of the sub-d interface's。
