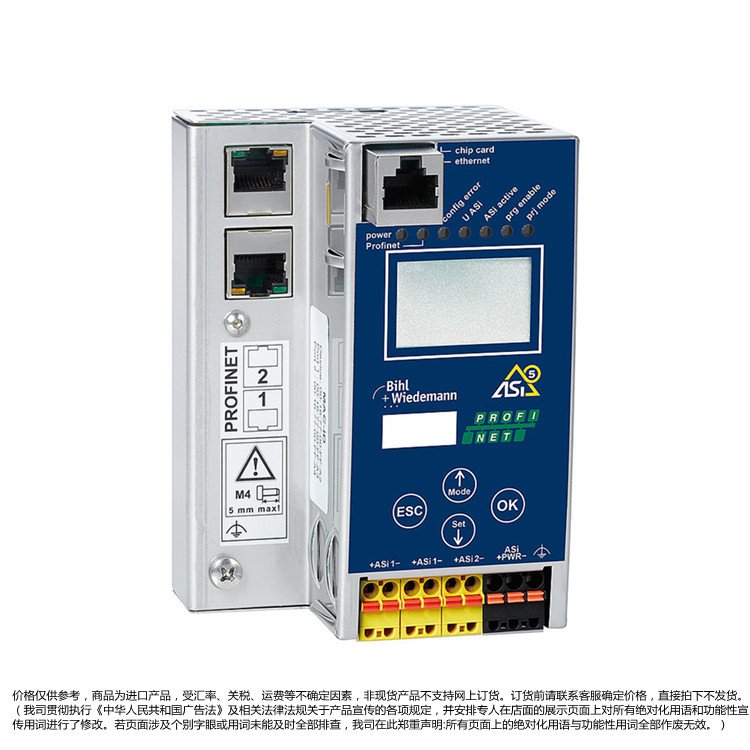

Product name: b+w gateway bwu3852
Product type: bwu3852
Product introduction
Asi-5/asi-3 stainless steel profinet gateway, 2 asi-5/asi-3 hosts, opc ua servers, integrated decoupling, asi current measurement for each asi circuit max. 4a, asi current measurement in the gateway, diagnosis and configuration via profinet or an etho-net diagnostic interface, duplicate address identification, asi malfunction detector, c programming option, ip20。
Using the asi gateway of bihl+wiedemann, you can transmit digital and analog data remotely read through the asi module to the host controller and set the output signal of the host controller to the implementer via the corresponding bus system. Our gateway communicates from asi-3 resp. Asi-5 standards to ensure data exchange. They are simple to install and debug. Users benefit from diagnostic functions implemented by various standards, such as repeat address testing, site failure and emc monitoring, and optional plc functions. The use of dual mainframes at one gateway is a particularly cost-saving method. This allows two asi circuits to be controlled by a gateway. The version “integration decoupling, asi current” also requires only one power source for two asi circuits。
Performance characteristics
Asi-5 - data bandwidth, short cycle
Extension diagnosis
Cost and space savings due to cost-effective 30 v power and integrated decorating
Provision of 2 asi circuits and 1 power source
Opc ua interface and integration web server to achieve simple diagnosis and maintenance
Optional features and accessories
1, chip card, storage capacity 512 kb (product number rw4055)
2. Bihl+wiedemann suite - safe software for configuration, diagnosis and commissioning (product number bm2902)
3. Power, e. G., 30 v, 4 a, 1 phase (good number bw 4218)
30 v power, 8a, 1 symmetry (cargo bm4219)
30 v power, 8a,3 phase (product number bw4220)
30v power source, 16a,1 phase (product name bw4221)
30 v power, 16a,3 phase (product number bw4222)
4, profinet main emulator licence (cargo numbers bw4754, bw4755)
Technical parameters
Origin: germany
Field bus interface
Type: profinet; 2 x rj-45, integrated 2 port switches with irt functionality
Conformity level b
Integrated switches are in level c (irt capability)
Port rate: 100 mbaud
Opc ua interface: opc ua server+web server
Compliance level: b
Integrated switches are in level c (irt capability)
Function: profinet io device
Media redundancy protocol (mrp)
Shared device
Cartwright: chip card used to store configuration data (bw4055)
Diagnostic interface
Type: ethernet; rj-45 for ieee 802. 3
Porter rate: 100 mbaud semi-double/full
Opc ua interface: opc ua server+web server
Asi
Asi code: asi-5+asi-3
Loop time
Cycle time asi-5 ( constant): 1. 27 ms for 384 bit input data + 384 bit output data
Cycle time asi-3 (variable): 150 ms* (asi-3 nodes + 2)
Work current: ca. 250ma
Asi power24v capability: yes
Monitor
Lcd: menu, asi address indication, plain text error message
Led power (green): open
Led profinet (green/red)
Green: profinet communication activated
Red: profinet communication not activated
Led configuration error (red): configuration error
Led u asi (green): asi voltage is normal。
Led asi activate (green): asi activate normal work
Led prg enabled (green): automatic address programming enabled
Led prj (yellow): in configuration mode
Environmental data
Work height: max. 2000 m
Working temperature: -25°c... +55°c (condensation not allowed)
Storage temperature: -25°c... +85°c
Shell: stainless steel for din track installation
Level of contamination: 2
Protection level: ip20
Insulation voltage: 500 v
Weight: 500 g
Dimensions (wide/high/deep): 85mm/120mm/93mm
