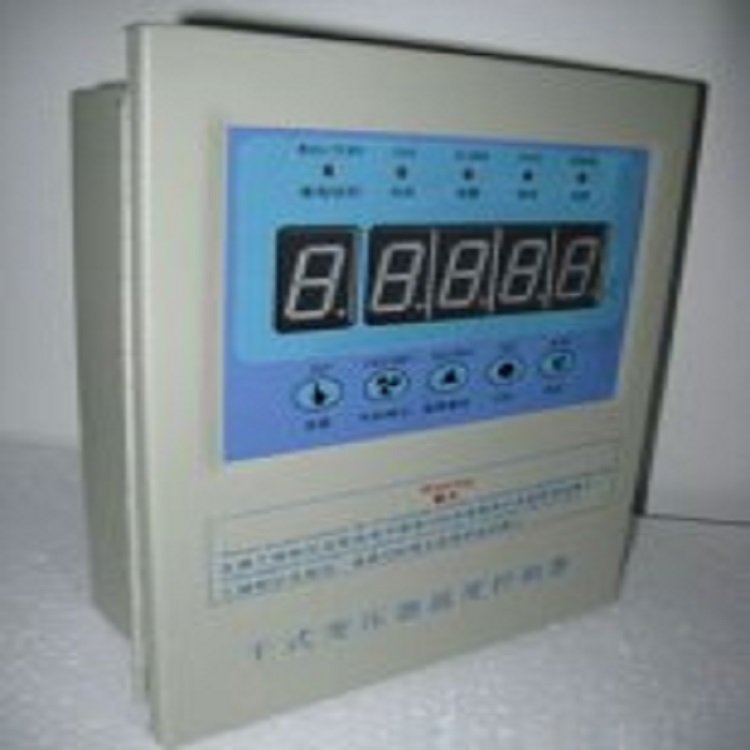

Dry transformer thermostat/temperator model; mhz-bwdk-3207
Technical indicators:
Ambient temperature: 20~55°c
Relative humidity 90% (25°c)
Work power: ac220±v10%
Number of values shown compensation range: 0~200. 0°c
Alert contact: 7a/250vac
Sensors: platinum resistance (pt100)ф3
Consumption power: 8w
Measurement range: 20~200. 0°c
Resolution: 0. 1°c
Wind machine contact: 16a/250vac
Lead-line resistance: 100 times
Accuracy: 0. 5
Outer size: 260 x 200 x 70 mm (high x wide x depth)
Capped size: 230+1 x 180+1 mm (high x width)
Fitness:
For various types of large, medium and small dry transformers and european box transformations
Select to be installed on the transformer's body package and shell
The voltage transformer cooler can run up to 16a。
