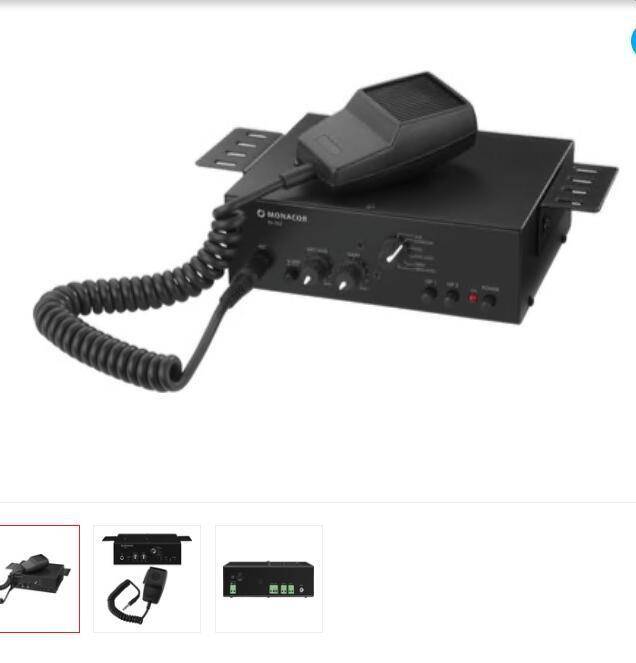

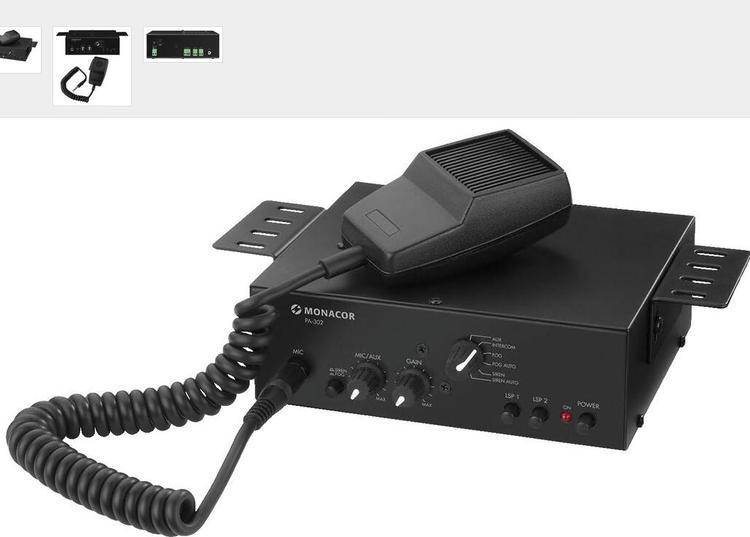

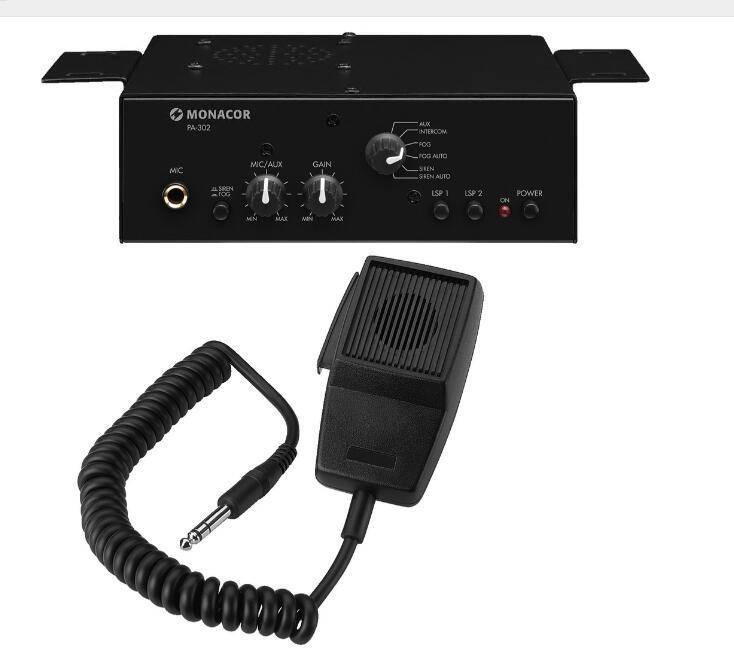

Pa-302
Order no. 0171270
Pa-302
Mono-pa mixer, 14 w.
1 microphone input and 1 line input, transferable
2 speaker output, switchable
Internal speaker
It can also be used as a walk-through system
With handheld calls
The alarms and the fog horns
Metal shell
Attached installation of support
12/24 v battery power, automatic switching
Pa-302
Top output power, 20 watts
Quota power 14 w
Channel 2
Enter 3 mv (microphone)
50 mv (line)
Frequency range 20-20,000 hertz
Noise ratio, 65
Total harmonic failure < 0. 5%
Recognize. Temperature of the environment. 0-40°c
Width 175 mm
Height 60 mm
Depth 170 mm
Weight 1. 4 kg
Connect 1 x 6. 3 mm plug (microphone input)
1 x rca (line entry)
2 x 2 polar-inserted screws (speakers)
1 x 3 polarly inserted screws (external speaker) with jumper
Packaging size (wide x high x long) 0. 23 x 0. 1 x 0. 3 m
Total weight 1. 84 kg
Net weight 1. 41 kg

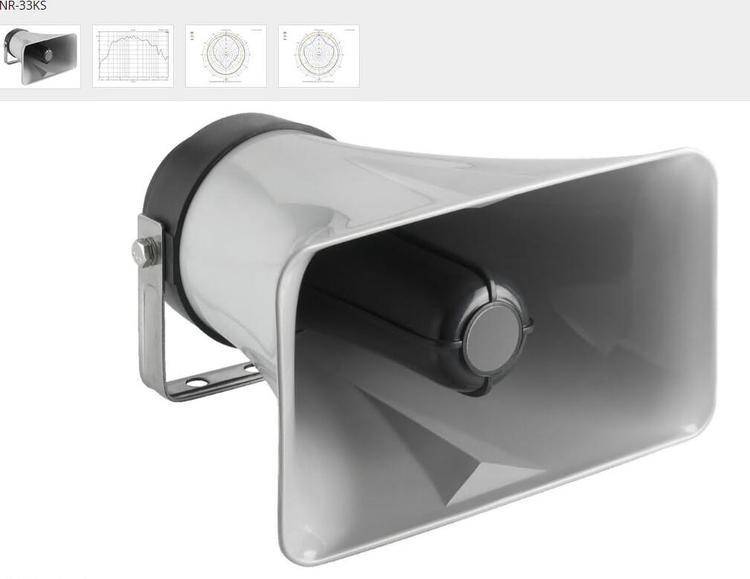

Nr-33ks
A wind-proof horn
After ip66 test, it resists strong water currents
8 times, speaker system
For general indoor and outdoor applications
Strong plastic shell
Installation of support and bolts made of stainless steel
Technical specifications nr-33ks
Nr-33ks
Active/passive
Total power 25 w
Quantification power (validity value) 12 w
Stand by, 8 om
Frequency range 275-7,000 hertz
Number of speakers 1
Acoustic pressure level 106 db/w/m
Radiation angle/beam angle level: 100°/vertical: 50°
Radiation angle, level 100°
Radiation angle, vertical, 50°
Building materials plastics
Color, gray
Installation of set-up set-up for stainless steel
Protection level ip66
Recognize. Temperature of the environment. -20 °c to +50 °c
250 x 145 x 272 mm
Width 250 mm
Height 145 mm
Depth 272 mm
1. 5 kg weight
It-230/vc
Other properties. Windproof
Packaging size (wide x high x long) 0. 16 x 0. 29 x 0. 26 m
Total weight 1. 925 kg
Net weight 1. 53 kg
