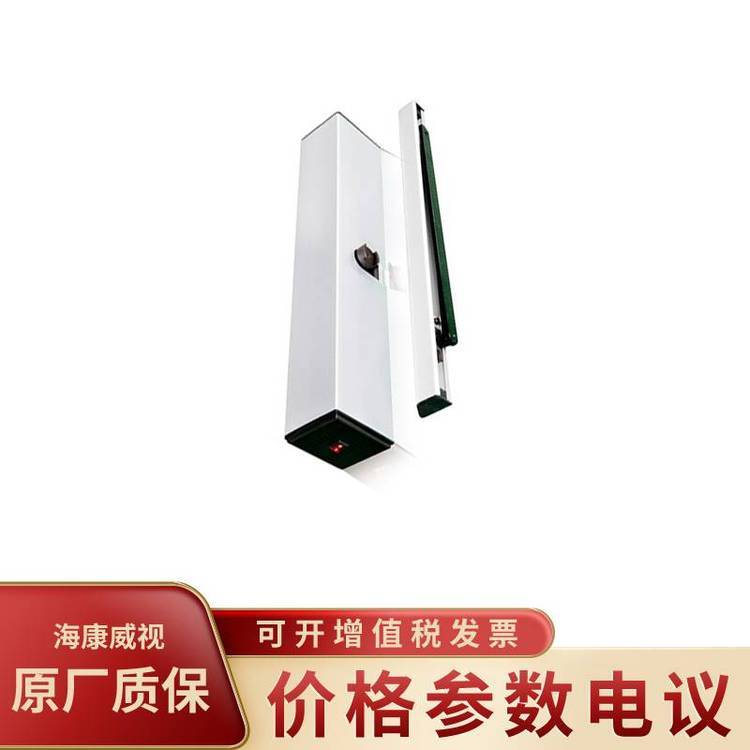

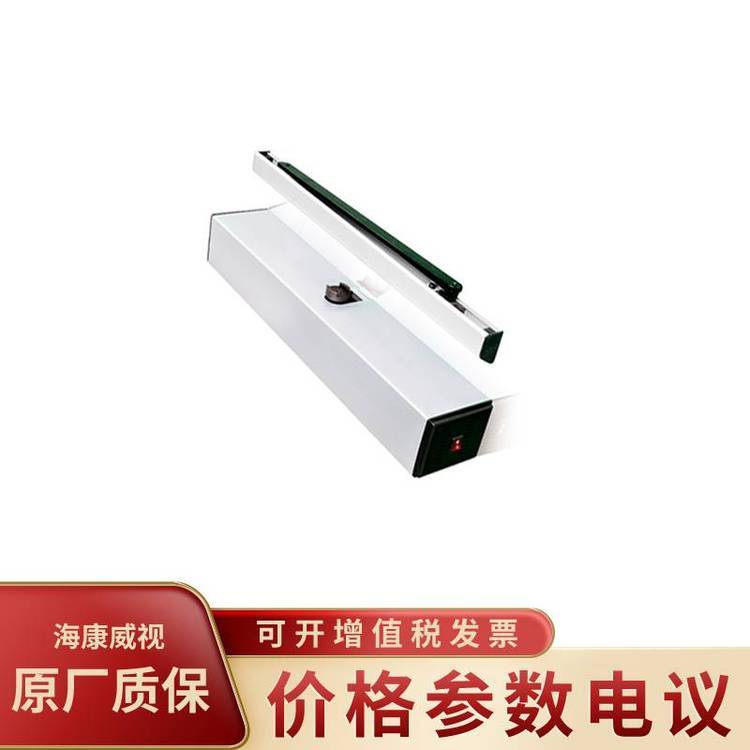

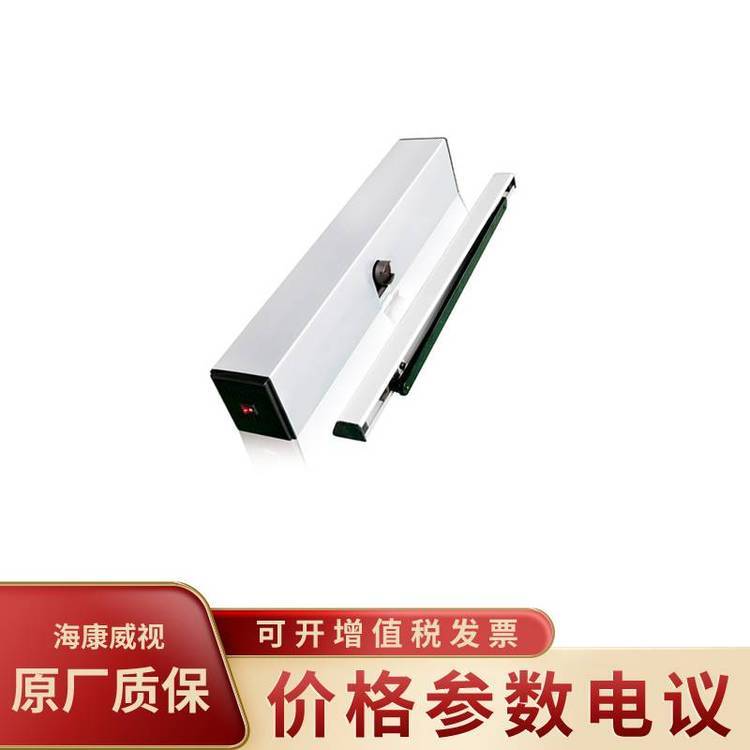

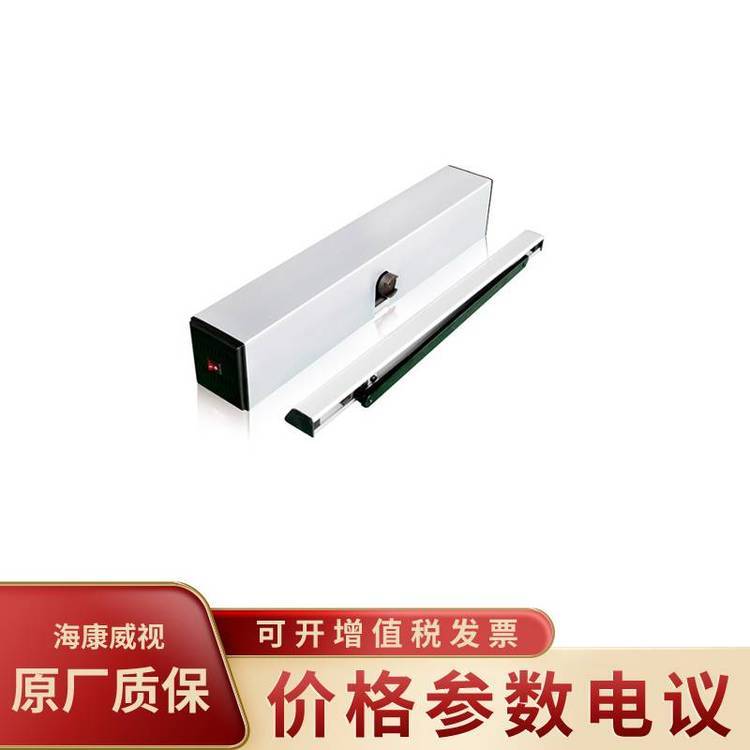

Ds-k7pc91-push (domestic formulation)
Ds-k7pc91-pull (domestic labelling) arm pull
Installation conditions fit the door weight: 80 kg (limit 100 kg)
(b) the size of the fitting door: 1000 mm (threshold 1200 mm)
Open angle 100°, recommend 90° installation
Product weight: 6. 5 kg
Wall bearing: >20kg
(b) must be installed in concrete, red bricks or walls that can stabilize fixtures
The equipment is installed on the wall above the door frame at a height less than 30 mm (the distance between the location of the installation and the door fan). When the door is higher than 30 mm, separate parts (high interfaces) need to be purchased; thrust arm-style installation: equipment should be equipped with a wall and an embedded depth of less than 180 mm. Otherwise it cannot be installed
Arming: the installation of the equipment will be on the same floor as the side of the door, otherwise the installation will not be possible. This can be done by adding self-propelled highs (e. G., wood bars) between the front of the door and the arm when installed. Product characteristics allow the automatic opening of microwave sensor signals
(b) open doors to receive door-barrier equipment to alert output signals
The left door, the right door, the inner door, the outer door shall apply and the door shall be open at 90 degrees; it shall apply to the wooden door, the iron door, etc. And shall be installed on the wall of the upper door
Support for the operation of remote control doors, doors and doors (two self-contained remotes)
(b) the opening of the door buffers can be reconciled; the speed of closing can be adjusted
