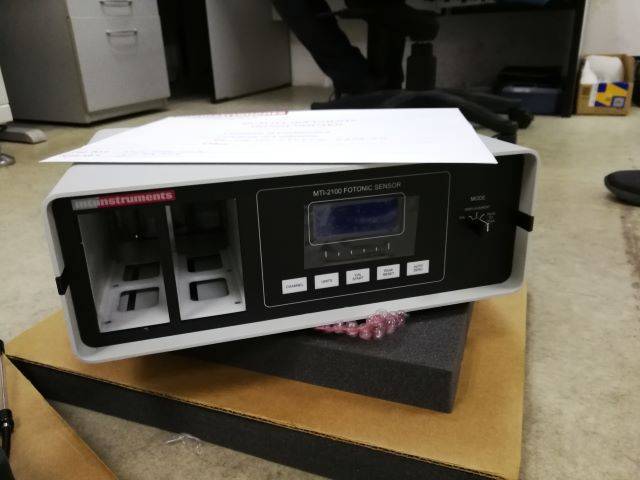

Mti-2100 non-contact fibre-optic meters
(old model: mti-2000)
Superhigh resolution: 0. 0025 m high-speed reaction frequency: 500 khz
High-resolution and high-frequency response measurements of non-contact fibre-optic vibrations and shifts yi
Mti-2100 has advanced fibre-optic and pv technology to measure accurately the shift, position and vibration. It has a resolution of 0. 25 nm and a frequency response of 500 khz.
The mti-2100 modular design has the flexibility to customize customer demand and reversible probes according to the measurement scope requirements. The probe is resistant to electromagnetic interference and applies to the surfaces of various material measurements, such as metals, synthetics, paints, glass, ceramics and liquids。
With two channels, users can conduct measurements simultaneously, which are important for modelling and structural dynamics research. In addition, all the probe modules have two measurement ranges: one high-resolution and the other large-scale。
For research, development, quality and process control
Vibration
• model analysis
• location control
• run-off
• migration
• structural dynamics
• disorder detection
• resonance analysis
• return movement
• speed measurement
• surface photopurification analysis
• edge detection
• liquid surface motion
• a maximum resolution of 2. 5 n rice
• replaceable and user-friendly probe modules
• sets a curved spot
• reflector compensation module to eliminate reflector error
• a unique edge probe designed to measure horizontal motion
• maximum response frequency of 500 khz
