Nickel chromium cr20ni80 electric thermal silk 0. 16 nickel chromium ni80 electric thermal silk
The company's products are non-scheduled, the prices are for information only
Product name: nickel chromium cr20ni80 electric thermal silk 0. 16 nickel chromium ni80
Materials: cr20ni80
Process custom: yes
Retardation rate: 1. 14 mm2 m-1
Microstructure: austrocs
Main uses: hot wind cycle furnaces, test analytical instruments, wiring, imported equipment
Product certification: iso 9001, ce, rohs, sgs
Temperature tolerance: 1,200°c
Magnetic or not: non-magnetic
My plant has all the specifications available for timely purchase and use by a wide range of clients
Materials:First steel cr20ni80
Specifications:Φ0. 16mm
Purpose:Nickel chromium materials, because of their high temperature intensity and plasticity, are used extensively in industrial electric furnaces, domestic appliances, and far-red infrared devices。
Remarks:Nickel chromium silks have high electrical resistance, high surface resistance to oxidation, high temperature levels, high temperature intensity, good processing performance and weldability, and are widely used in heat-producing components such as metallurgical, household appliances, mechanical manufacturing and electrical appliances. Long useful life, but higher costs due to nickel。
Cr20ni80 is used between 500°c-9000°c because of its stable, single, flat solid-melt tissue and therefore has a good temperature and high thermodynamic properties, a balanced electrical physics and a good process properties. The use of low temperatures, long useful life, etc., is different from the use of electro-heated alloy materials in the iron chrome aluminium system。
Status of supply:

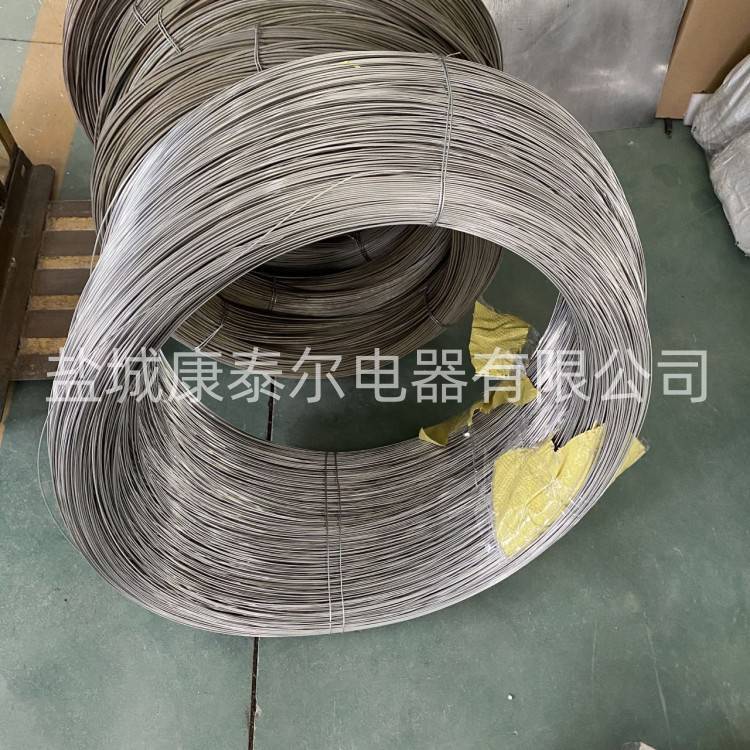

(1) wires and discs are supplied in white or oxidized soft form。
(2) belts are generally supplied in oxidizing colours after discharge, except for special requirements。
(3) threads and flat wires are supplied in light and soft after the gas is protected。
Product packaging:
(1) wires and taped materials to be packed and clothed in rolls。

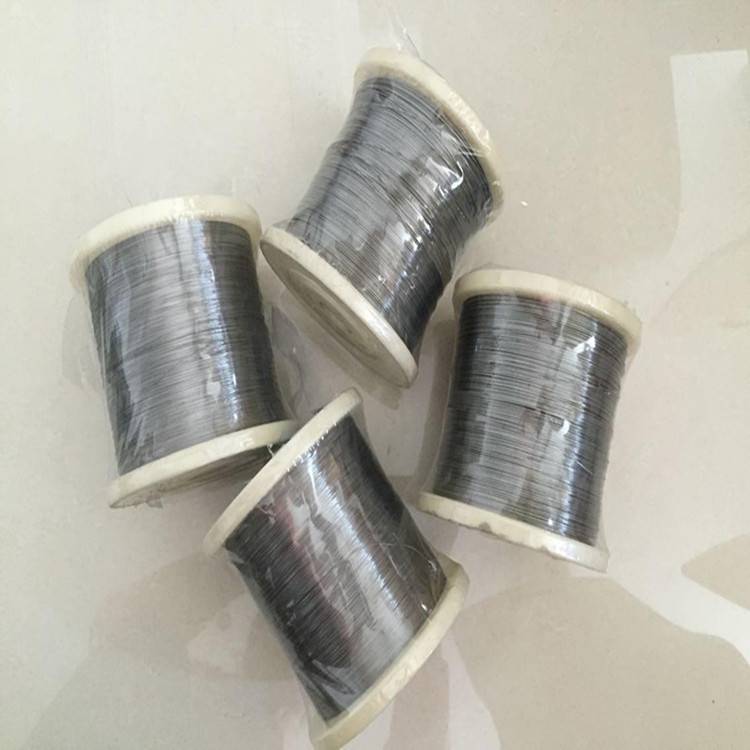

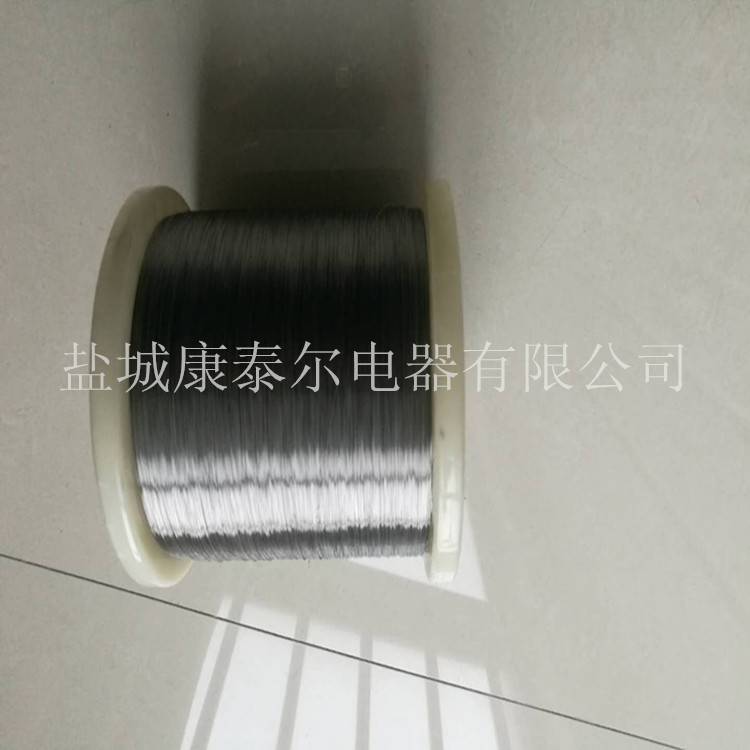

(2) the supply is sealed around the axis by silk and flat wire。
(3) export products and their users have special requirements, which are negotiated。
Note:
(1) the fuse shall be designed in accordance with the power-wiring method, a reasonable surface load, and the correct selection of the wiring
(2) the wire shall be thoroughly inspected of the furnace prior to its installation, so as to remove the iron, carbon, exposure to the furnace and avoid short circuits in order to prevent the blasting of the furnace
(3) the wire shall be correctly connected at the time of installation by the design of the wires
(4) the sensitivity of the temperature control system should be checked before the fuse is used to prevent temperature failure, resulting in the burning of the fuse。
Main technical parameters for nickel chromium electro-thermal alloys:
Performance, card number
Cr20ni80
Cr30ni70
Cr15ni60
Cr20ni35
Cr20ni30
Primary chemical composition %ni
Residual
Residual
55. 0-61. 0
34. 0-37. 0
30. 0-34. 0
Cr
20. 0-23. 0
28. 0-31. 0
15. 0-18. 0
18. 0-21. 0
18. 0-21. 0
Fe
≤1. 0
≤1. 0
Residual
Residual
Residual
Component use temperature (oc)
1200
1250
1150
1100
1100
Room temperature resistance (mm2/m)
1. 09
1. 18
1. 12
1. 04
1. 04
Density (g/cm3)
8. 4
8. 1
8. 2
7. 9
7. 9
Thermal transport coefficient (kj/m h oc)
60. 3
45. 2
45. 2
43. 8
43. 8
Melting point (oc)
1400
1380
1390
1390
1390
Extension rate (%)
>20
>20
>20
>20
>20
Microorganization
Austria
Austria
Austria
Austria
Austria
Magnetic or not
None
None
None
Micro
Micro
The salt city contel electric company ltd. Was created in 2013 as a technology-based enterprise for autonomous research and development, design, production and marketing. After more than a decade of sustained efforts, it has become a national professional producer of high-electrically resistant thermal alloy materials. Precision electro-thermal (temperature resistance) alloys, load alloys, thermal treatment of various electronic equipment, industrial kiln grid belts and electro-heating equipment are produced and marketed in kanthal, sweden。
The main groups of company products are: one, import alloy series: sweden, import of kanthal silk; japan, import of new japanese iron su310s/314; united states, import of inconel 600/601; two, electrical thermal (interception) alloy series: mainly nickel chromium wire/band, iron chrome aluminum wire/band, pure nickel wire, coronose, manganese copper wire; and three, electrical heating equipment series: non-standardized monoheaters/heating rods, french heated tubes, wings heated tubes, u-heated tubes, anti-corrosion heating tubes, etc.; and four, metallic net belt series: mainly stainless steel chain bands, industrial kiln network belts, light-volt-coated crystal liner bands, roasting nets, high temperature grid frames, etc. The four main series of products are closely related and are widely used in such areas as the lithium cell positive-negative materials industry, the carbon fibre industry, ceramics, electronic specialized equipment, high-temperature kilns, glass products and powder materials。
The salt city canter production base is located in the qinan industrial complex in the salt town area, which is accompanied by plant production equipment and various detection and mechanical processing equipment. There are currently six production workshops, including vacuum sensor smelting furnaces, medium frequency furnaces, light hydrogen retreaters, digital control beds, digital control beds, carbeds, netting machines, straight rod machines, etc。
Salt city contel electronics will work with you to develop new products, expand markets, and sincerely hope to develop friendships and long-term business partnerships with your friends and foreign and middle-class clients
