Brand
Smc
Model
- what
Cdqsb20-5dm
Origin
- what
Japan
Start bargaining
- what
One
Imported or not
- what
Yes
Order specifications
- what
Standard
Saleable area
- what
National

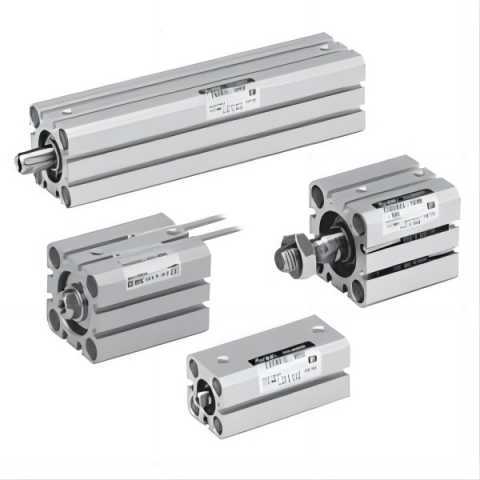

Cqs series bottle/small cylinder standard/system
• magnetic switches can be installed from three or four sides in thin hem structure
The compact cylinders don't come out with magnetic switches. In vitro
• additional double-ring installation, minor installation annex
• magnetic switches (cdqs series: cdqs, cdqsw, cdqsk, cdqskw, cdqs□s)
Field description field take value take value take value describe
Inline magnetic ring d inline magnetic ring
Installation b basic
Cartridge 20 mm
Air tank schedule 5 air tank schedule 5mm
Double process mark - no double process mark
Air tank 2 - no air tank 2
Option m pole end screw
Magnetic switch model - no magnetic switch
Magnetic switches number - two or none
Custom specification - standard
Tube calibre m5x0. 8
Form
The way you move, the two of them
Type of cross-string m
Type of pole-end screwdriver m
Point-end screw size m8x1. 25
Minimum used pressure 0. 05 mpa
Maximum used pressure 1. 0 mpa
Guaranteed to withstand stress 1. 5 mpa
Ambient temperature - 10°c ~ 60°c
No oil
Use piston speed 50-500 mm/s
Aluminium alloy
Aluminum alloy
Pistols, stainless steel
Pistol material, aluminium alloy
Pistol-end nuts, carbon steel
0. 3 mpa theoretical thrust in 71 n
0. 5 mpa theoretical thrust in 118 n
0. 7 mpa theoretical thrust in 165 n
0. 3 mpa theoretical thrust out 94 n
0. 5 mpa theoretical thrust out 157 n
0. 7 mpa theoretical thrust out 220 n
