Elbe, germany, 0. 313. 114 for construction equipment with retips
Elbe group was founded in 1919 as a family enterprise that produces vehicle and mechanical engineering-driven solutions. Elbe transmission axes and components can ensure that machines and vehicles used on a day-to-day basis stand the test of time, provided that reliability and long useful life are required. We provide you with support in the selection and design of moving solutions, and we work together to find customized solutions for your special applications。

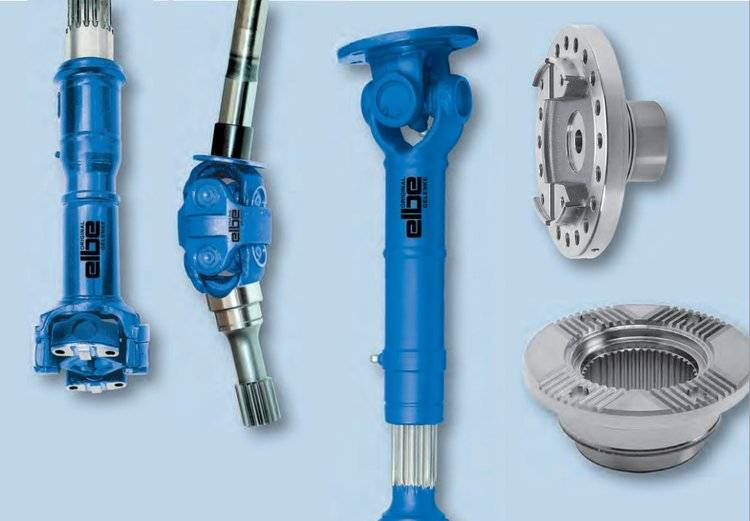

Main products:
Elbe's axle
Elbe's cyclops
Elbe double
Elbe wing drive axes
Elbe's all-way transmission axis
Elbe cross-crossing axle
Elbe ballbed passaxis
The series has two structures。
(a) a single connection between the two links of the centre and the length reimbursement. This method of placement is used mainly for construction equipment with retort devices. The advantage of the centered double is that no intermediate bearings are required. This has resulted in cost savings by shortening the installation time of the drive。
(b) the second configuration consists of two intermediate links with length extensions. Since the maximum angle difference between the two single joints is about 3 degrees, this configuration ensures almost even speed and twisting. Angle differentials produce less than 0. 0027 fluctuations that are negligible。
The fixed dual head is composed of two forklift components, including a cardiac device, which is contained in a rubber condom to prevent dust from becoming damp。

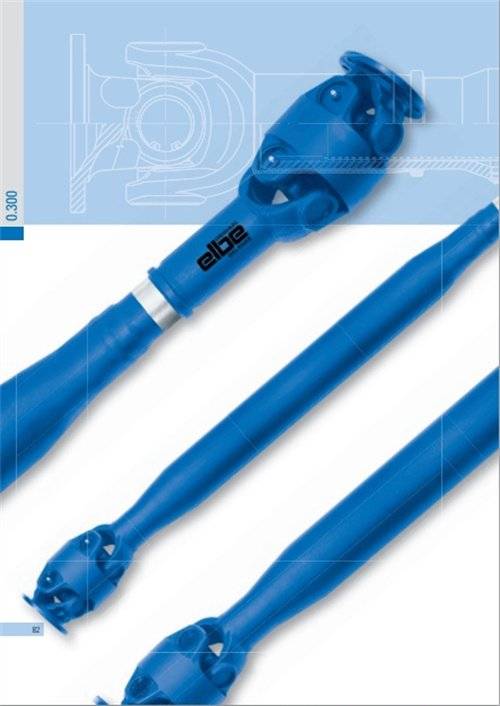

Settling axle 0. 300 series
Maximum twist: 4000 to 15,000 oxen
Distortion angle: maximum 42°
Implementation:
Din, cross, sae, frank, and special connection
Double/single with length extension head
Double interface with length extension
Rolling bearings
Example of model:
Elbe's solid motion axis 0. 313. 14
Elbe's aerodynamic axis 0. 358. 114
Elbe's aerodynamic axis 0. 320. 114
Elbe's solid motion axis 0. 331. 15
Elbe's aerodynamic axis 0. 358. 115
Elbe's aerodynamic axis 0. 320. 115
Elbe, germany, 0. 313. 114 for construction equipment with retips
