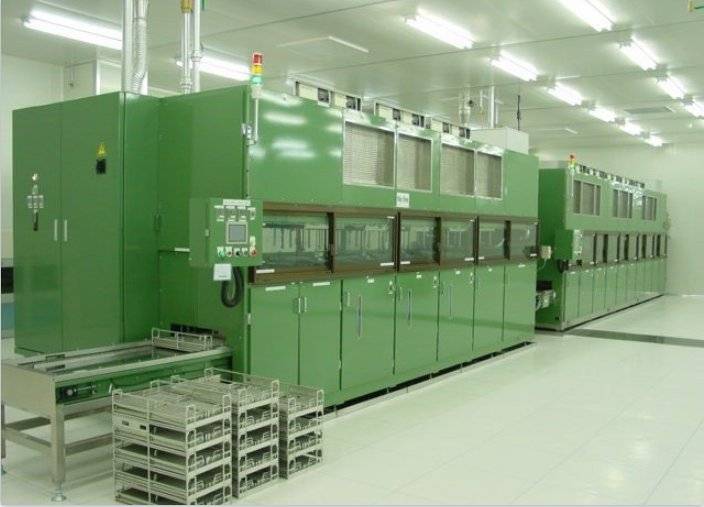

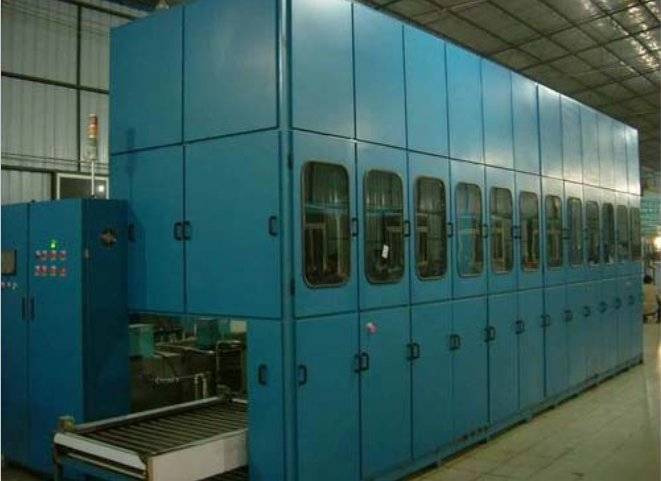

The complete automatic, closed ultrasound dryer, designed by the plc mains to meet the fine and precise cleaning and drying requirements of the main gas pillar, is controlled by plc micromachines and industrial monitoring monitors. The main equipment subjects use automatic synchronisation, industrial monitoring monitors to achieve human dialogue, plc programmable control, digital positioning of the electrical apparatus, etc., in an advanced and timely manner, so as to stabilize and operate the whole equipment。
The full automatic air portal is a pole ultrasound cleaner:
The ultrasound generator, ultrasound exchanger, which is autonomously developed by the coalition, has a strong and even ultrasound, with high mechanical q values, stable performance and long operational life。
Plc control system: all parameters, including drainage, cleaning temperature, washing time, drying time, filtering cycle time, ultrasound power, etc., are set to operate in the human interface。
Filter circulation systems: filter accuracy 1-50um is optional, particulate sediments, suspensions, floats, etc. In cleaning fluids are filtered, cleaners are more efficient and cleaning costs are saved。
The internal troughs use 304 stainless steel, alkalis and are highly resistant to corrosion。

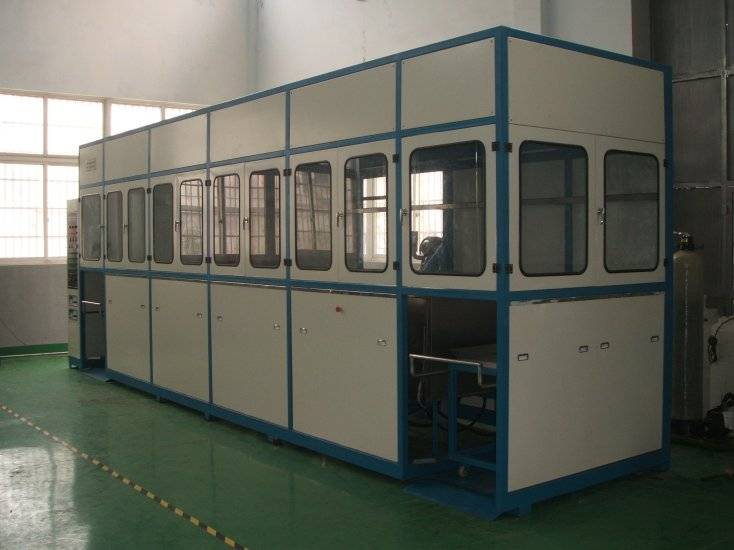

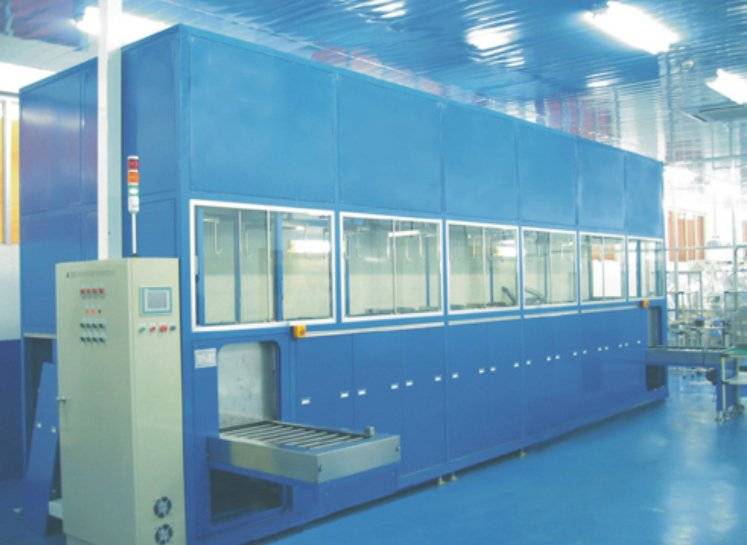

The fully automated air portal pole ultrasound cleaner uses high-quality stainless steel packages and uses 1. 0 mm thick electrolytic sheet sprays, as well as the aggregated board campaign doors and transparent observation windows。
The whole process of rinsing the baskets, removing them and moving the baskets between them is done automatically by the robots。

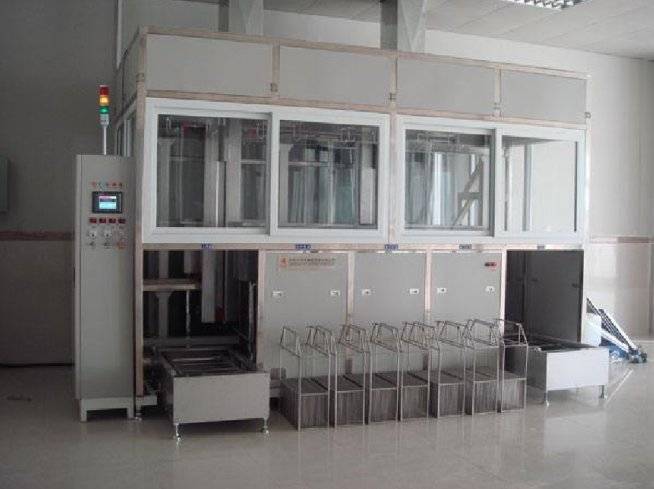

Cleaning basket: bones have a round branch structure, stainless steel hole plates are welded around and on the floor, and they have a strong weight。
(a) complete cleaning: ultrasound washing machines have a significant cleaning effect for items that cannot be cleaned in a fully effective manner by hand and other methods of cleaning, and can completely meet the cleaning requirements and remove the stains from the back corners of complex works
The full automatic air portal is a column of ultrasound washing machine with multiple batches: no matter how complex the shape of the work is, it is placed in a washing fluid, which can be achieved wherever it can be exposed to liquids. Ultrasound washing machines are particularly appropriate for work of complex shape and structure

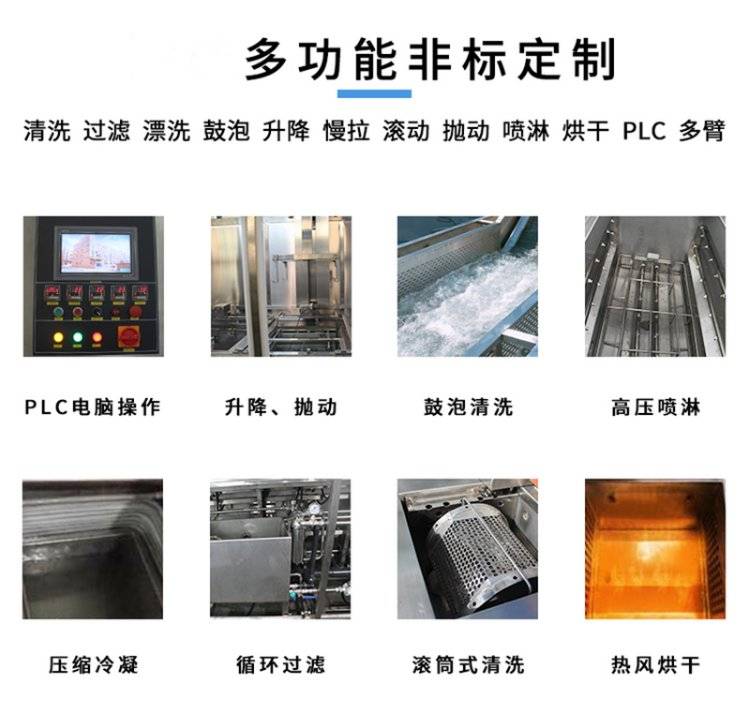

Multifunctional cleaning: a fully automated ultrasound cleaner can perform different effects in combination with different solvents and satisfy different production packages such as oil removal, rust removal, dust removal, wax removal, chrysal removal, phosphorification, passivation, potion, electroplating, etc。
Pollution reduction: ultrasound cleaning can be effective in reducing pollution, reducing damage to humans by toxic solvents, and environmentally efficient。
(b) reduction in the number of people involved in manual cleaning by using ultrasound cleaners to enable the complete automatic cleaning and drying of work items, with a single operator at the bottom of the cleaning of work items。
(b) reduction in the operational time: the time of the ultrasound washing machine was reduced to one quarter of the time of the manual cleaning as compared to manual cleaning
The total automatic air portal is a pillar of ultrasound washing machine that reduces labour intensity: manual cleaning: the cleaning environment is harsh, manual work is heavy, and complex mechanical parts require long periods of cleaning of ultrasound: low labour intensity, clean-up of the environment is orderly, complex parts are cleaned automatically and efficiently。
Energy conservation for the environment: ultrasound cleaning support cycle filtration system, which allows recycling filtering of solvents to be repeated, is of great importance for saving water resources, cleaning of solvents costs and enhancing the environmental image of enterprises。
Full automatic air doors are a pillar ultrasound cleaner maintenance standard:
The power supply is 380v. (triple #4)
2. Linking the signal lines between ultrasound power sources and the cleaning cells. (relative connection)

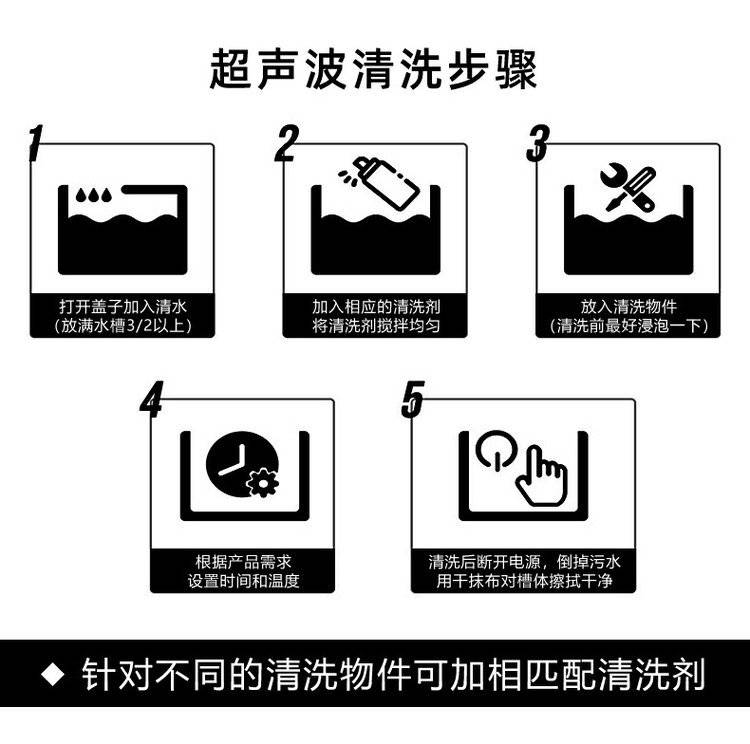

3. The liquid shall be added to the cleaning tank at an altitude of approximately 300 mm. The liquid in the liquid tank is at half the height of the liquid tank at the best temperature of 40-55 degrees。
4. The items to be cleaned by the fully automated gas pylons ultrasound cleaner shall be placed in the cleaning tank and shall not, as far as possible, be directly exposed to the bottom. Do not hit the side wall of the wash tank。
5. Set the working time for ultrasound (not to lose time), press the start button for ultrasound and start work on ultrasound。
6. The cleaning time is determined by the extent of the oil contamination of the works。
7. When the full automatic air valve pole ultrasound cleaner loop filter is closed, please close the filter out of the water valve。
8. Regular clean-up of oil sludge at the bottom of the sink。
If the equipment is not used for a long time (7 days) during the summer, the liquid in the cleaning tank should be released clean, and the tank should be secured from ice during the winter。
10. When the dust is larger in the workshop, the dust from the distribution cabinet should be cleaned up monthly using compressed air。
Full automatic air doors are maintained on a daily basis:
Power: using the power and power lines specified by the uniting equipment, the user's power circuit shall be equipped with a dedicated air switch for the washing machine to open the washing machine when required
(b) groundlines: the division produces washing machines and generators with dedicated groundlines on their power lines and features clearly distinguished from other wires, as the equipment is exposed to water, corrosive (slubber) fluids and can cause electrical failure, and connect to the ground line as required by safety requirements
3. The equipment is non-flammable and is not subject to the use of flammable and explosive substances for cleaning purposes, and the use of the equipment is subject to the need to ensure that the presence of flammable and explosive substances is kept away and, in exceptional cases, to the use of certain substances by the user, the division must be consulted to confirm the safety of the equipment and take appropriate safety measures
4. The absence of liquid or inadequate liquid levels in the scavengers of the fully automated gas mains or ultrasound cleaners will cause irreversible damage to the equipment, which must be used in such a way as to ensure that a sufficient amount of cleaning fluid is injected into the scavengers, otherwise the associated electrostatic heaters, pumps, ultrasound tremors may be damaged and may cause overfire and personal injury
Electrical control boxes and related electrical components, etc., are careful not to splash into water and are far from water vapour, corrosive gases, dust, etc.
6. In case of equipment anomalies, contact my department in a timely manner or check with experienced professional electricians after the power has been shut down
7. Items to be washed should be mounted in a basket or mounted with a foot, cleaned in a tank and prohibited from being washed directly into the sink, which could otherwise cause damage to the work and the bottom of the tank
8. When fully automated air-gate pole ultrasound washing machines operate, there may be factors in the aircraft that may cause personal injury, such as high temperature, high pressure, electrical components with electrical charge on the end of the surface, movement of the moving body, pressure impulses, etc., and do not open the shell to avoid operating in unprotected conditions
When equipment is not used for a long period of time, release the detergent and protect the dry inner tank and the surface with a thin film in order to prevent an accelerated deterioration of the equipment
Maintenance of ventilation, drying and cleanness of the equipment's workplace, which facilitates the long-term efficient operation of the equipment and optimizes the working environment
11. Scavenger fluids should be treated in a timely manner, with regular clean-up of scavengers, scavengers in scavengers, and clean-up in and out of the scavengers to improve the durability of scavengers。
