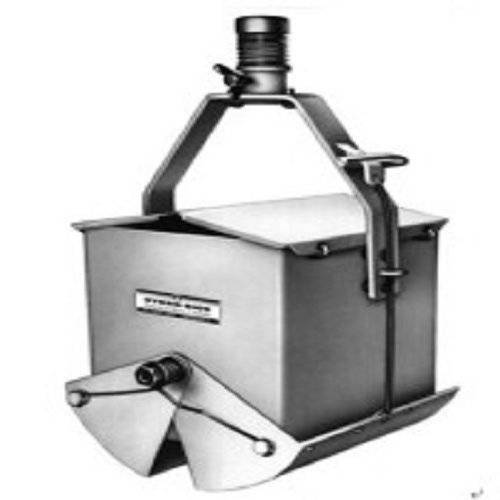

1. Boxers / stainless steel / mud miners
Working environment
1 voltage: no electrical support required
2 temperature: 20-80°c
3 humidity: 0-100%
4 water depth: typical 0-200 m
5 cables: 3 mm steel cable or 6 mm nylon rope
3. Equipment dimension: equipment applicable to settlements of settlements on the water shoot shoot shoots for all shoots
Technical indicators
1 general equipment requirements: used for sediment samples from various subsurface surfaces
Effective collection, with instruments consisting of samplers, hammers and operating cables. Fully manual, light and light, without electrical support。
Boxed mud miner body:
1 volume: not less than 200 mmx 300 mmx 600 mm
2 sample area: not less than 250 cm2
3 materials: copper, whole zinc plating, corrosion resistant design
The hammer
1 materials: stainless steel with rustproof coating
2 cable support: 2-6 mm diameter cable support
3 other: smooth appearance, long-term use without scratching nylon cables
Nylon rope
1 length: 2000mm (additional)
2 diameter: 5 mm

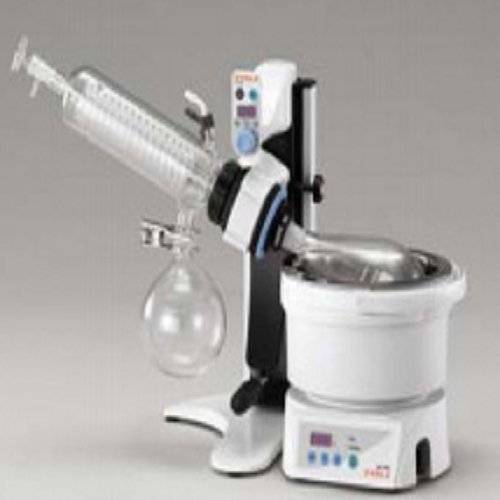

Rotating evaporation unit/roaming evaporation model: mhz-17272
Rotating evaporation model mhy-1300d-w mhy-w mhy-1300s-w mhy-1300s-wb mhy-1300v-wb mhy-17272
Performance, rotation speed, 10-310rpm
Temperature control range
Precision 10°c-90°c
±1. 5°c 10°c-180°c
±1. 5°c (oil: ±3°c)
Max25ml/min (evaporation of water)
Maximum vacuum 399. 9 pa (3mmhg)
Function rotation speed set to show the knob set. Number display
Raiser/downer, manual balancing
Other functions installation on both sides of the test bottle, with the test bottle being timed to reverse
D. C. Has no brush
Cooled condensers, straight double condensed tubes, condensed areas 0. 146 m2, tilted double condensed areas 0. 146 m2, straight double condensed areas 0. 146 m2
Water with osb-2200
Water bath boiler heater 1. 3 kw 1. 3 kw
Vacuum seal. Tefron+tefron. Viton double seal
Composition, internal size of the bath pot, inner diameter 220* 120h, inner diameter 240* 120h
A bath pot
Aluminium (teflon coating)
Waterbath pans plug, voltage mainframe connection with max2a
Connect caliber cooling water with the mouth. Attracts the mouth
Use temperature range 5°c-35°c
Outer dimensions mm. Weight: type d: 578*352*645 mm 12. 7kg
Type v: 543*352*823mm12. 8kg
Type s: 736*352*504mm 12. 1kg d: 565*352*645mm 13. 3kg
Type v: 531*352*823mm 13. 4kg
Type s: 724*352*504mm 12. 7kg
Power input. Power voltage 11. 6a 220v 11. 1a 220v

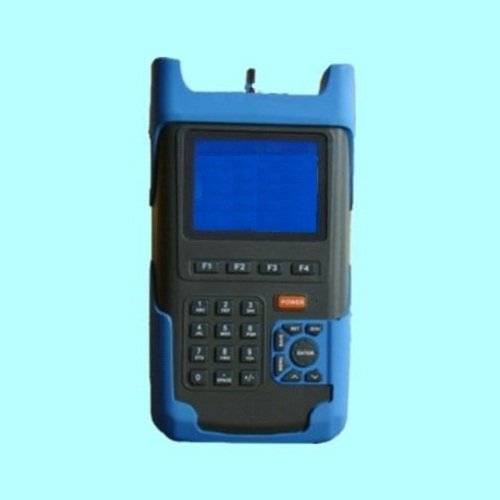

3. Wireless ground-based digital television signal analyser/field force analyser model: mhz-17271
Mhy-17271 is a comprehensive measurement instrument for the construction of wireless digital terrestrial television operations, wireless terrestrial digital television signals/simulation signals, electroplatform measurements, spectrum analysis, asterisk analysis, mer, ber, echo testing avs+-carrying noise measurements, and a test instrument microprocessor used to process chips within this instrument. High-resilient and reliable characteristics. Mhy-17271+ has also increased the photopower meter function, and mhy-17271+ is the perfect combination of the television signal analyser and the light signal meter. An instrument that completes multiple measurements is the instrument for the construction of digital operations
Technical indicators:
L frequency range: 5 mhz - 1040 mhz
L mode of conciliation: support 4/8/16/32/64/qam
L digital mean power: 25dbmv-110dbmv
L measurement precision: ±2 db
L measuring bandwidth: users can adjust
L mer range: 13-34db
L ber range: 1. 0e-2 to 1. 0e-5
L measuring precision ±2db
L revert test function
L with stream output and analytical function (option)
L simulation signal: input resistance: 75
L load noise ratio (c/n) signal input range: greater than 70dbmv
L number of slope measurement channels: 16 channels
L total number of scanner channels: 100
L frequency spectrum bandwidth: full frequency band, 500 mhz, 100 mhz, 32 mhz, 16 mhz, 8 mhz
Photometer function: (option)
L light detector: large light sensitive ingaas light detector
L full range accuracy: not less than ±6x10-2 (±0. 26db), 850/9500/300nm/1310nm/1550nm
3. The selected items are as follows:
L. 1. A road-marking system
L2. Stream output, analytical function
Other
L batteries: 2600 mah lithium batteries with continuous working hours greater than 5 hours。
L with advanced fabric backpacks to protect against the rain and tide。
L instrument weight: 0. 7 kg

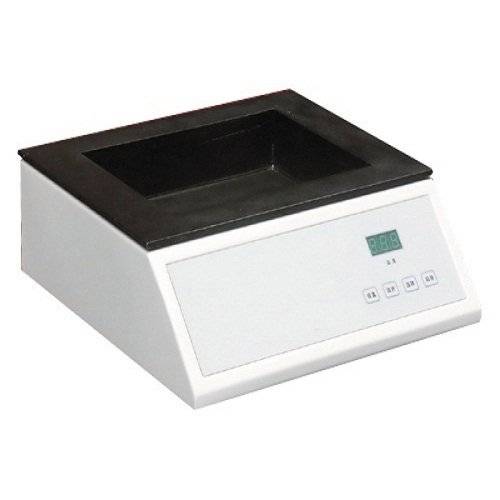

4. Portrait/shower/toaster model: mhz-17270
Functional characteristics:
▪ the introduction of new heaters, which are fast, long and energy-efficient
▪ show measured and set temperatures, respectively
▪ have memory function and automatically retain set temperature after running
Main technical parameters:
• temperature regulation range: room temperature ~90°c constant, automatic heating
▪ temperature accuracy: ±1 °c
• temperature of the environment: 0-40°c
▪ power voltage: ac220v 50hz, ac110v 60hz
• power: 200va
• whole size: 340X 340x120mm
• whole weight: 6kg

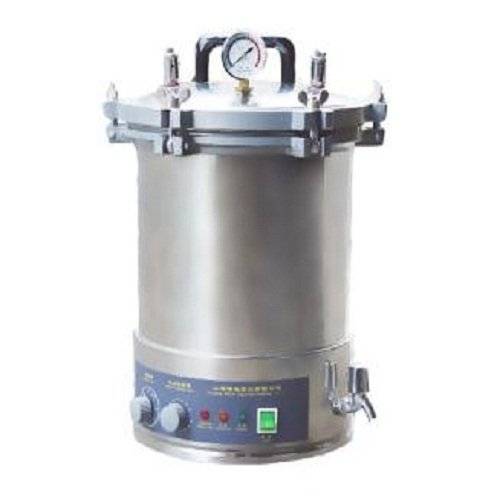

5. Portable pressure steam extinguisher/self-portable high pressure steam extinguisher model: mhz-17269
Product characteristics:
Automatic
Materials: pan casings, inner cavities made of high-quality stainless steel sus304 materials, acid, alkalis, corrosion resistant
Super-pressure 0. 142 mpa
A nominal working temperature of 126°c
Double scale pressure sheet
Auto-seal
Low-water-level electrical heat tubes
Pressure-controlled temperature adjusters (110°c-127°c)
Antigen time adjustable devices (0-60min)
Electricity heating
Technical parameters:
Volume: 18l
Standard working temperature: 126°c
Rating working pressure: 0. 145 mpa
Power: 2kw
Power: 220 v § 10/10/50 hz § 2%
Body size (mm): d=390 and h=530
Time frame: 0-60min
The price of this product is only for accessories, since the test parameters differ in the final requirements of the instrument, and the price shown is not the final price of the product. If it makes you uncomfortable, please contact our client before buying it. We will confirm the product information, technical parameters, and the offer. We will serve you at a preferential price and be sincere in looking forward to your call
