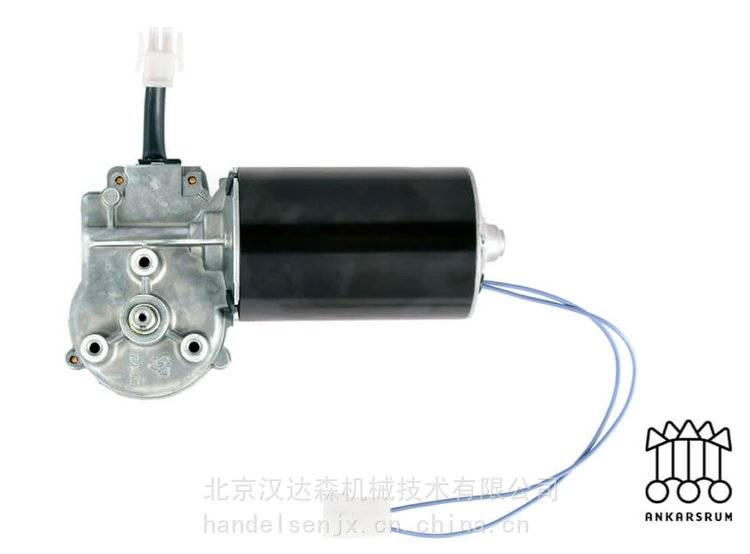

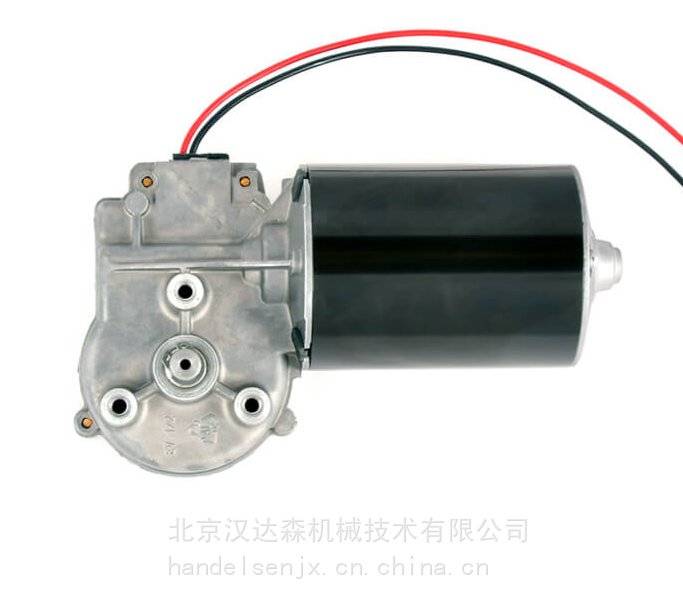

Ankarsrum ksv4030 mmr

Ksv4030 is equipped with scalding。

The output axis can be customised and the electric power can be equipped with a full integrated optical encoder (one or two-way) or a rotor schedule。

It can be used for various applications, such as wire transmitters for triar welding power, garage doors, electro-lifting equipment, agricultural equipment and the automobile industry。

The gear case casings can opt for plastics to optimize weight and cost。

Ankarsrum ksv4030 electric parameters:

Power hub diameter: 40 mm

Power hub length: 30 mm

Named voltage: 12 - 42 v

Optional moving ratio: 37. 5:1 / 75:1 / 125:1

Airborne speed range: 20 - 255 rpm

Protection level: ip20

Insulation level: f

Electric weight: 0. 9 kg

Optional encoder: 60 d&s cpr

Optional transducer: yes

Port gear box characteristics

The gearbox consists of one or more gear groups。

Level one represents a pair of gears, the first gear (small gears) is installed directly on the engine axis。

The bearings of the output axis are usually made of sintering materials。

Characteristics:

For low-turning rectangles

Output is slightly lower

Slower than range

Low noise level

Efficiency
