Magnetic sex should approach limit switches

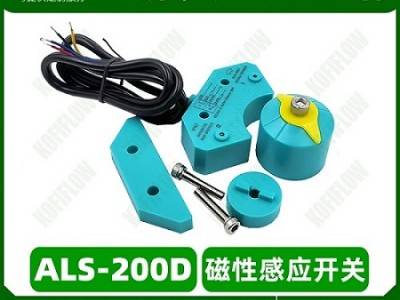

The kofi kofiflow series magnetic sensor valve returner (sls-j90-2w/als-200d) uses the passive electronic switch component dry clarinet as its main component, encapsulated in a closed plastic shell and using two sets of two-line external wires. Default is constant. As a circuit switch device controlled by a magnetic field signal, it can be used as a sensor on a valve and can be transported remotely through the sensor valve opening, closing and conversion to a telecommunications feed to the load device. The product is designed to be horse-foot-shaped, double-sided circuit boards, russian imported gold-plating foot-type dry springs, fitted to namu standards and capable of being installed on conventional type aerodynamics。
Kofiflow magnetic sex should approach the standard technical parameters of the limit switch:
1 magnetic proximity switch main model description:
Magnetic s&d switch sls-j90-2w/als-200d double sensor
Dc/ac5~240v 300ma 10w
Model customization is available。
2 in case mass, abs plastic is used, containing transparent high-hard electronic sealing and full-filled
3 with a dual position light indicator and a default red led light
4, with two sets of two-line open contact points (opened clarinets)
5 4-chip rvv4*0. 3 cable line with 4 colour line clearly identified
6. Work voltage/flow/power parameter dc/ac5~240v 300ma 10w
7 usable in an environment of 20°c ~70°c
8, complete encapsulation with sealing capability up to ip67
9, by default with a 1 m (approximately equivalent) lead line, which can be set for different lengths
10, optional for air plugs, als-200p4, 4 core aviation plugs
A description of the installation of the kofiflow magnetic hotness near limit switches:
1 the default configuration list may be installed on a conventional-sized (scaled to 30-80/h20mm) aerodynamic implementer
2. Installation of a 30-80/h30mm size at the top of the aerodynamic executor, requiring two separate thickness panels and three card blocks
3, 30-130/h30mm at the top of the aerodynamic executor, requiring a stand with a single stainless steel and three card blocks
Specific sizes can be consulted directly。
Kofiflow magnetic proximity approach limit switching line, kofi:
The magnetic switch uses 4-chip cable lines, 2 groups each in 2 positions, 1 group defaults red line red and blue line blue, 2 groups defaults yellow line yellow and black line black, marked negative and negative, with load equipment attached to the power and not a direct line to the power supply。
Kofiflow magnetic proximity approach limit switch test note:
(b) general unloaded tests: a conventional universal meter (within 9v battery voltage) can be used to hit the diode first, two pairs of the corresponding line sequences, magnetic receptor caps to the corresponding group position, indicating that the product is good if the magnetic switch led light is on。
General load testing: first, determine whether the load equipment is complete or not, then follow the wiring instructions, access the load equipment, position the magnetic receptor cap to the appropriate group, signal, and indicate that the product is good if the magnetic switch led signal is on。
