Gsr ventiltechnik electromagnetic valve 050. 000706 applies to the automobile industry
Gsr ventiltechnik was founded in 1971 in bat oinhausen, northern germany, and initially focused on customized solutions in the field of valve technology. It is now a german manufacturer of electromagnetic valves, aerodynamic valves and special valves, which provide highly reliable and suitable valve solutions covering standard and depth customization requirements。
Main products:
Gsr ventiltechnik valve
Gsr ventiltechnik emp
Gsr ventiltechnik control valve
Gsr ventiltechnik controller

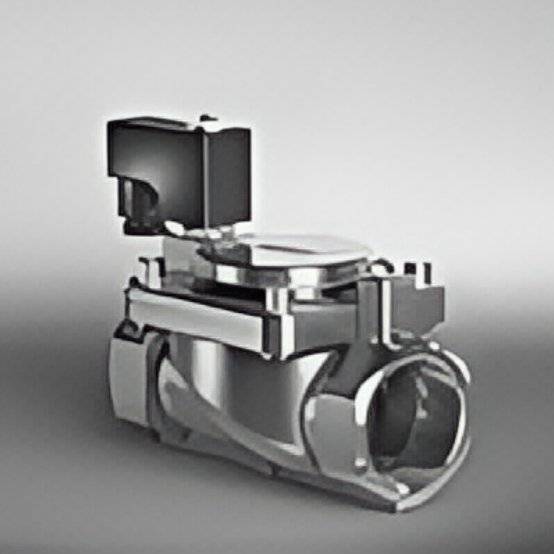

Gsr ventiltechnik emp 050. 000706
050. 000706 is the two generic closed electromagnetic valves in the gsr classic series designed for high pressure, high temperature and corrosive media. Valves are made of stainless steel 1. 4408 precision casts, capable of reliable release within 0-16 bar working pressure, medium temperature - 30 °c + 180 °c, applicable to water, steam, oil, corrosive gases, etc。
Valves: cf8m stainless steel, antichloride point erosion
Valve core/valve: 1. 4104 + ptfe compound seal, zero leakage level vi
Spring re-entry: haq alloy c-276, long-term high temperature undefended
Seals: fkm (specify), with the option epdm or fffkm strong acid
Loop: epoxy containment, protection level ip65, optional ex d iic t6 implosion。
Cyclical power: 8 w, ac 230 v time 15 va at dc 12/24 v
Response time: open valve < 100 ms, close valve < 80 ms (air medium)
Continuous working system ed 100 %, self-enabled wiring wave-resistant diodes。
Cal. Dn 6 mm, cv value 0. 5
The design follows the hg/t 20507-2014 lead structure and the low pressure differential is fully open。
Apply
Automotive heat management: rapid cut-off of engine cooling fluid, battery pack cooling circuits
Chemical installations: corrosive media sampling, emergency response emissions
Medical equipment: cip/sip cleaning pipe, consistent with fda certified sealed material。
Example of model:
Gsr ventiltechnik emp 050. 000706
Gsr ventiltechnik emp 050. 001202
Gsr ventiltechnik emp 050. 001324
Gsr ventiltechnik emp 050. 00119
Gsr ventiltechnik emp 072. 000479
Gsr ventiltechnik emp 040. 001426
Gsr ventiltechnik electromagnetic valve 063. 001210
Gsr ventiltechnik electromagnetic valve 063. 001371
Gsr ventiltechnik emp 050. 002562
Gsr ventiltechnik emp 043. 006142
Gsr ventiltechnik emp 055. 0000223
Gsr ventiltechnik emp 050. 002268
Gsr ventiltechnik emp 065. 0000467
Gsr ventiltechnik emp 040. 002484
Gsr ventiltechnik emp 052. 000560
Gsr ventiltechnik emp 052. 000484
