A desktop driller is a metal cutting machine, a numerically controlled processing equipment, styles and functions similar to those of a processing centre, only smaller than the processing centre, with a general itinerary of no more than 800*400, which, although capable of processing, does not allow for heavy load processing, such as strong cutting, mainly for drilling and twirl。

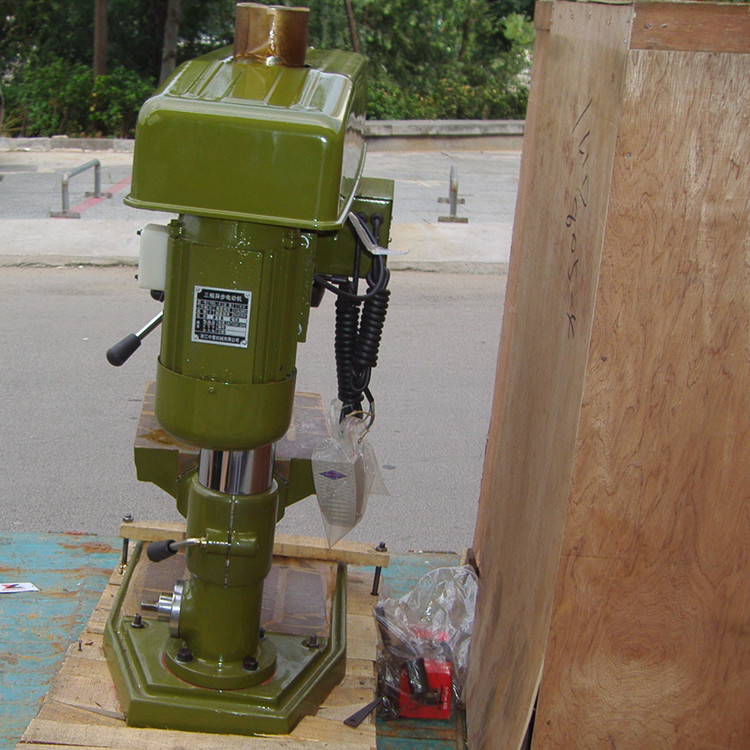

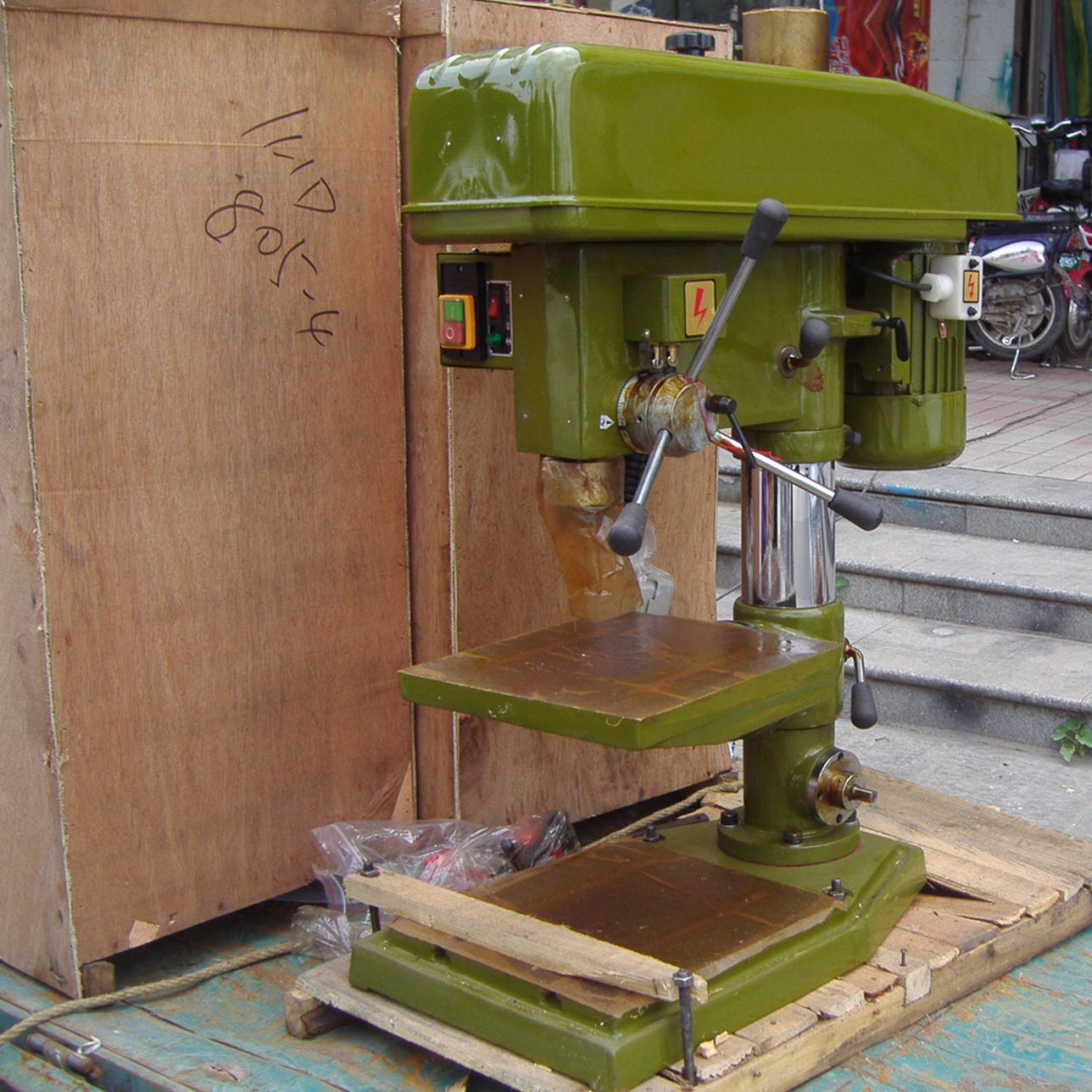

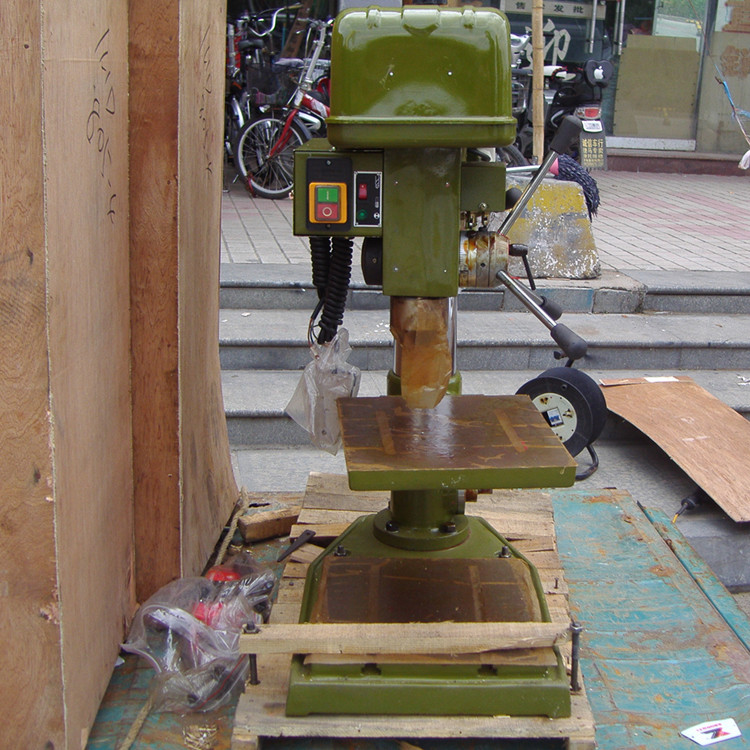

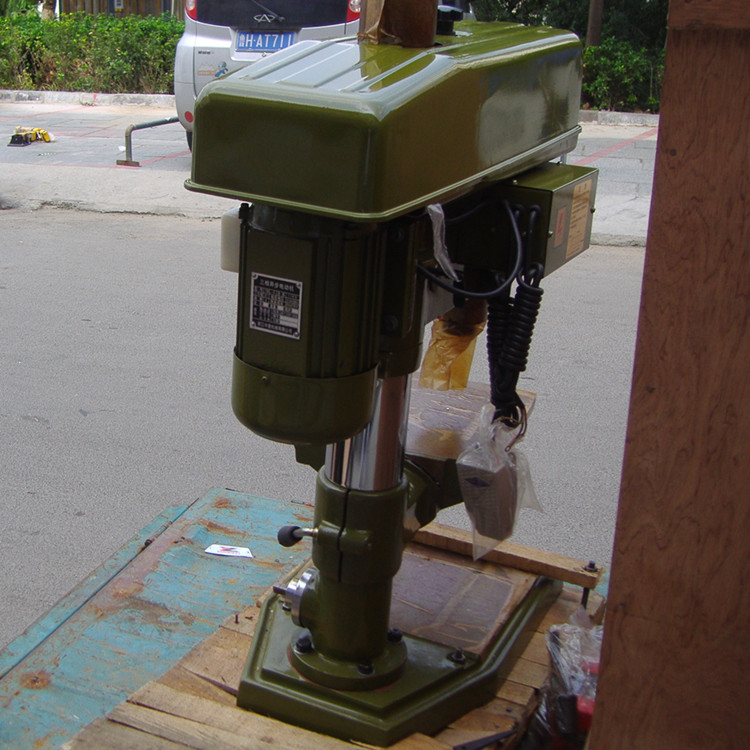

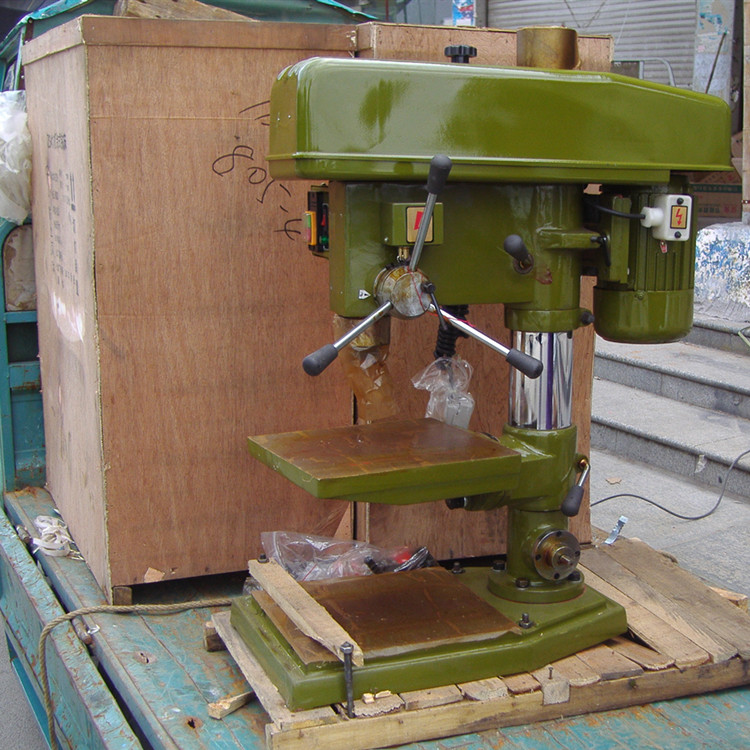

Detailed parameters for the zs4125 rig:
D:25/t:m24/m20
Cylinder diameter 58mm
Main axis 125 mm
Main axle centre to pillar backbone distance 240 mm
Main axis to working table distance 397/367 mm
Distance from main axis to bottom table 560/630mm
Main axis cone mt2/mt3
Main axle rotation range 290-2150r/min
Number of main axle rotation speeds
Workspace dimension 280 x 300 mm
Base size 590 x 375 mm
Total height 1127mm
Packaging size 88 x 54 x 105 cm
Electric motor 0. 75/1 kw
Gross/net weight
