Electromagnetic change valve
An electromagnetic switching valve (solenoid) is used for the “open” or “closed” of aerodynamic valves. Electromagnetic valves of the 4m series are installed directly on the side of the aerodynamic executor and need not be connected with pipes. The instrument control system requires the choice of single or double control。
Electromagnetic conversion valve main product characteristics:
1 internal pilot structure
2 gliding column structure, good sealing and responsive
3, two-headed electromagnetic valves with memory functions
4 the interior is processed with special processes, with low friction resistance, low initiation pressure and long operational life
5 does not require refueling and lubrication。
Electromagnetic valves of the 6,4m series are installed in a side panel format and can be used directly with the implementing element
7 with manual devices to facilitate the installation of debugging
8. Multiple standard voltage levels are available
Electromagnetic conversion valve specifications and electrical performance parameters
1 main model description
4m series plate-based electromagnetic valves: single charge (4m210-8, 4m310-08/10), double charge (4m320-8, 4m320-08/10), etc.
4v series vertical electromagnetic valves: single charge (4v210-8, 4v310-10, 4v410-15), double charge (4m220-8, 4m320-10), etc.
3v series vertical electromagnetic valves: monoelectric (3v210-8, 3v310-10) etc.
2. Work media: compressed air
3, take-over calibre: pt1/8, pt1/4, pt3/8
Number of positions: two five and two three
5. Use pressure range: 0. 15 ~ 0. 8 mpa (21-114 psi)
6 standard voltage: dc24v, ac220v, ac110v, ac24v, ac36v, etc.

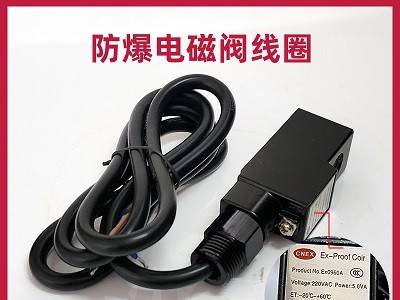

Main parameters of the electromagnetic valve ring used for the electromagnetic conversion valve
Mpm interpolation precision electromagnetic valve coil specification parameters (inner hole 9mm):
Dc24v 3. 0w voltage range: dc21. 6v~26. 4v 100% ed ip65。
Ac220v 6. 0va voltage range: ac187v ~253v 50/60hz 100% ed ip65。
Evi7/9 220v ac 5. 5va 25ma 100% ed ip65。
Evi7/9 24v dc 4. 8w 100%ed ip65。
Sdpc dc24v 3. 0w voltage range: dc21. 6v~26. 4v 100% ed ip65。
Sdpc ac 220v 3. 5va voltage range: ac187v ~ 253v 50/60hz 100% ed ip65。
Electromagnetic conversion to valve series products (emp keys):
Electromagnetic valves, electromagnetic conversion valves, two five-ton electromagnetic valves, two three-digit electromagnetic valves, gaseous electromagnetic valves, aerodynamic electromagnetic valves, single-electrically controlled electromagnetic valves, two-electrically controlled electromagnetic valves, electromagnetic valves, generic electromagnetic valves, etc。
