Scope of application:

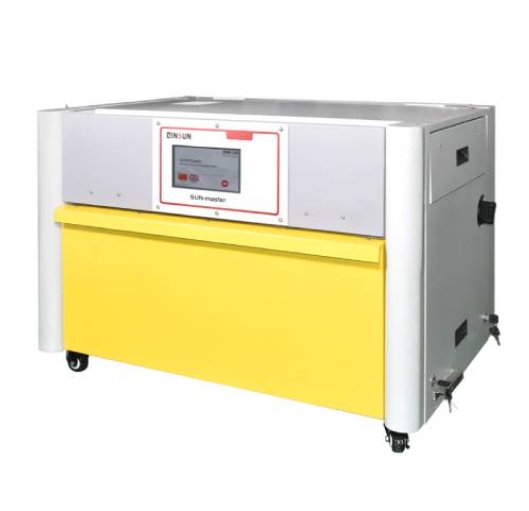

The sun-master desktop light aging test box is used extensively for packaging, cosmetics, pharmaceuticals and biomedicine, printing ink, industrial fabrics and surface coverings, agrochemicals, building sealants, powder coating of dental material. This applies to the performance verification of new products, quality control in the production sector, third-party testing agencies, product performance validation laboratories, quality technology monitoring units, etc., for measuring material resistance。
Meet the criteria:
Gb/t 22771 printing technology. Print and printing ink filter arc lamps for light tolerance
Gb/t 8427 textile colour validity test optical synthetic validity: arc
Part 2 of the gb/t 16422. 2 plastic laboratory photo-source exposure test method: arc lamps
Standard operating protocol for astm g155 non-metal materials exposed to arc-ray instrument
Astm d6695-01 standard operating procedure for arc exposure of paints and associated coatings
Standard practice for exposure of photodegradable plastics in arc-type exposure instrument
Standard test methods for relative photometric and climate-resilient assessment for astm d3424 printed materials
Iso 4049 scientific polymer base filling, repair and adhesive material
Iso 4892-1 plastics - laboratory photo-exposure method - part 1: general guidance and requirements
Iso 4892-2 plastics. Laboratory light source exposure method. Part 2: arc lamps
Measurement of colour stability of iso 7491 dental material
Iso 11431 architectural and civil engineering sealants are determined by the adhesiveness and internal fusion properties of the sealant following thermal, water and glass perceiving artificial light exposure
Iso 10977 colour film and photo image stabilization method for photo wash
Technical parameters:
Control mode automatically
Lamp power 1700 w
One hundred and two
Lights can have a useful life of over 1,500 hours
420 nm/300-800 nm and 340 nm lamps for irradiation monitoring, quantitative closed ring control

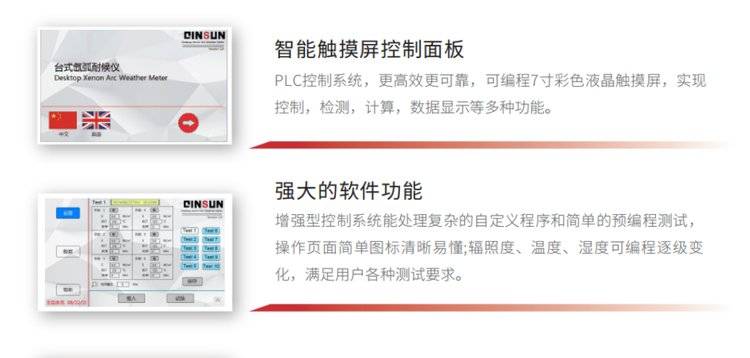

English in the interface
Blackboard temperature setting range 45-100°c
Blackboard temperature control accuracy ± 2°c
Black mark temperature set range 45-95°c
Black mark temperature control accuracy ± 2°c
Box temperature and blackboard temperature control via fan
Power 220v 50hz
Appearance size (long x width x high) 100 cm x 70 cm x 70 cm
Product characteristics:
Advantage characteristics:
1. The use of arc lamps that simulate a full-sun spectrum to reproduce destructive light waves in different environments can provide a corresponding basis for environmental modelling and acceleration tests for scientific research, product development and quality control。
2. The test box allows test samples to be exposed to the equivalent of solar light at noon in the summer, 24 hours a day and so on. Test samples can accelerate ageing。
3. The thorium light source, with a more realistic and optimal simulation of the full spectrum of solar light, ensures comparability and recurrence of test data from stable sources。
4. Full automatic control of the irradiated energy (with a more precise and stable solar eye control system) will automatically compensate for changes in the irradiated energy caused by the ageing of the lamps and any other cause。

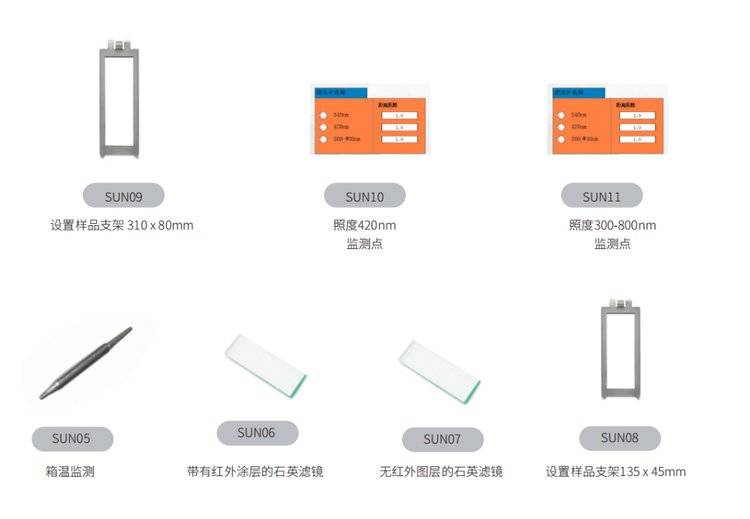

Parts and consumables:
