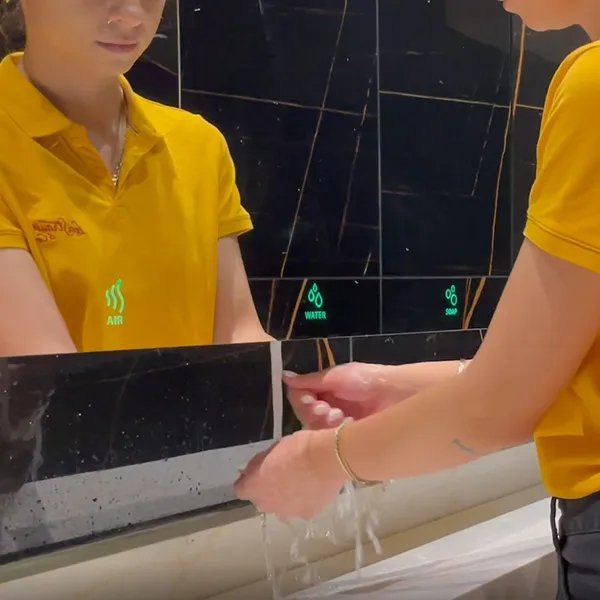

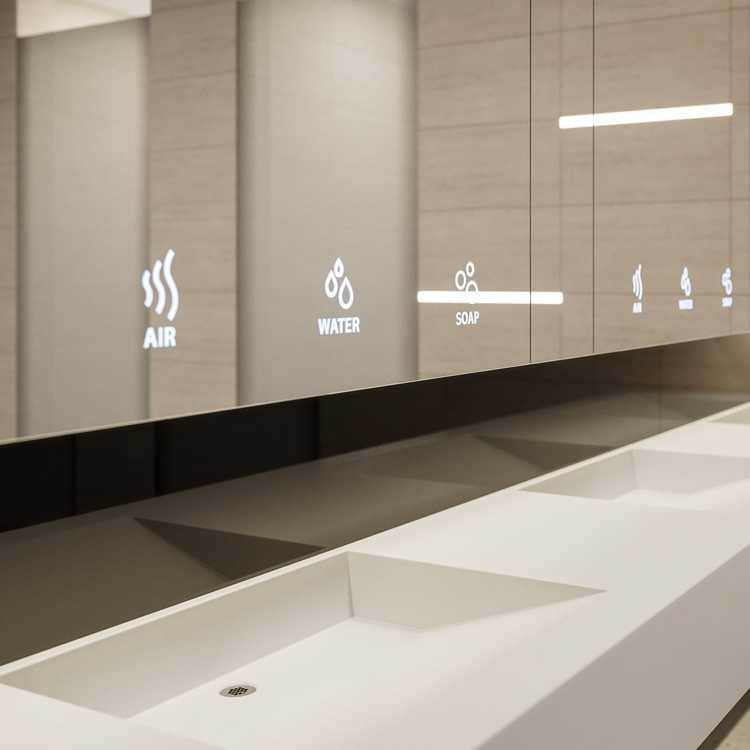

Duten taps, touch free, can be installed behind the mirror
Electronic taps for pre-filled or cold water. Put it behind the mirror. The flow is set at 1. 89 litres/minute. The distance between the sensor and the bottom of the sink shall be at least 300 mm. The remote control function is optional and provides a variety of programming options, such as flow time, regular " antibacterial " rinsing, distance detection, temporary locking, etc。
1-year warranty。
Dimension: high 120 x width 90 x depth 120 mm
R320-s las stainless steel panel
Characteristics
Surface treatment (water mouths, stainless steel (s) / chromium plating brass (b)
Size: 90 x high 120 x deep 120 mm
Minimal/maximum water intake pressure 0. 5 - 8 bar
1. 89 l/m
Pca jet sprayer 1. 89 l/m
Detected area auto-regulated (through remote control)
Minimum detection range 80 mm
Maximum detection range 300 mm
Security off. 90 seconds
(can be reduced - via remote control)
Water intake 1 water intake for cold or pre-filled water
Maximum temperature 70°c
Power 9v adapter - cable length 5m
Ip67 battery box - cable length 0. 50m - contains battery
6 x 1. 5 aa alkali cell
Length of cable at valve exit 0. 05m (extended)
Soft length 0. 65m
2 years quality assurance
Optional accessories
Rsp06001004 power distributor with 2 path output
Rsp06001005 power distributor with 3-way output
Rsp 060090161 1 mi parent extended cable
Rsp 06009021 3 mems parent extension line
Rsp0710005 electronic water tap remote control
Rsp06530013 230/12v connector box with power for up to 10 taps
Rsp0600086 public-end output cable
Install information

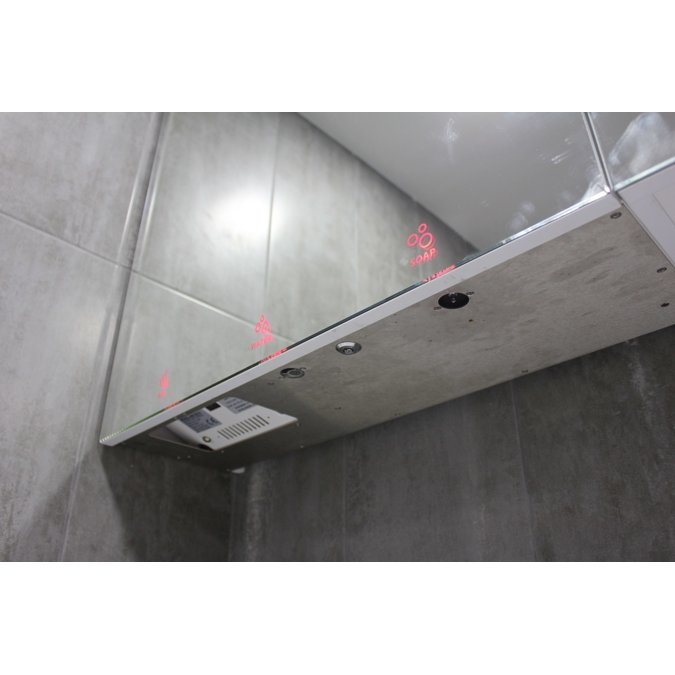

The open hole r390 can be installed in the cupboard above the washpan. A 60 mm wide and 40 mm deep hole for the installation of nozzles and infrared detectors. The maximum thickness of the bottom of the cupboard should be 20 mm。
Before you install the tap, you flush the pipes and remove the dirt from them。
In order to avoid reflectivity problems, do not install sensors on the positive side of other water tap/sap sensors, other infrared equipment or reflecting surfaces. This should also be taken into account when selecting other accessories. The choice of other fittings must also be taken into account, such as surface treatment of sewers, which may reflect light and interfere with sensors. Particular attention must also be paid to the location of the lamps in the interior, especially the equipment sensors in the lower direction。
A minimum distance of 00 mm should be maintained between the sensor and the base of the washbasin。
Maintenance
In order to optimize the maintenance of your duten tap, use soft cotton cloths and soak them as necessary。
Do not use products containing hydrochloric acid, soyate, acetic acid or chlorine-containing bleaching products。
Do not use chlorine-containing bleach. The use of corrosive products or tools (cleaning fluids, rinse sponges, corrosive dishwashing sponges, stainless steel balls, etc.) should be avoided。
