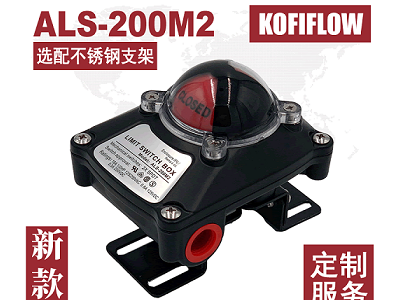

Als series valve limit switch box
The als series valve limit switch box (responder) is a remote transmission valve open or off-site signal transmission device with a visual location indicator that can be rapidly adjusted to the internal cavity position to achieve a signal feedback at different locations, with the namu standard set-up and installed directly on the aerodynamic implementer. The series limit switch box uses a compact aluminium shell, with a robust outer design, with a double-line interface, a grinding copper condom in the shell, a detached bolt design, and a protection level of ip67。
Standard technical parameters for valve limit switches in the als series:
1. Description of the main model of the limit switch box:
Standard mechanical model description: lit switch box mechanic switchs posiition moNitoring switch。
Als-200m2 mechanical: an internal 2 sets of spdt single-slash mechanical micro-switches (a standing no, a constant closed nc, a common point com per group)
Als-200m3 mechanical formula: an internal 2-set spst single-to-sling mechanical micro-switch (a standing no and a common point com per group)
Mechanical micro-switches may select a national product card or a micro-switch for a well-known brand (taiwan zingear, honiwelhoneywell, omronomron, etc.)
Standard emparotype description: limit switcch box posiition moNitoring switch
Proximity switzerland
Als-200pa proximity: the built-in 2 sets of telemetry proximity switches (two-line closed nc/lus no, three-line npn/pnp-no/nc, optional working voltage 10-30 vdc common and 8. 2 vdc namur-ben approach switches), with special voltages providing customized services)
(b) electronic proximity switch brands may select a national product card or a well-known brand switch (befoppepper-fuchs, turk, ifomenifm, honiwelhoneywell, omronomron, etc.)
Als-200pp (selection with forpepper-fuchs nj2-v3-n namu exiact6 8. 2v)
Als-200pp (selection plus phopepperl-fuch nbb3-v3-z4 5-60vdc/24vdc)
Standard paragraph magnetic proximity model description:
Als-200qa magnetic sensitivity approachation: the built-in 2 sets of magnetic sensitivity approaching switches (optional 2-line permanent nc/run open no, working voltage 5~220 vdc/ac, non-sourced dry point)
2 the shell is treated with ablution metal and surface epoxy polyester laminated。
3, rounded cams and molars combined, can be rotated at 360 with valves and marked red at the time of installation
(d) 4, with an 8-position connection end, with a numerical number clearly visible (as opposed to a wiring map) and an electromagnetic valve link empty
5. Mechanical micro-movement switch contact points may be selected for the purple, silver, and gold contact types, and close-to-use switches for electrons and magnetics, etc.
6 for voltage currents: max 16gpa 1/2hp 250vdc/ac; ac: 250v 3a, 125v 5a dc: 250v 0. 2a, 125v 0. 4a, 30v 4a, 8v 5a
7. All sealed positions are selected for o-rings up to ip67 protection level
8. Applicable ambient temperature: 20°c ~ 60°c (special temperature can provide customized services)
9, 2-g1/2, 2-m20*1. 5, 2-npt1/2, etc.
10, switch position can be clearly identified by indicator (open/closed)
11, activity-composite mounts of 30-80/130-h20/h30mm, with the option of carbon steel or rust steel。
12. Pack a separate box with a certificate of certification and instructions, each with a waterproof head and a waterproof cover。
13, services such as product labelling and shell colours could be provided
